Throttle Cable Adjustment

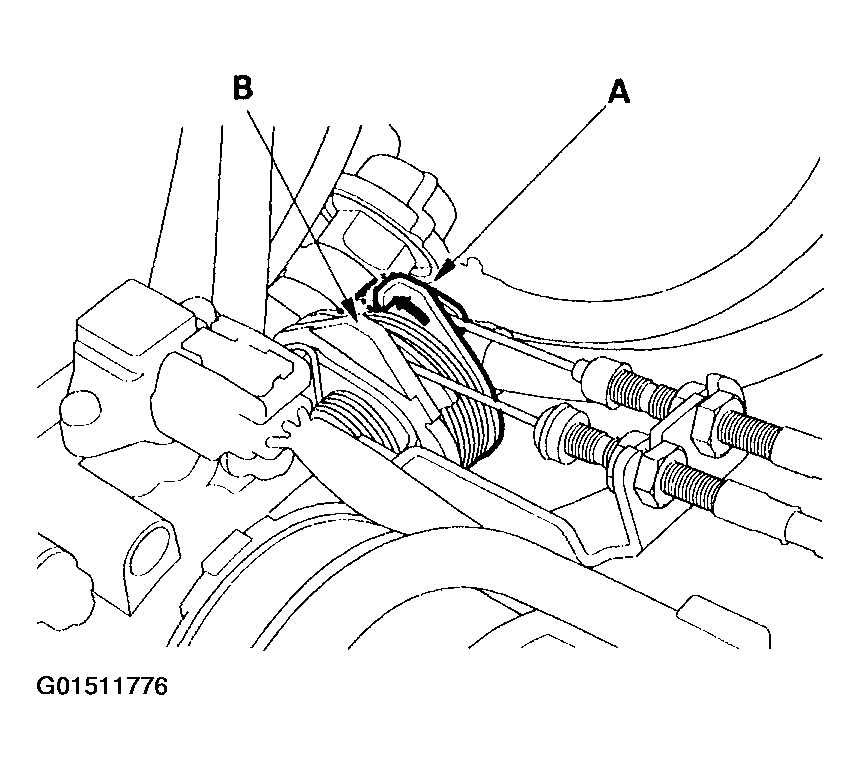

- Hold the throttle link (A) to the throttle lever (B). There should be no clearance.
Courtesy of AMERICAN HONDA MOTOR CO., INC.

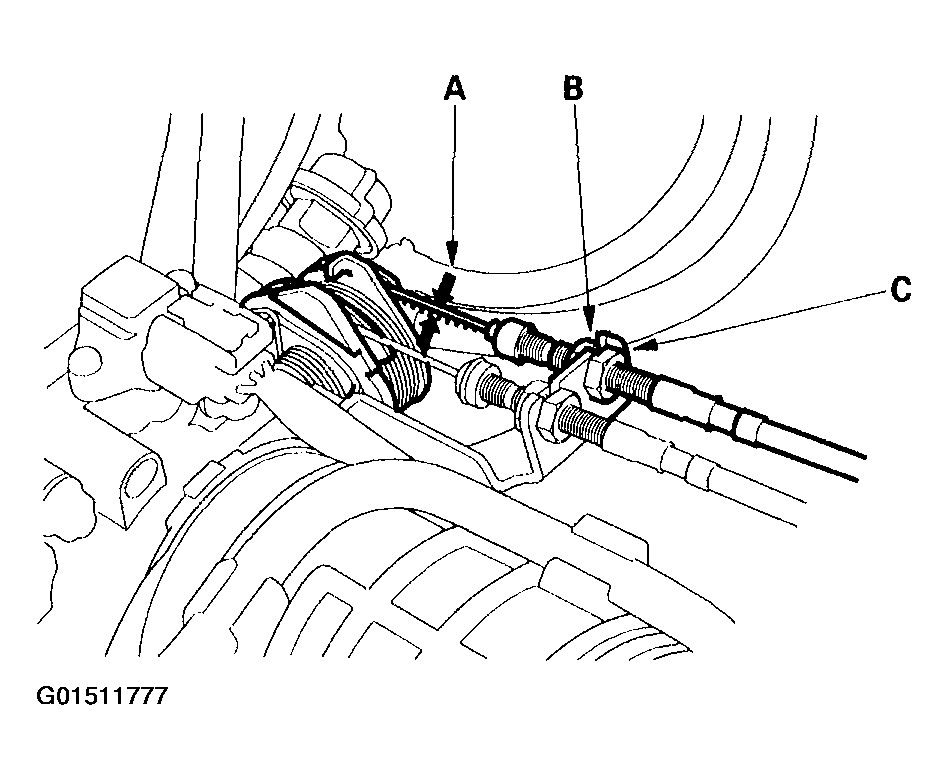

- Check cable free play at the throttle linkage. Cable free play (A) should be 10-12 mm (3/8-1/2 in.).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- If free play is not within specs (10-12 mm, 3/8-1/2 in.), loosen the locknut (B), turn the adjusting nut (C) until the free play is as specified, then retighten the locknut.
- With the cable properly adjusted, check the throttle valve to be sure it opens fully when you push the accelerator pedal to the floor. Also check the throttle valve to be sure it returns to the idle position whenever you release the accelerator pedal.
