Component Location Index

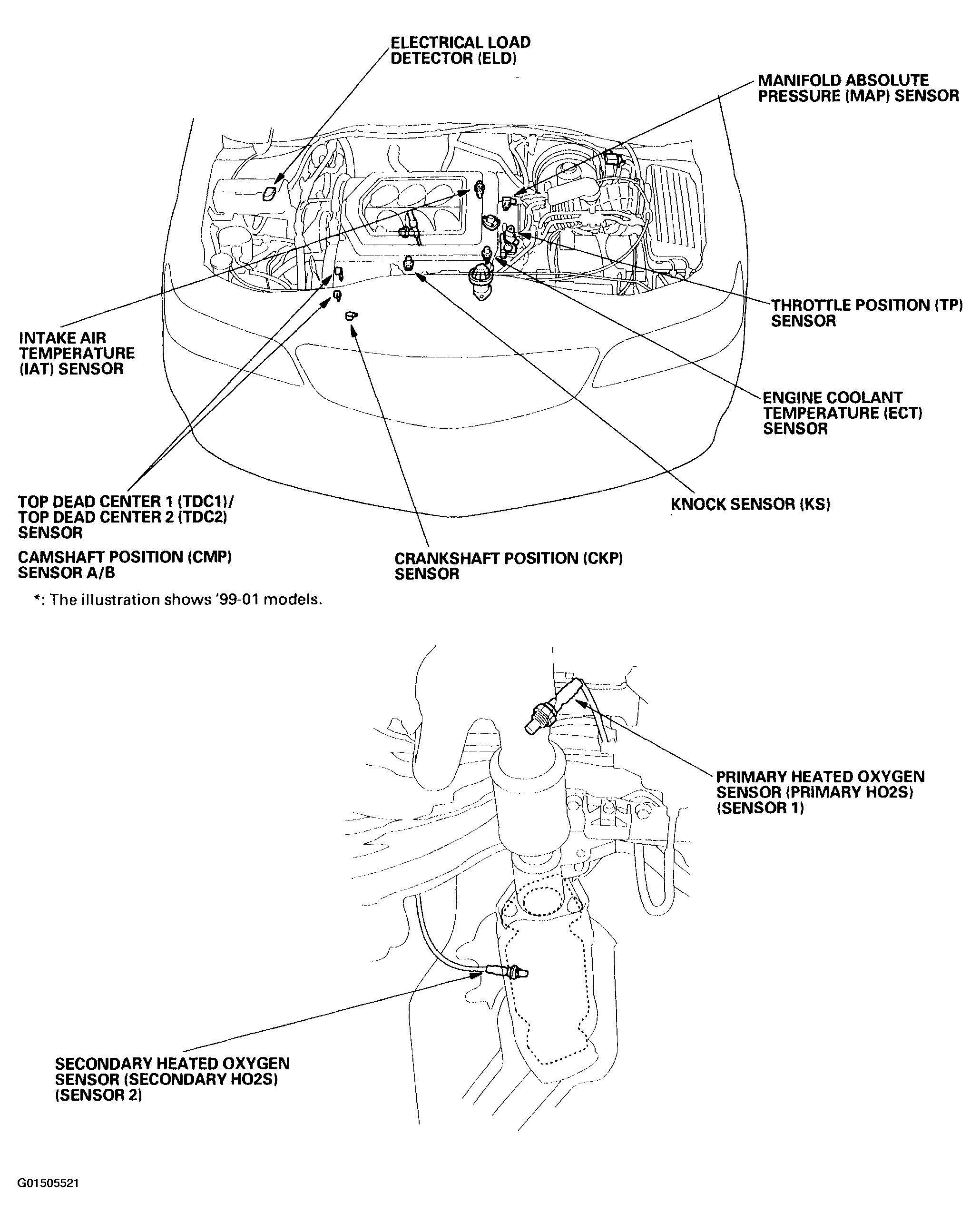

Fig 1: Identifying PGM-FI System
Courtesy of AMERICAN HONDA MOTOR CO., INC.

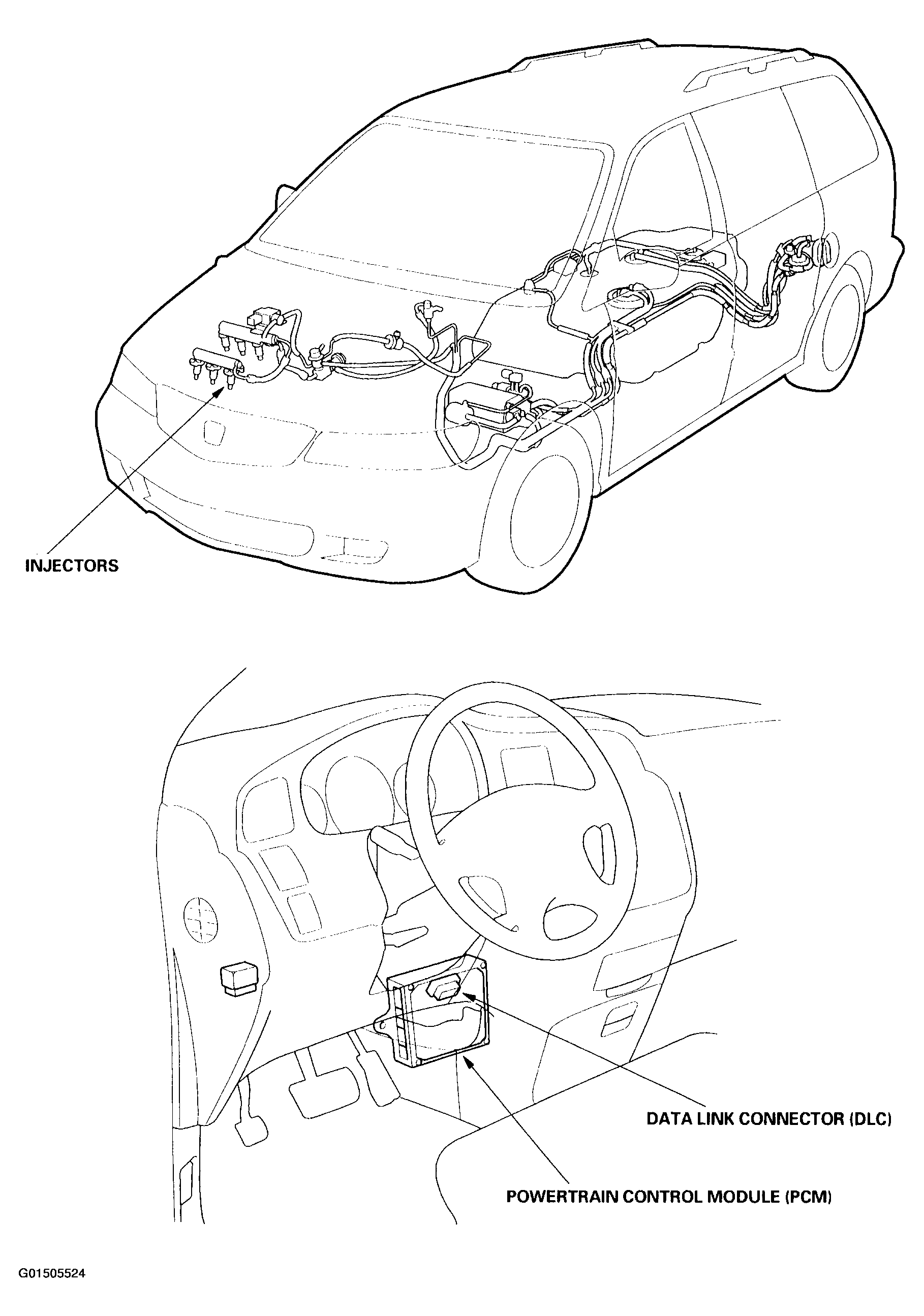

Fig 2: Identifying Injectors ('99-00 models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

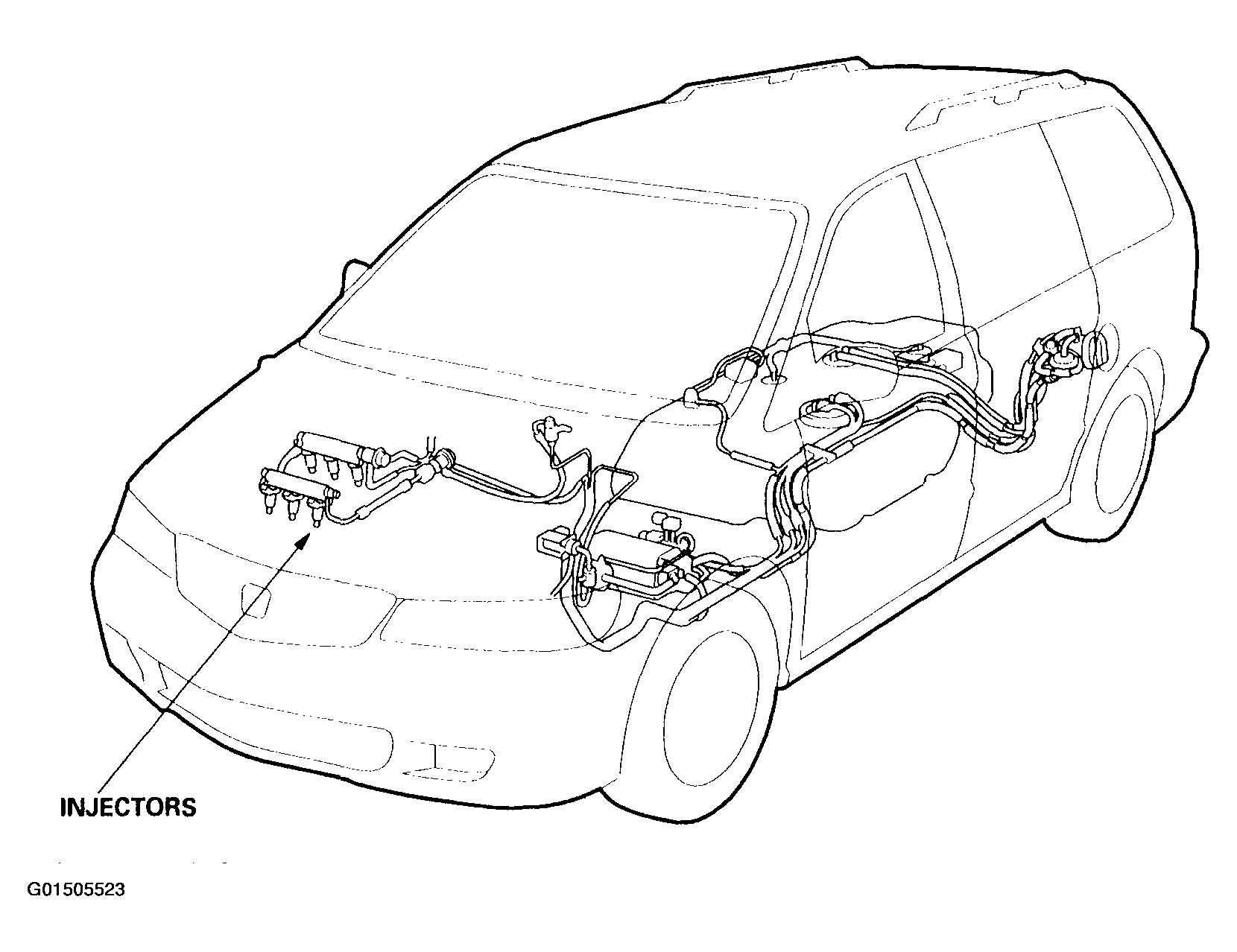

Fig 3: Identifying Injectors ('01 models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 4: Identifying Injectors ('02-04 models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
