Park Pin Switch Test

SRS components are located in this area. Review the SRS component locations , and the precautions and procedures in appropriate AIR BAG article under RESTRAINTS before performing repairs or service.

1. Remove the steering column covers (see Steering Column Removal & Installation ).
2. Disconnect the park pin switch connector.
3. Shift the shift lever into the P position, then check for continuity between the No. 1 and No. 3 terminals. There should be no continuity.

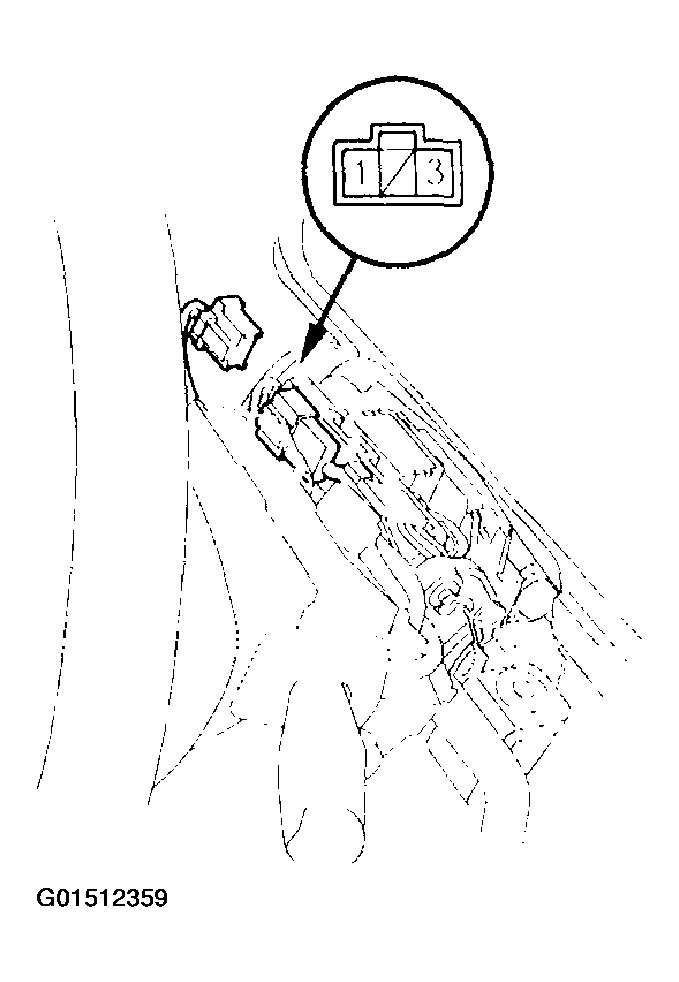

   Fig 1: Checking For Continuity Between No. 1 & No. 3 Terminals Of Park Pin Switch Connector


4. Shift the shift lever out of the P position, and check for continuity between the terminals in step 3. There should be continuity.
5. If the park pin switch is faulty, replace the control bracket assembly. (The park pin switch is not available separately.)
