Shift Lock Solenoid Test

SRS components are located in this area. Review the SRS component locations , and the precautions and procedures in appropriate AIR BAG article under RESTRAINTS before performing repairs or service.

1. Remove the steering column upper cover (see Steering Column Removal & Installation ).
2. Disconnect the shift lock solenoid 2P connector.

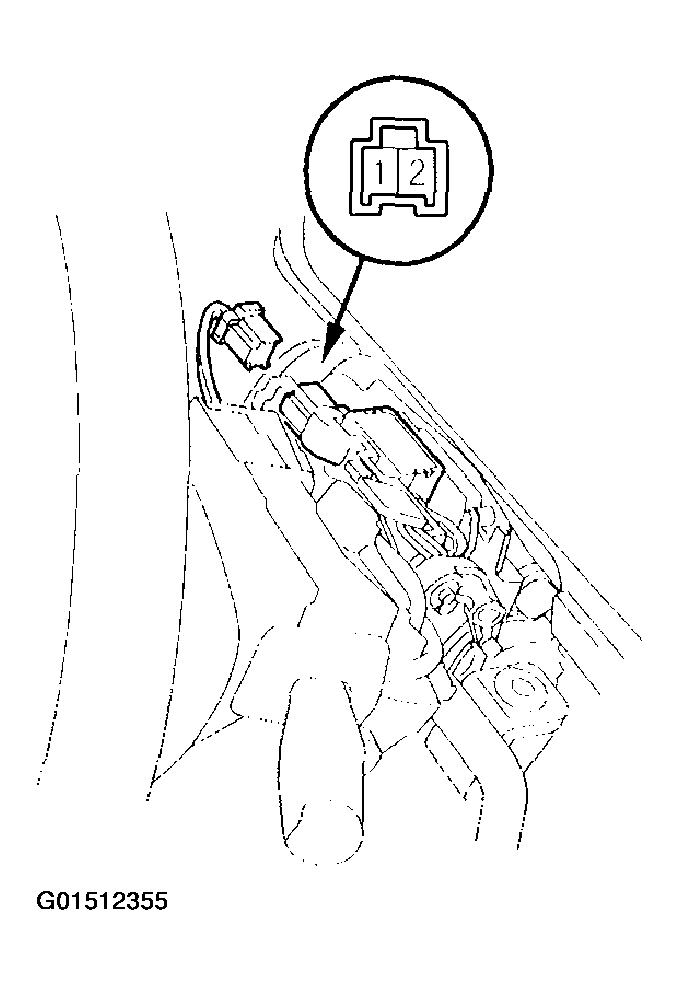

   Fig 1: Disconnecting Shift Lock Solenoid 2P Connector


NOTE: Do not connect power to the No. 2 terminal (reverse polarity) or you will damage the diode inside the solenoid.
3. Connect the No. 1 terminal of the shift lock solenoid connector to the battery positive terminal, and connect the No. 2 terminal to the battery negative terminal.
4. Check that the shift lever can be moved from the P position. Release the battery terminals from the shift lock solenoid connector. Move the shift lever back to the P position, and make sure it locks.
5. Check that the shift lock releases when the release lever is pushed, and check that it locks when the release lever is released.
6. If the solenoid does not work, replace it.
