Bench Testing: Stator

Ensure continuity exists between each pair of leads on stator winding. See Fig 1 . If continuity does not exist, replace generator. Ensure continuity does not exist between any stator winding lead and coil core. If continuity exists, replace generator.

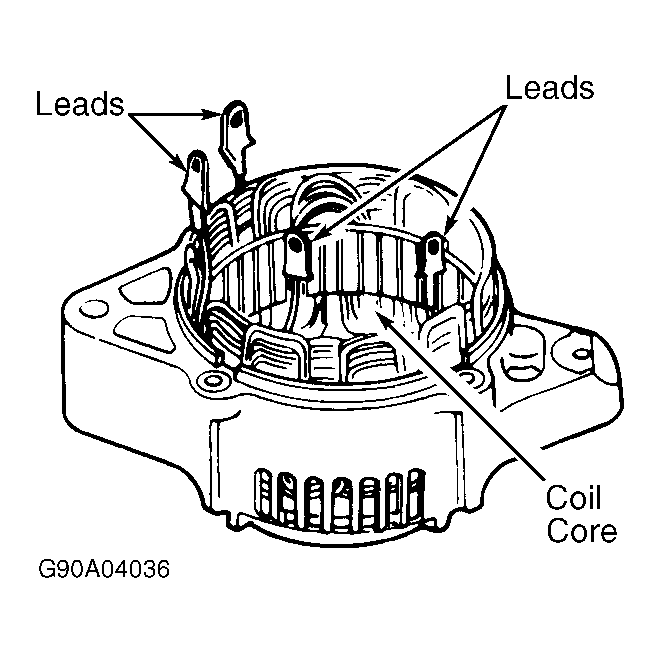

Fig 1: Testing Stator Assembly

Courtesy of AMERICAN HONDA MOTOR CO., INC.
