Ignition Control Module: Notes

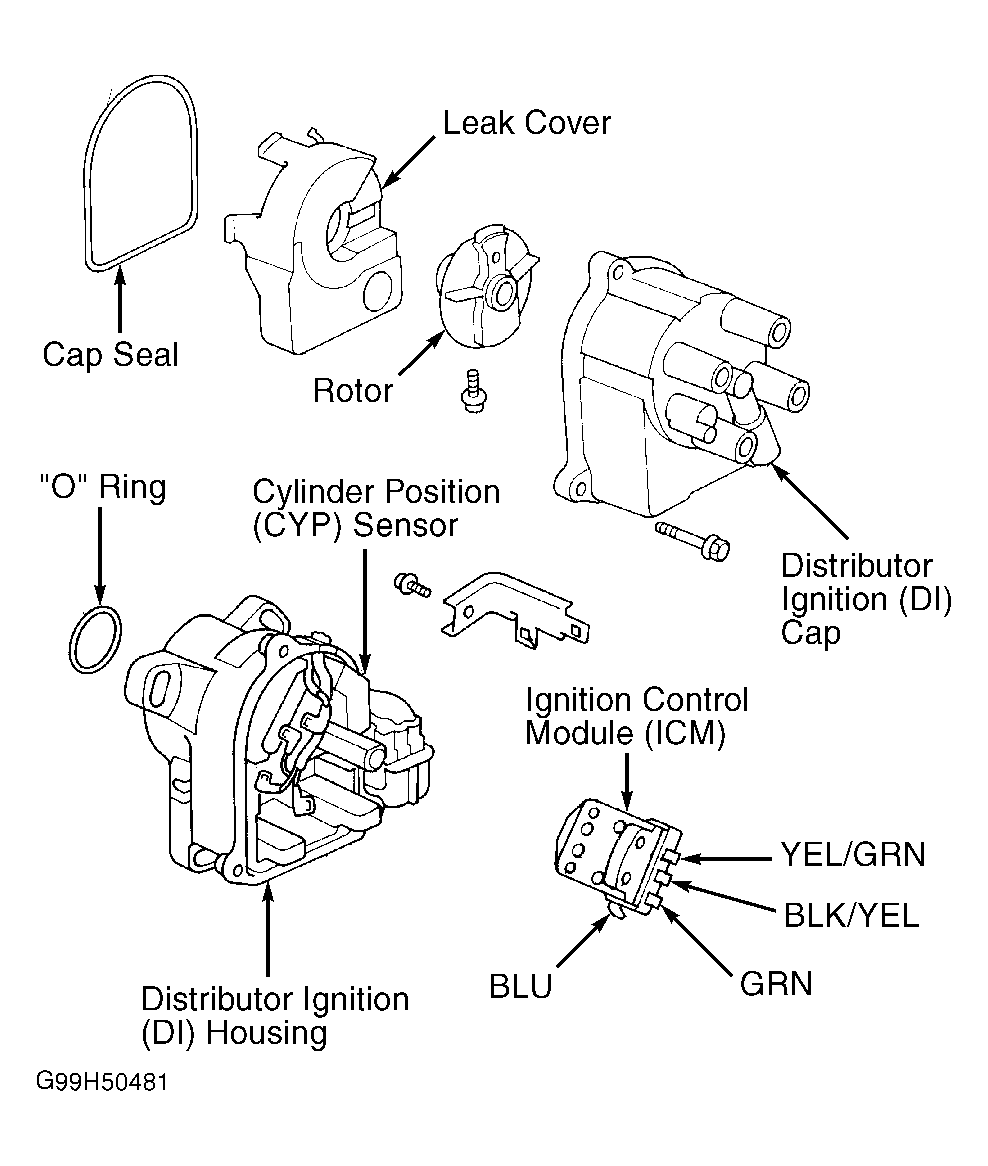

NOTE: If MIL comes on, check for Diagnostic Trouble Codes (DTCs). See appropriate SELF-DIAGNOSTICS article. Before preforming IGNITION CONTROL MODULE INPUT TEST, ensure ignition, fuel and emissions systems are operating properly. Ignition Control Module (ICM) is located in distributor housing. See Figure-Figure .

NOTE: Manufacturer does not provide tests for ICM, they provide a series of input test to ensure rest of system is working properly before replacing components. If all tests check okay, ICM should be replaced.
