Ignition Timing: Prelude

Set parking brake. Start engine and ensure idle speed is correct. See IDLE SPEED & MIXTURE . Turn ignition off. Connect SCS Service Connector (07PAZ-0010100) to 2-pin service check connector (Green/Black wire and Red/White wire) located on right side of center console, behind access cover, next to 16-pin DLC. See Fig 6. Connect tachometer. Run engine at 3000 RPM with no electrical loads (headlights, blower motor, rear defogger, A/C and cooling fan off) and transmission in Park or Neutral. When radiator cooling fan comes on, allow engine to idle.
Connect timing light to No. 1 spark plug wire. Check base ignition timing with no electrical loads. See IGNITION TIMING (DEGREES BTDC - RED MARK @ RPM) table.
Timing marks are located on flywheel/drive plate. Remove rubber plug from window in flywheel/drive plate housing located under distributor. See Fig 11. Timing is controlled by Power Control Module (PCM). If timing is not as specified, replace PCM. See REMOVAL, OVERHAUL & INSTALLATION article. Remove SCS service connector.

IGNITION TIMING (DEGREES BTDC - RED MARK @ RPM)⁽¹⁾

Application

Specification

Accord

2.3L

10-14 @ 650-750

3.0L

8-12 @ 630-730

Civic

B16A2 Engine

⁽²⁾⁽³⁾ 14-18 @ 650-750

A/T Or CVT

⁽²⁾⁽³⁾ 10-14 @ 650-750

M/T

⁽²⁾⁽³⁾ 10-14 @ 620-720

CR-V

⁽³⁾ 14-18 @ 700-800

Odyssey

8-12 @ 680-780

Prelude

⁽³⁾ 13-17 @ 650-750

S2000

3-7 @ 750-850

⁽¹⁾	Check in no-load condition (headlights, blower motor, rear defogger, A/C and cooling fan off) with M/T in neutral or A/T in Neutral or Park.

⁽²⁾	Canadian specification is 10-14 @ 700-800.

⁽³⁾	With SCS service connector (7PAZ-0010100) connected to 2-pin service check connector located under passenger side instrument panel.

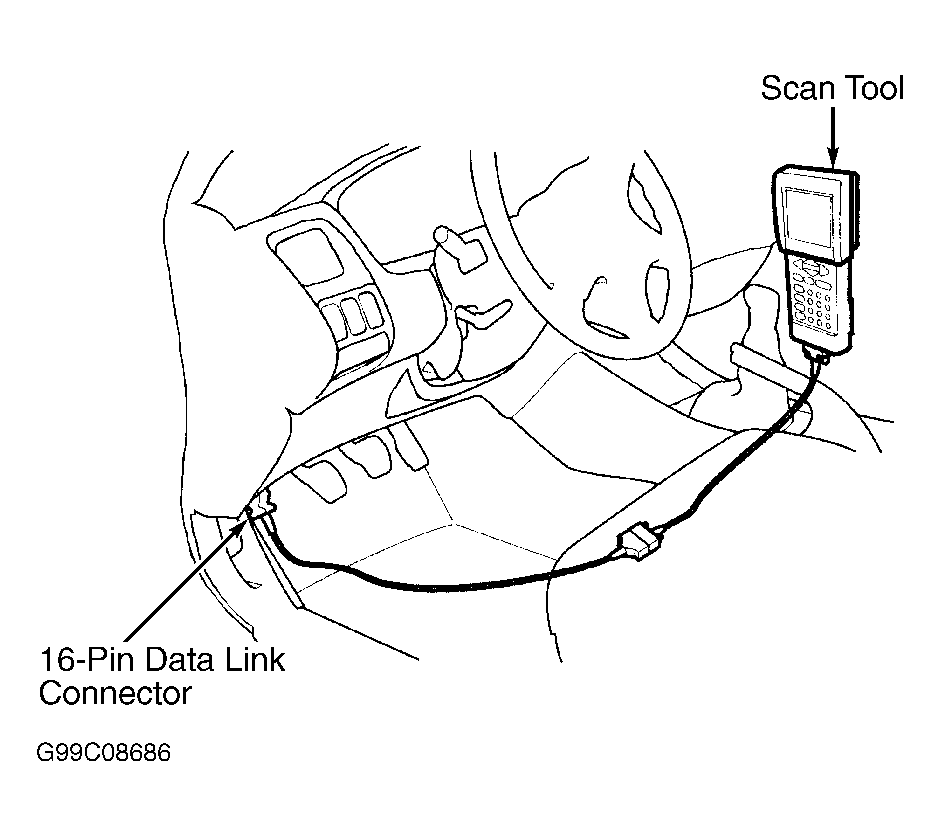

Fig 1: Locating Data Link Connector (Accord)

G99C08686

Courtesy of AMERICAN HONDA MOTOR CO., INC.

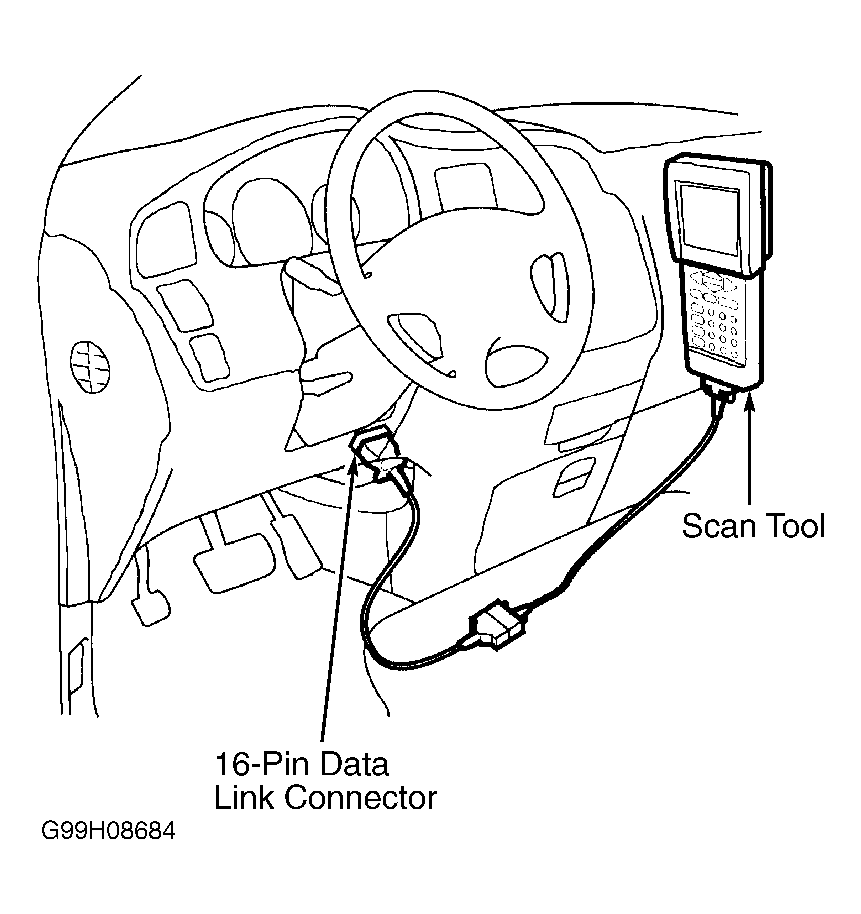

Fig 2: Locating Data Link Connector (Odyssey)

G99H08684

Courtesy of AMERICAN HONDA MOTOR CO., INC.

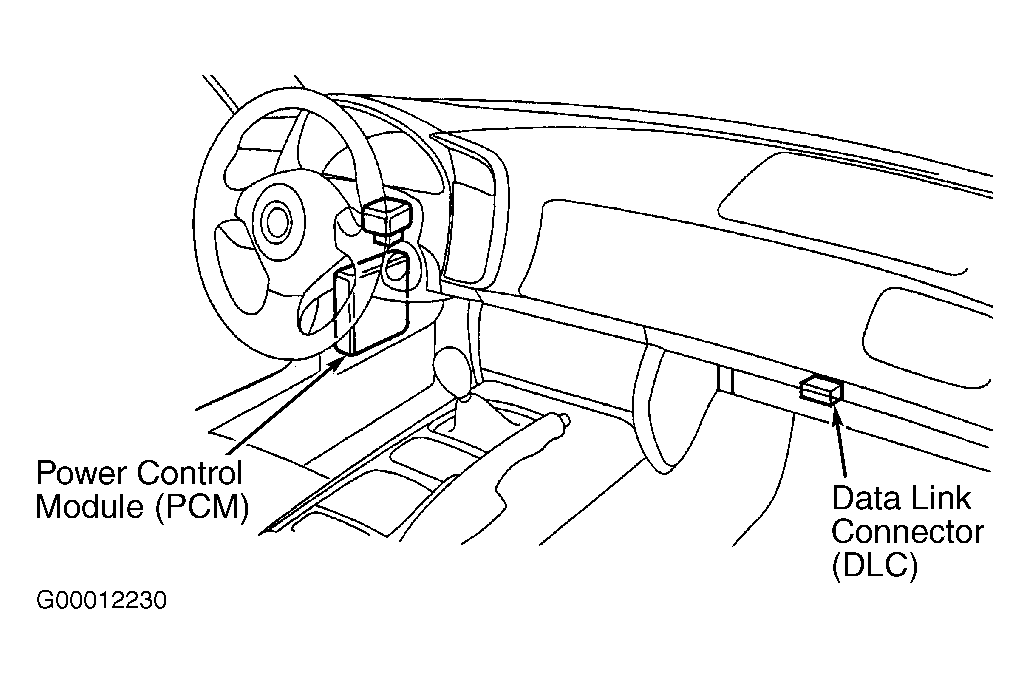

Fig 3: Locating Data Link Connector (S2000)

G00012230

Courtesy of AMERICAN HONDA MOTOR CO., INC.

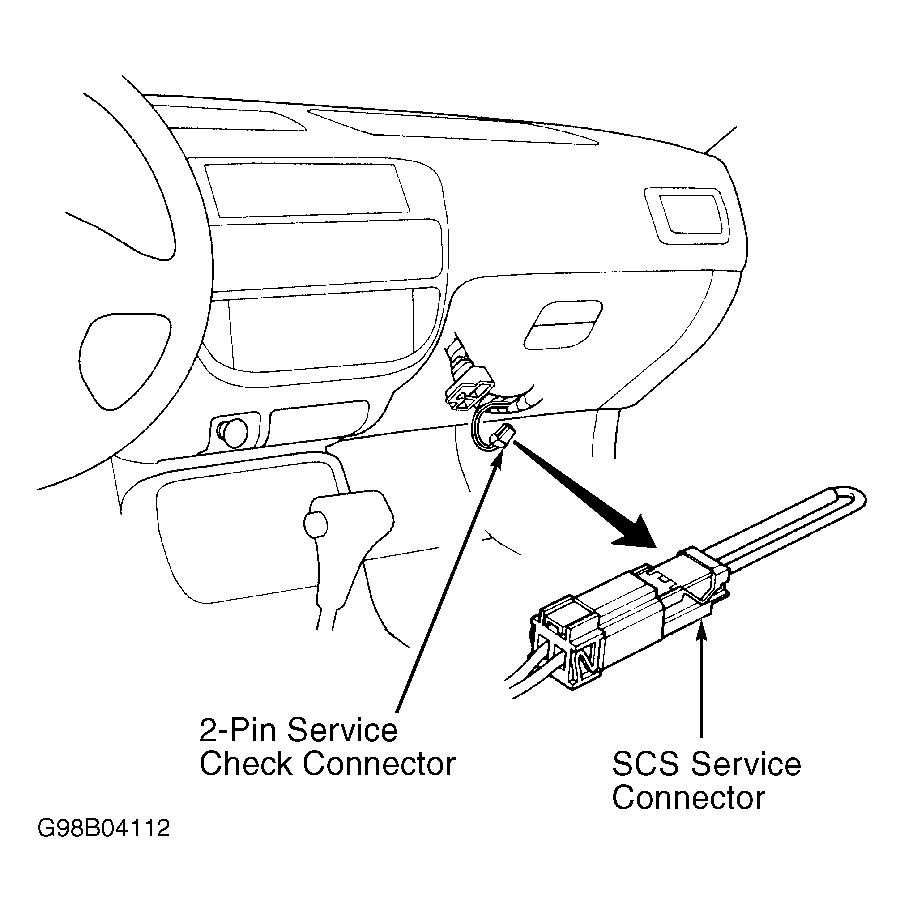

Fig 4: Locating Service Check Connector (Civic)

G98B04112

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 5: Locating Service Check Connector (CR-V)

G95D31255

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 6: Locating Service Check Connector (Prelude)

G99A08685

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 7: Locating Ignition Timing Marks (Accord 2.3L)

G94J44163

Courtesy of AMERICAN HONDA MOTOR CO., INC.

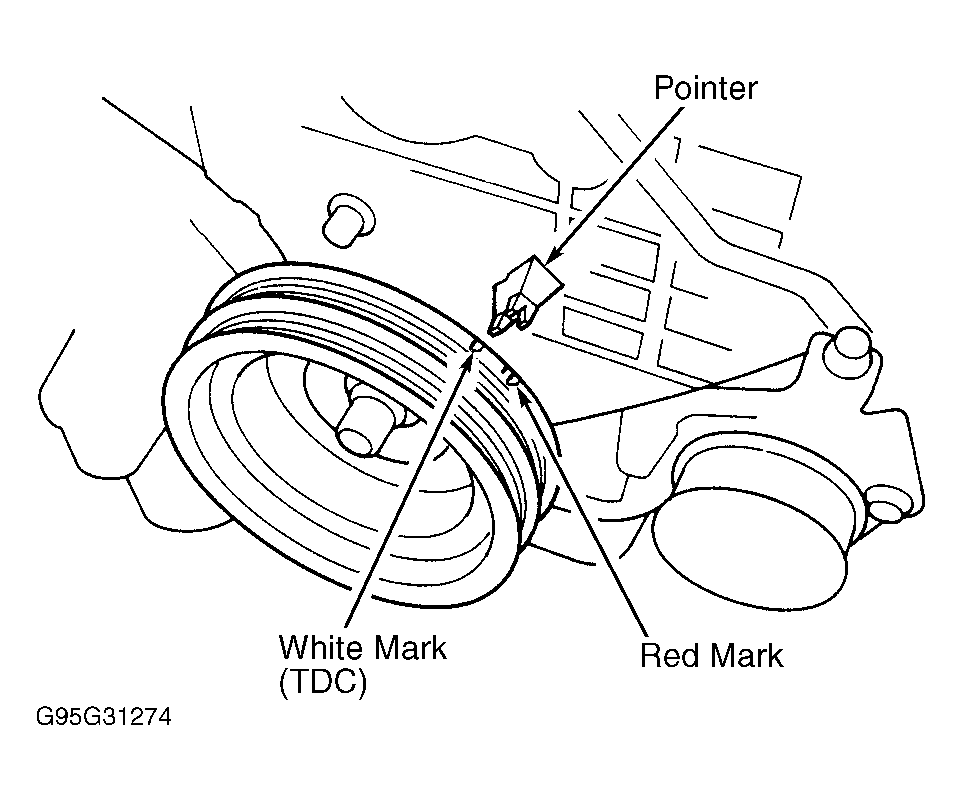

Fig 8: Locating Ignition Timing Marks (Accord 3.0L)

G95G31274

Courtesy of AMERICAN HONDA MOTOR CO., INC.

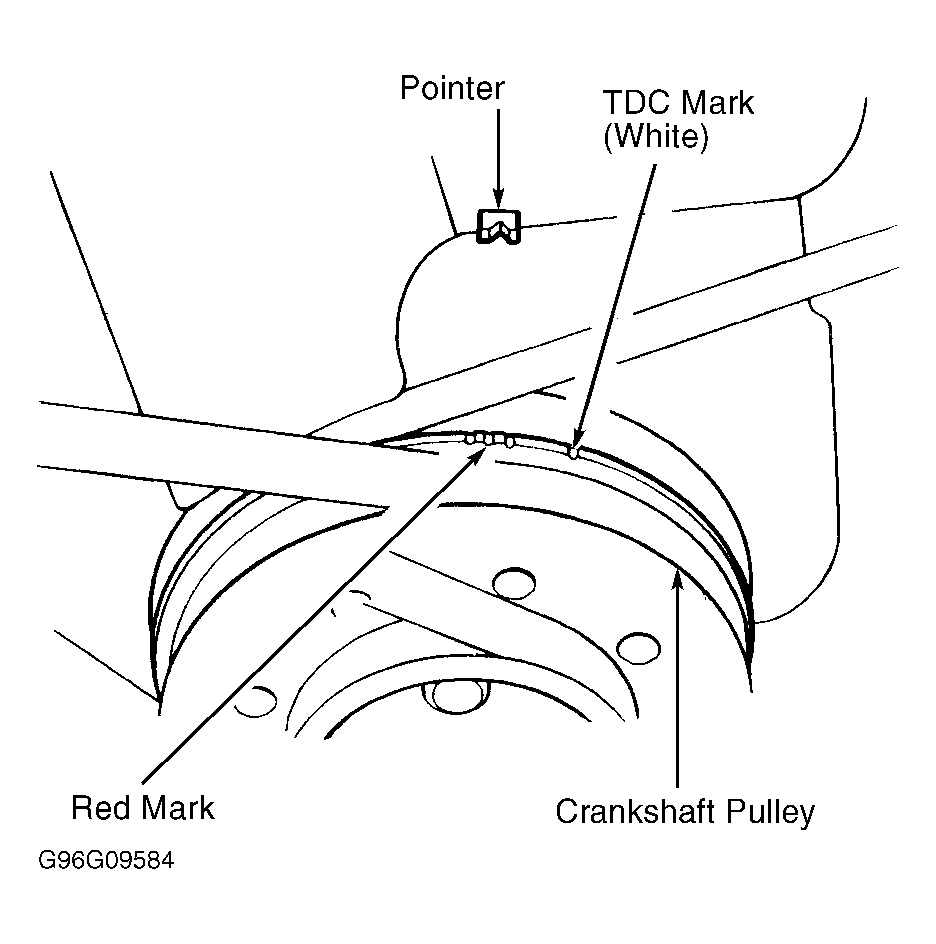

Fig 9: Locating Ignition Timing Marks (Civic & CR-V)

G96G09584

Courtesy of AMERICAN HONDA MOTOR CO., INC.

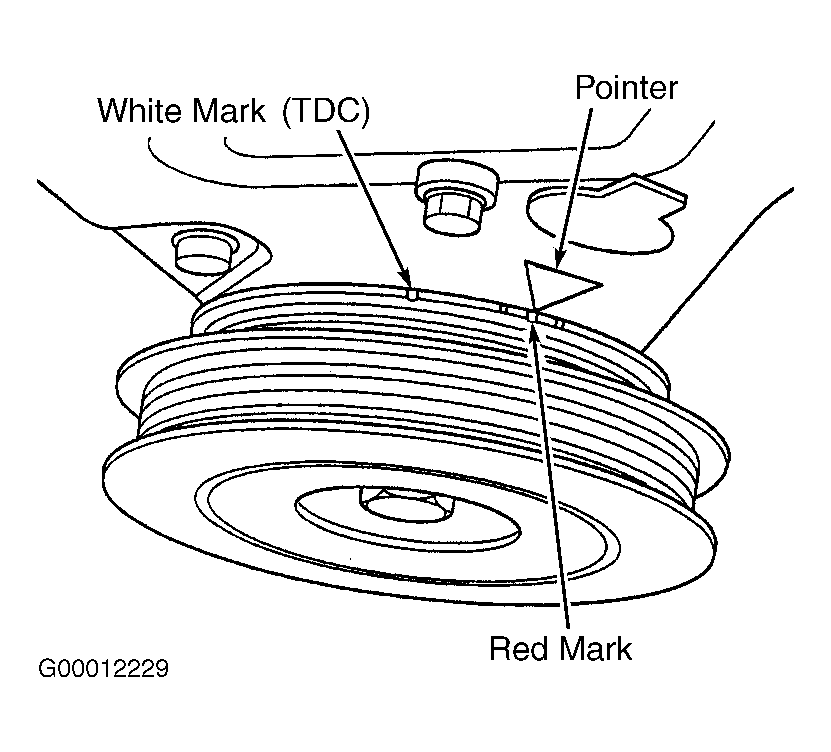

Fig 10: Locating Ignition Timing Marks (Odyssey)

G00012229

Courtesy of AMERICAN HONDA MOTOR CO., INC.

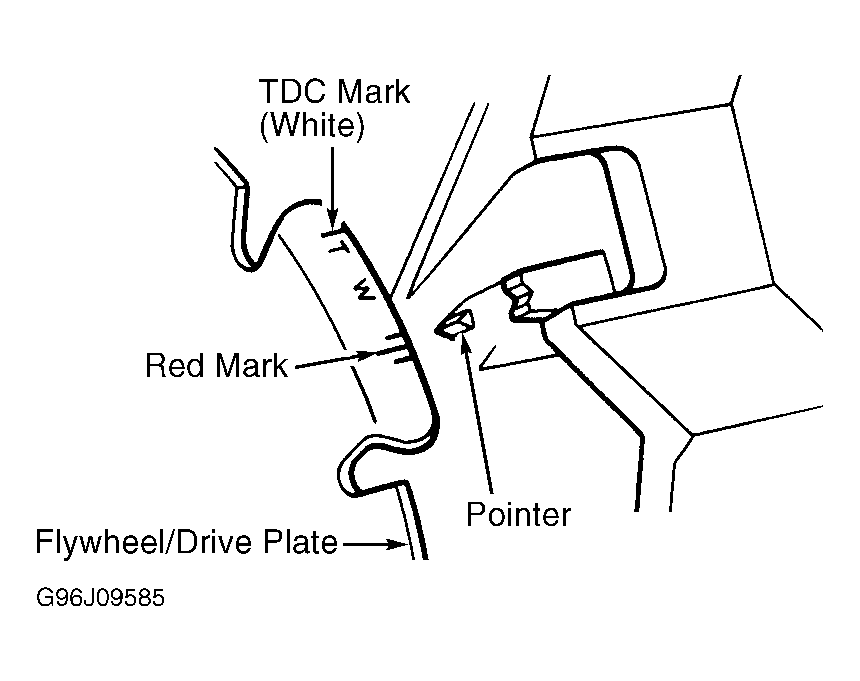

Fig 11: Locating Ignition Timing Marks (Prelude)

G96J09585

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 12: Locating Ignition Timing Marks (S2000)

G00012226

Courtesy of AMERICAN HONDA MOTOR CO., INC.
