'06-09 Model
SRS components are located in this area. Review the SRS component locations, (see COMPONENT LOCATION INDEX ) and PRECAUTIONS AND PROCEDURES ) before performing repairs or service.
NOTE:
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Take care not to scratch the body or tear the seat covers.
- Put on gloves to protect your hands.
- Make sure you have the anti-theft code for the radio, and then write down the audio presets.
- Disconnect the negative cable from the battery, and wait at least 3 minutes before beginning work.
- Passenger's: Detach the front seat belt lower anchor (see step 4 on SEAT BELT REPLACEMENT .

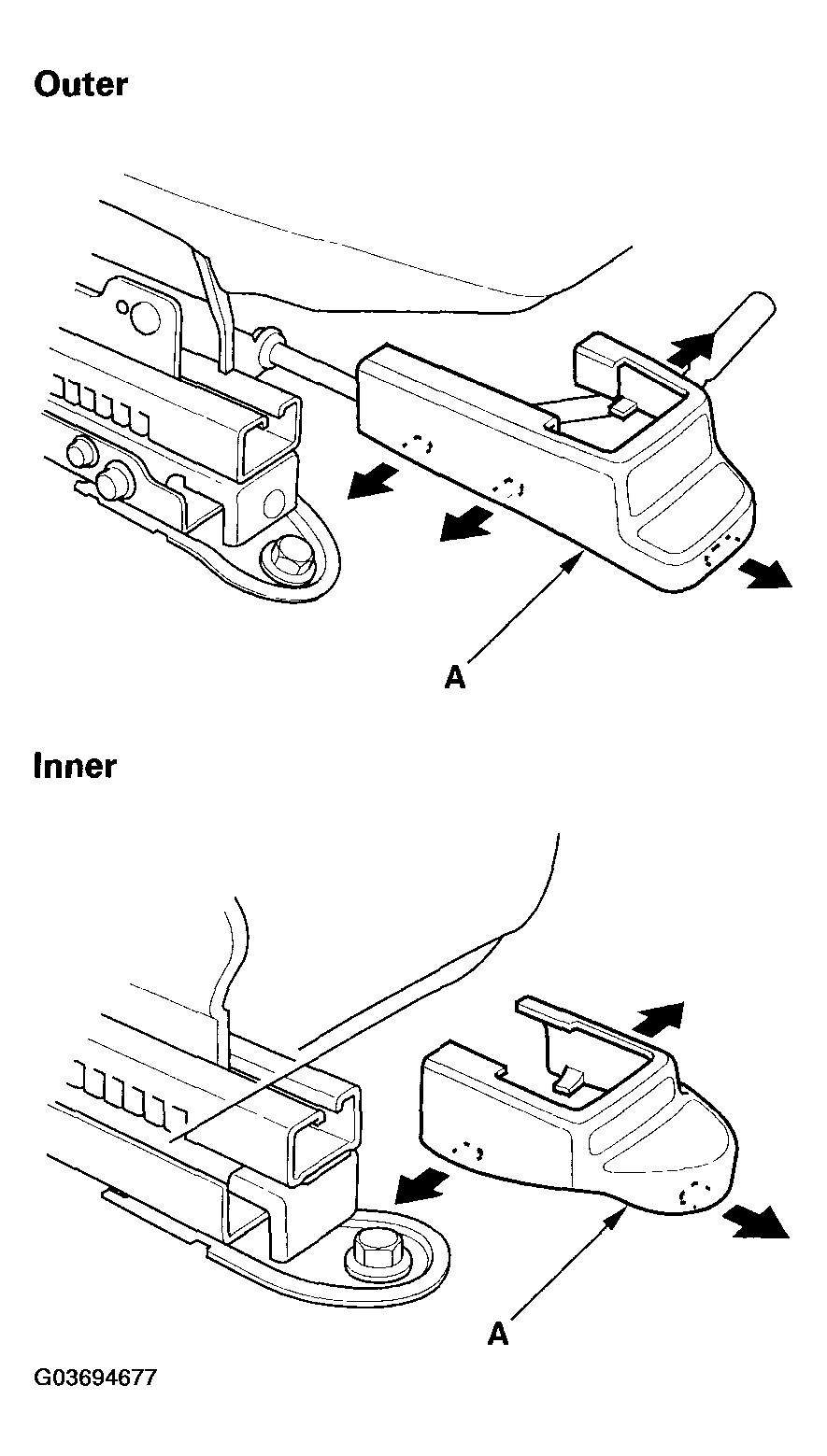

- Passenger's: Remove the seat track and covers (A) from the front of both seat tracks.

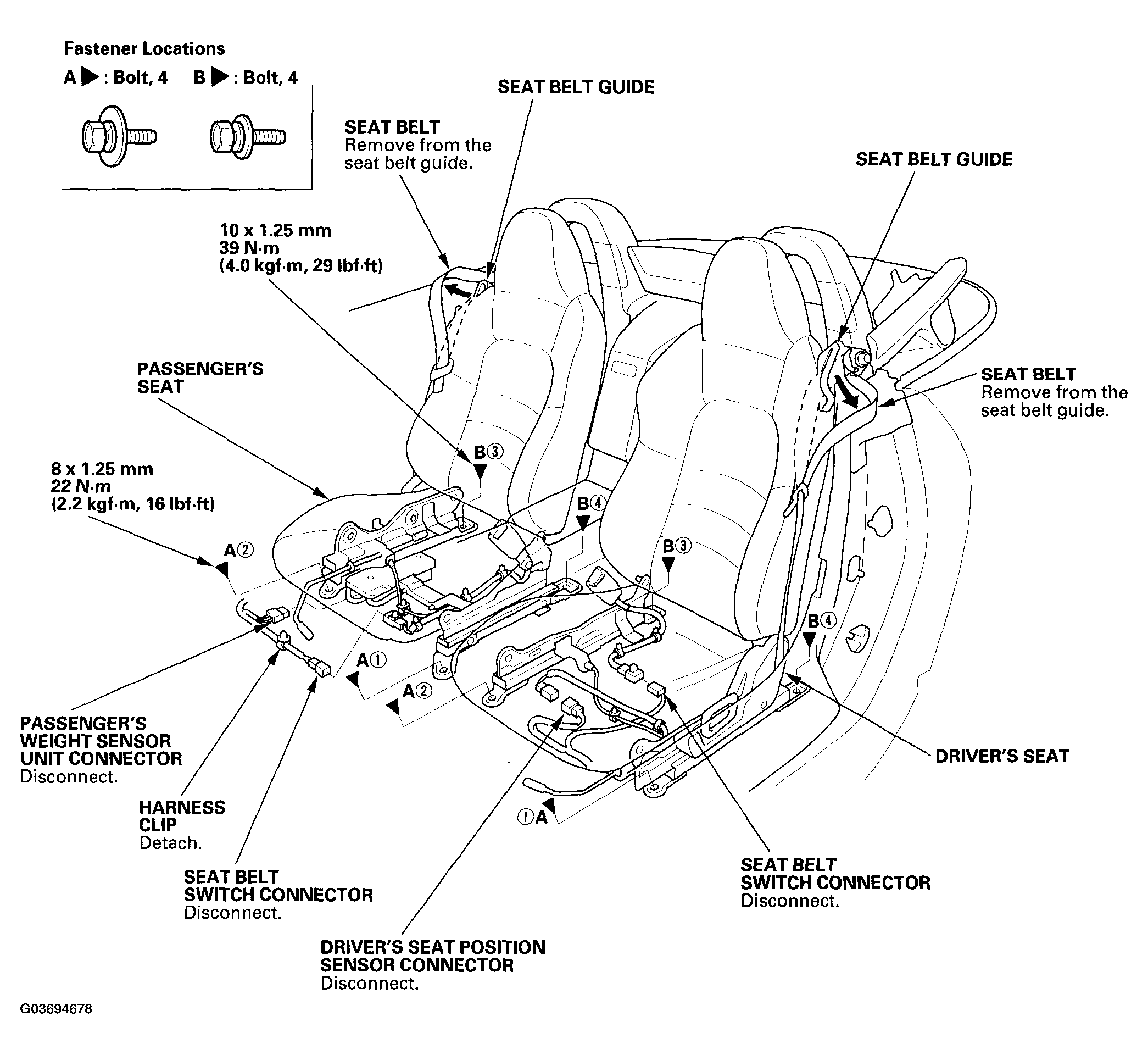

- Remove the seat as shown below.
- Install the seat in the reverse order of removal, and note these items:
- Slit the seat belt through the slits in the seat belt guide properly.
- Make sure the seat belt switch, passenger's weight sensor unit and driver's seat position sensor connector are plugged in properly.
- Apply liquid thread lock to the seat mounting bolts before reinstallation.
- Tighten the seat mounting bolts to the specified torque in the sequence shown. Slide the seat all the way back and tighten (1) and (2), then slide it forward and tighten (3) and (4).
- Passenger's: Before attaching the front seat belt lower anchor, make sure there are no twists or kinks in the belts.
- Reconnect the negative cable to the battery.
- Enter the anti-theft codes for the radio, then enter the audio presets.
- Reset the clock.
