Fastener (Roof side) Installation/Body Primer Application

NOTE:

Apply body primer to exposed painted surfaces only.
Attach the lower fasteners with adhesive tape.

Lower fastener adhesive tape: Thickness 1.6 mm (0.06 in.)

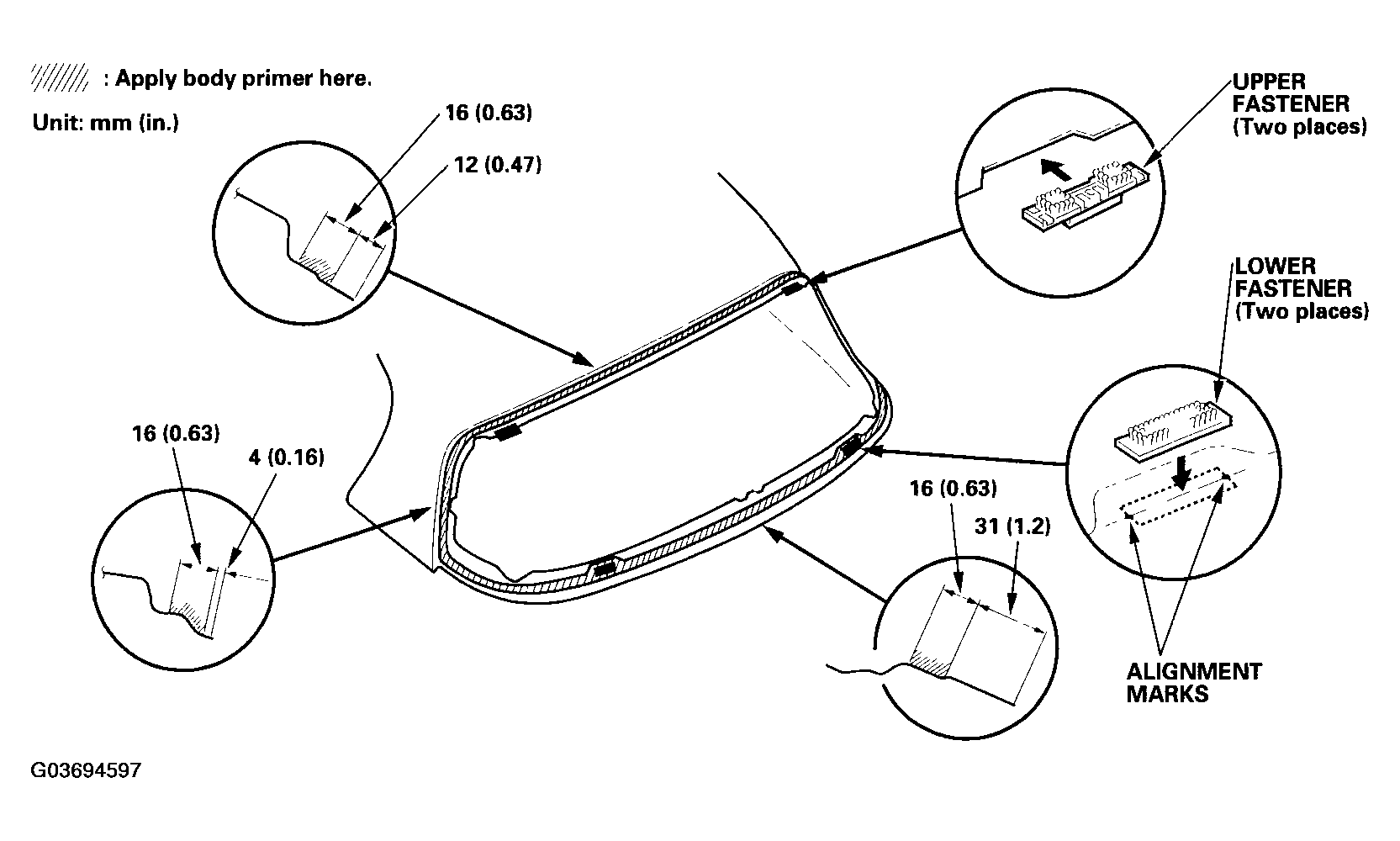

Fig 1: Identifying Lower Fasteners With Adhesive Tape Thickness

G03694597

Courtesy of AMERICAN HONDA MOTOR CO., INC.
