Passenger's Window Motor Test

Remove the passenger's door panel (see DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 2P connector from the passenger's window motor.

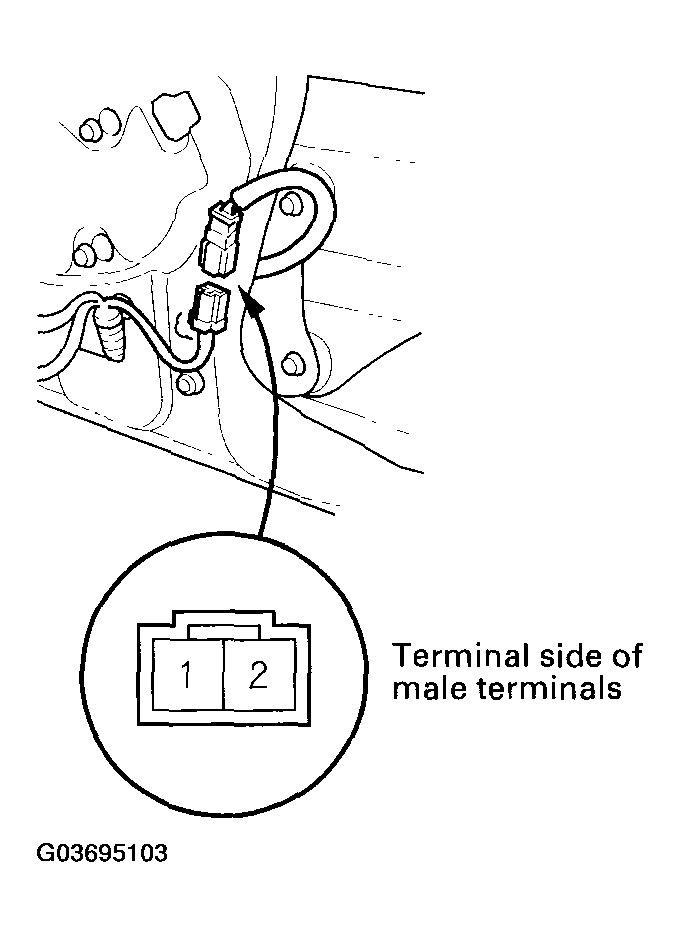

Fig 1: Disconnecting 2P Connector From Passenger's Window Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check window motor operation by connecting power and ground according to the table below. When the motor stops running, disconnect one lead immediately.

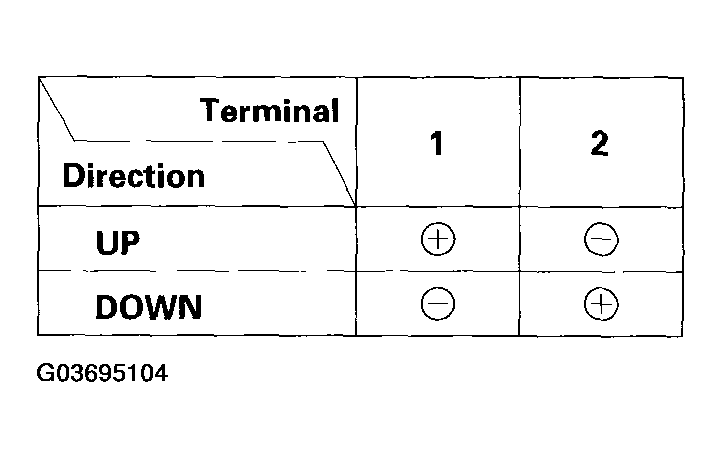

Fig 2: Identifying Window Motor Operation Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, replace it.
