Under-Dash Fuse/Relay Box

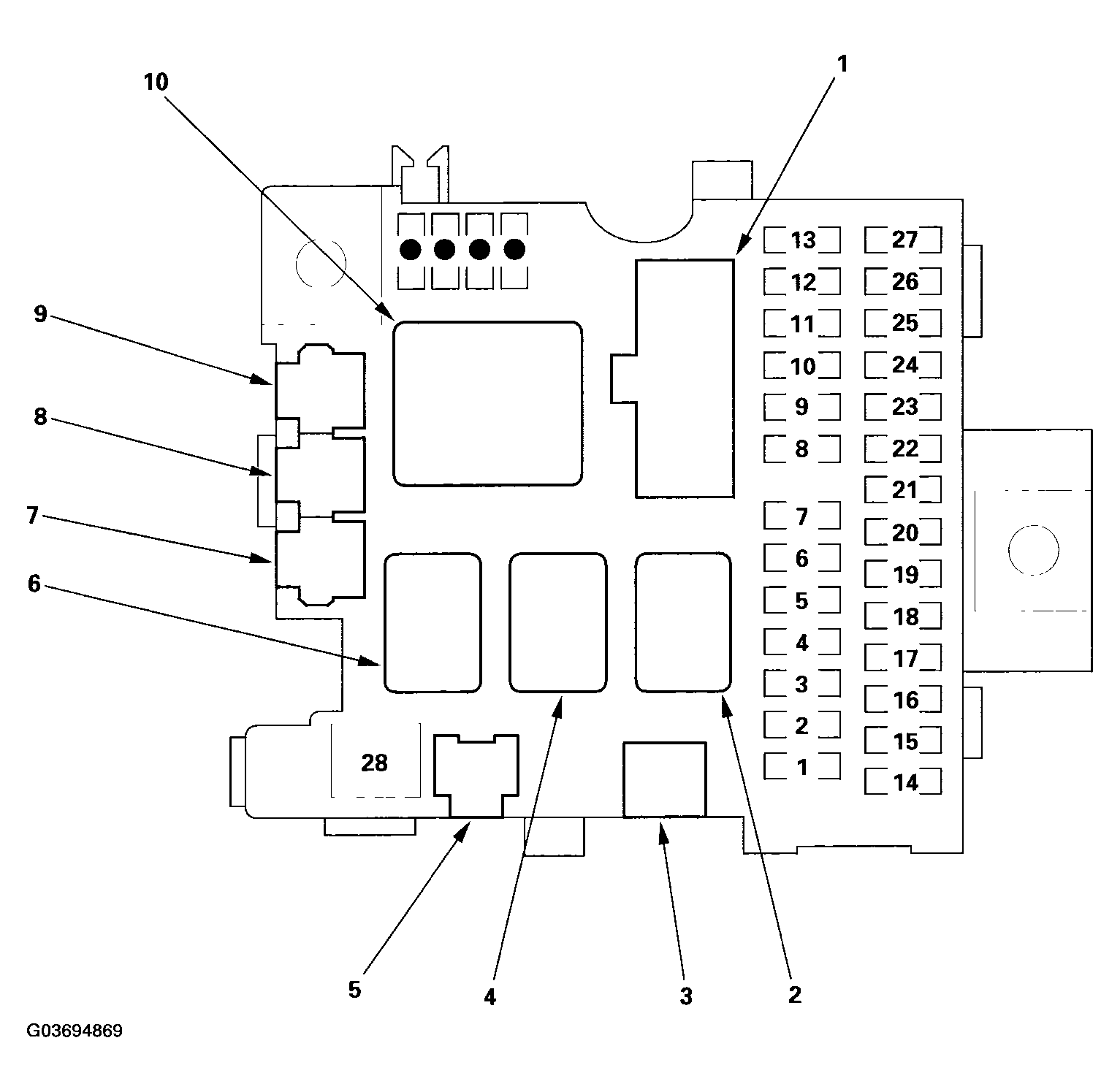

CONNECTOR TO FUSE/RELAY BOX INDEX - UNDER-DASH FUSE/RELAY BOX
| Socket | Ref | Terminal | Connects to |
|---|---|---|---|
| A | 3 | 2 | SRS MAIN HARNESS |
| B | 1 | 7 | Ignition switch harness (see SRS MAIN HARNESS ) |
| C | 7 | 1 | Optional connector |
| D | 8 | 1 | Optional connector |
| E | 9 | 1 | Optional connector |
| Memory erase signal (MES) connector | 5 | 2 | SRS MAIN HARNESS |
| Rear window defogger relay ('00-01 models) | 6 | 4 | - |
| Starter cut relay | 4 | 4 | - |
| Taillight relay | 2 | 4 | - |
| Turn signal/hazard relay | 10 | 3 | - |
