Engine Compartment
Fig 1: Identifying Relay & Control Unit Locations (Engine Compartment 2000-05 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

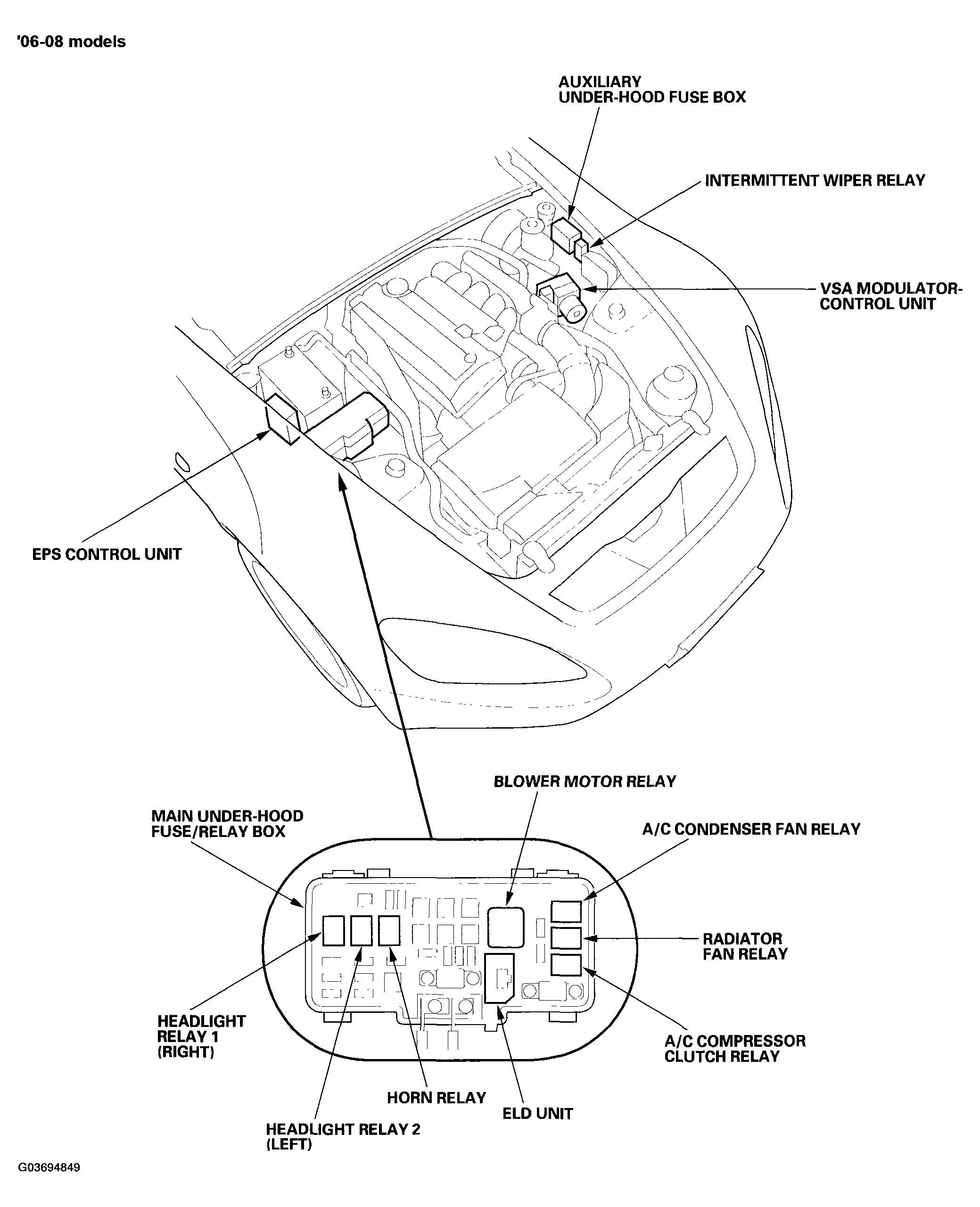

Fig 2: Identifying Relay & Control Unit Locations (Engine Compartment 2006-09 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
