Special Tools Required

Relay puller 07AAC-000A1A0

Use this table to identify the type of relay, then do the test listed for it. Carefully remove the relays using the relay puller. Do not use pliers. Pliers will damage the relay

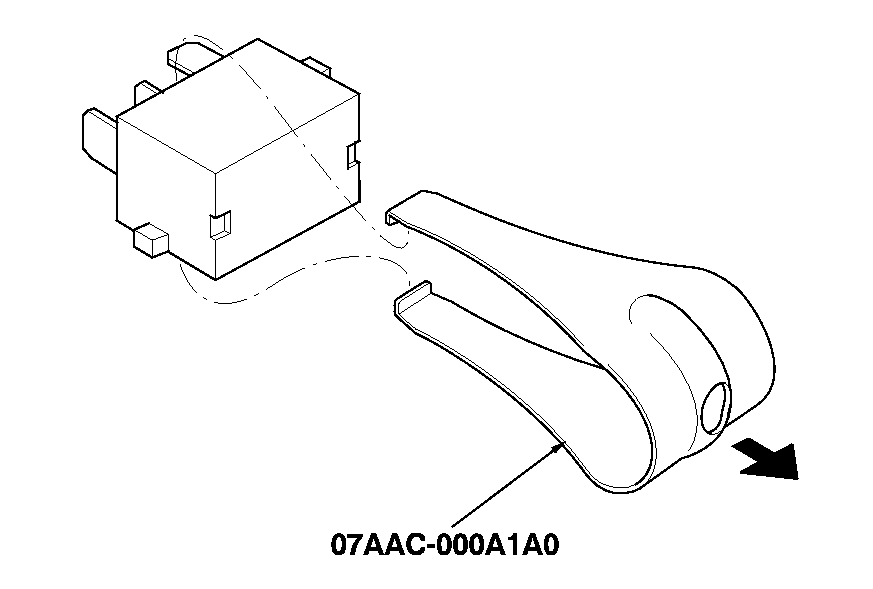

Fig 1: Identifying Relay Puller

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: For the turn signal/hazard relay input test (see TURN SIGNAL/HAZARD RELAY INPUT TEST ).

RELAY INPUT TEST TABLE

Relay

Test

A/C compressor clutch relay

Normally open type A

A/C condenser fan relay

ETCS control relay⁽³⁾

Headlight relay 1

Headlight relay 2

High beam cut relay (Except '00-05 USA)

Horn relay

PGM-FI main relay 1⁽³⁾

PGM-FI main relay 2⁽³⁾

Radiator fan relay

Starter cut relay

Taillight relay

Rear window defogger relay⁽¹⁾

Blower motor relay

Normally open type B

Intermittent wiper relay⁽²⁾

Five terminal type A

A/F sensor relay⁽³⁾

Five terminal type B

Accessory power socket relay

IG2 relay

Ignition coil relay⁽³⁾

Intermittent wiper relay⁽¹⁾

Rear window defogger change relay⁽²⁾

Rear window defogger relay⁽²⁾

⁽¹⁾	'00-01 models

⁽²⁾	'02-09 models

⁽³⁾	'06-09 model
