Circuit Diagram

'00-03 models

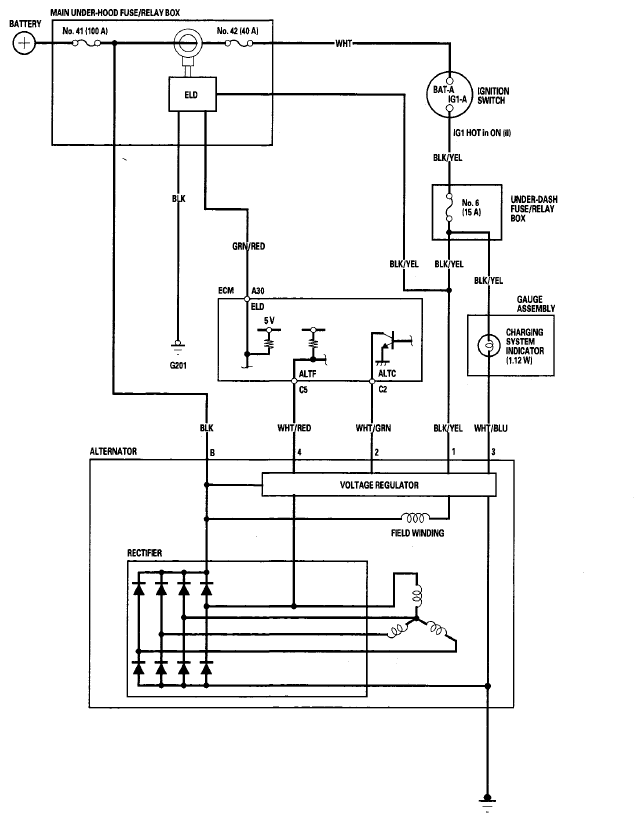

Fig 1: Charging System Circuit Diagram (00-03 Models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

'04-05 models

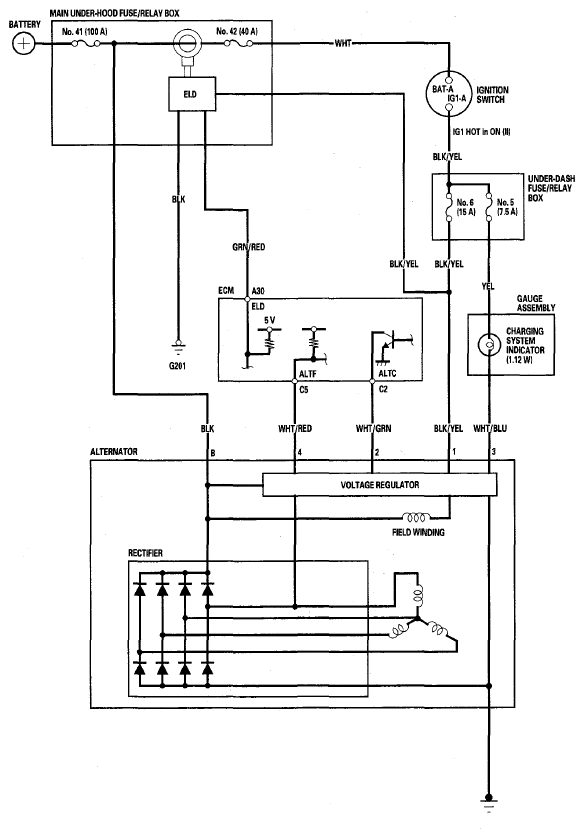

Fig 2: Charging System Circuit Diagram (04-05 models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

'06-09 models

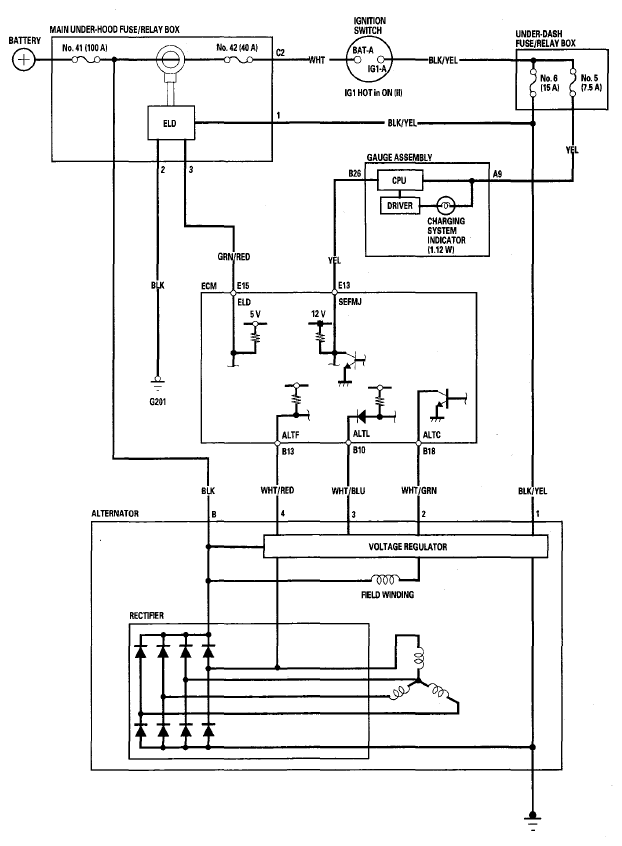

Fig 3: Charging System Circuit Diagram (06-09 Models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
