Drive Belt Auto-tensioner Replacement

  1. Remove the drive belt (see DRIVE BELT INSPECTION ).
  2. Remove the auto-tensioner.

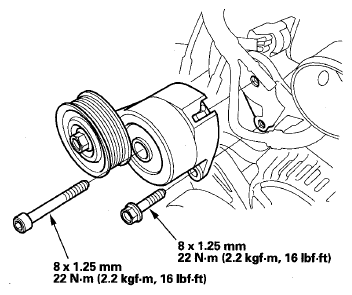

    Fig 1: Auto-Tensioner And Bolt With Torque Specifications
    G06231592Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the auto-tensioner in the reverse order of removal.
