Circuit Diagram
'00-05 models

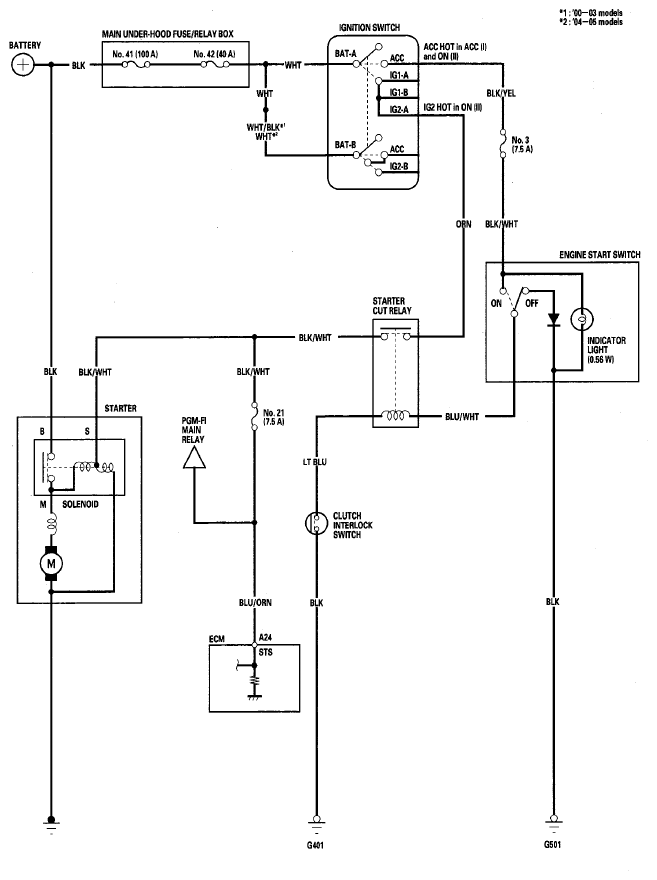

Fig 1: Starting System Circuit Diagram (00-05 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
'06-09 models

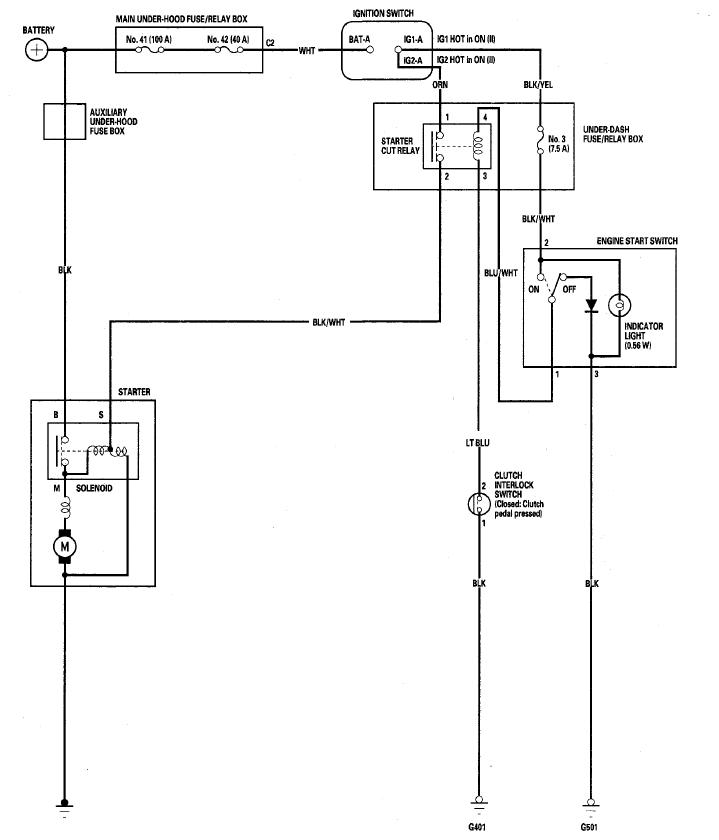

Fig 2: Starting System Circuit Diagram (06-09 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
