Oil Jet Replacement

  1. Remove the crankshaft from the engine block (see CRANKSHAFT AND PISTON REMOVAL ).
  2. Remove the oil jet bolt (A) and oil jet (B).

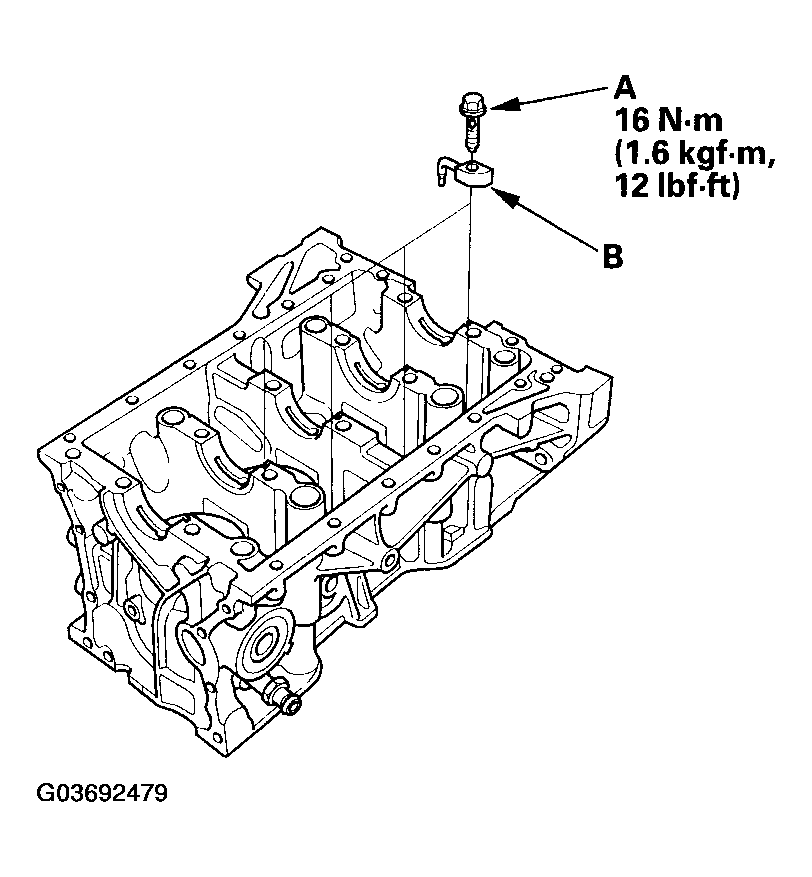

    Fig 1: Oil Jet & Bolt With Torque Specifications
    G03692479Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Carefully install the oil jet and tighten the oil jet bolt.
  4. Install the crankshaft (see CRANKSHAFT INSTALLATION ).
