Oil Pressure Switch Replacement

  1. Remove the wire from the oil pressure switch, then remove the oil pressure switch.

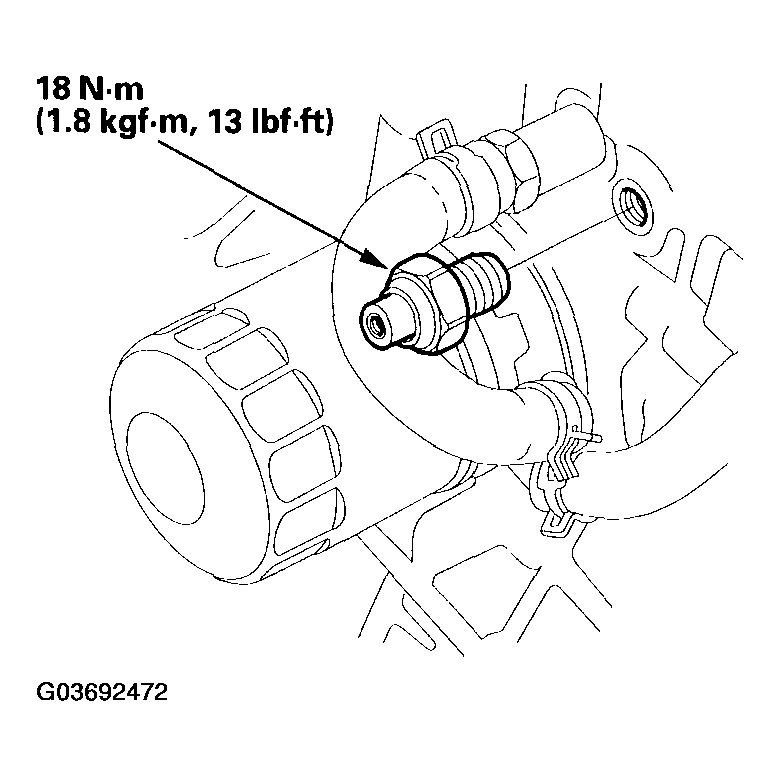

    Fig 1: View Of Oil Pressure Switch With Torque Specifications
    G03692472Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove any old liquid gasket from the switch and switch mounting hole.
  3. Apply a very small amount of liquid gasket to the oil pressure switch threads, then install the oil pressure switch.
    NOTE: Using too much liquid gasket may cause liquid gasket to enter the oil passage or the end of the new oil pressure switch.
