Oil Pump Overhaul: Notes

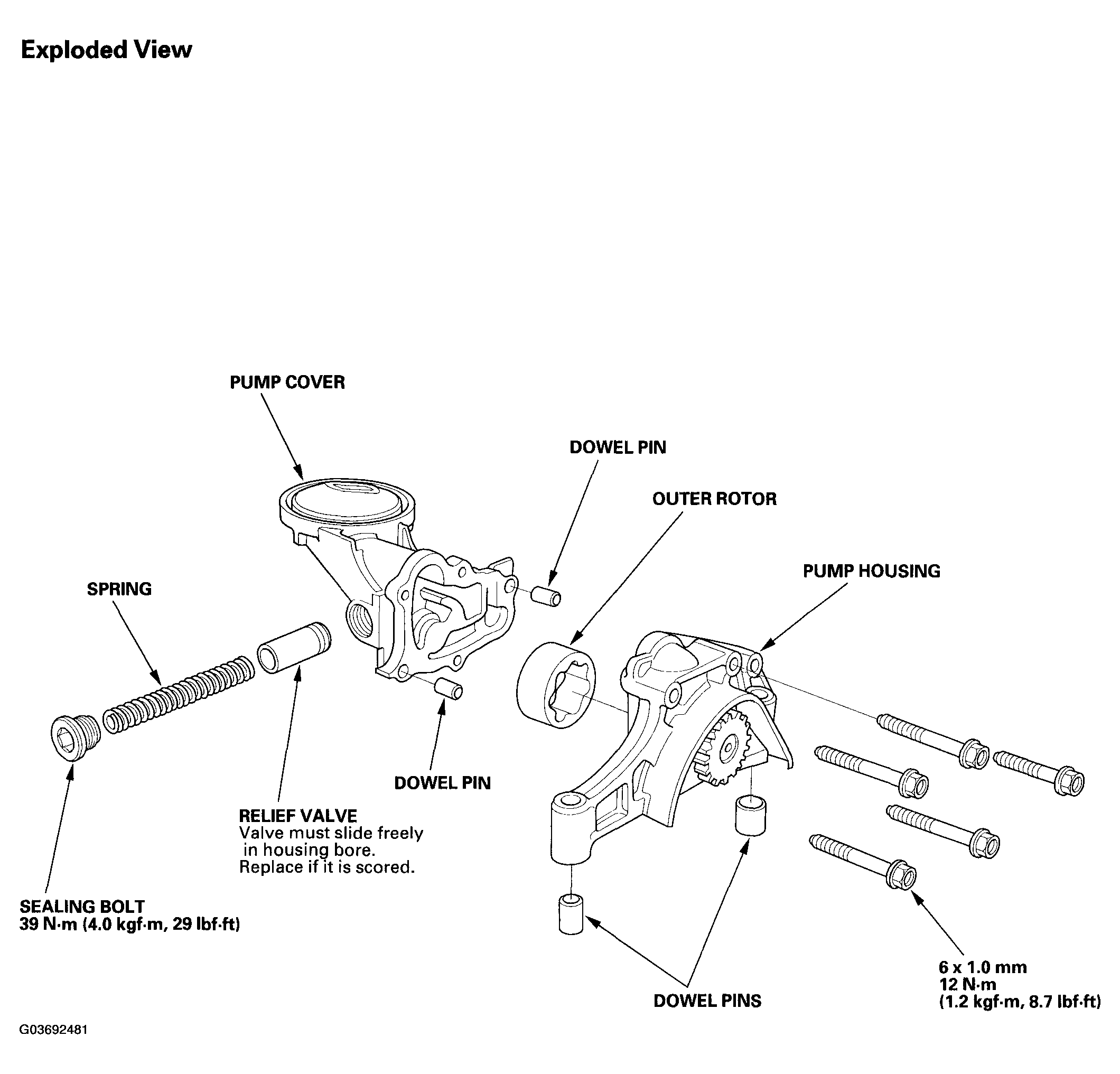

Fig 1: Identifying Oil Pump Replacement Components With Torque Specifications
G03692481Courtesy of AMERICAN HONDA MOTOR CO., INC.
