Oil Pump Overhaul: Removal

  1. Remove the cam chain (see CAM CHAIN REMOVAL ).
  2. Remove the oil pump chain tensioner.

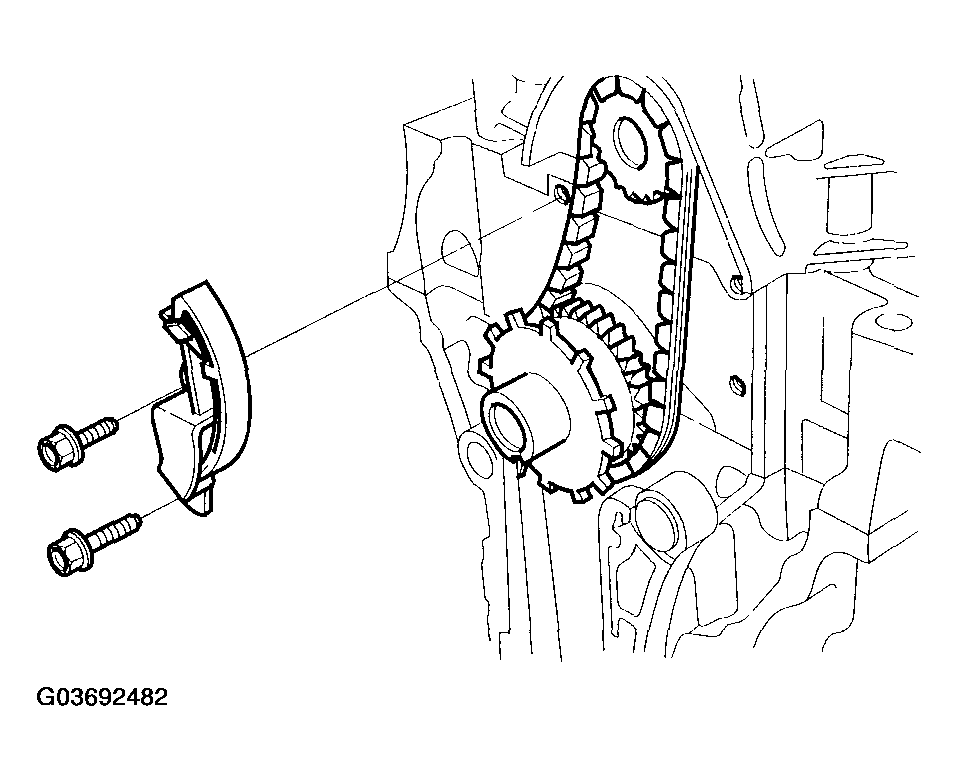

    Fig 1: Identifying Oil Pump Chain Tensioner
    G03692482Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the baffle plate.

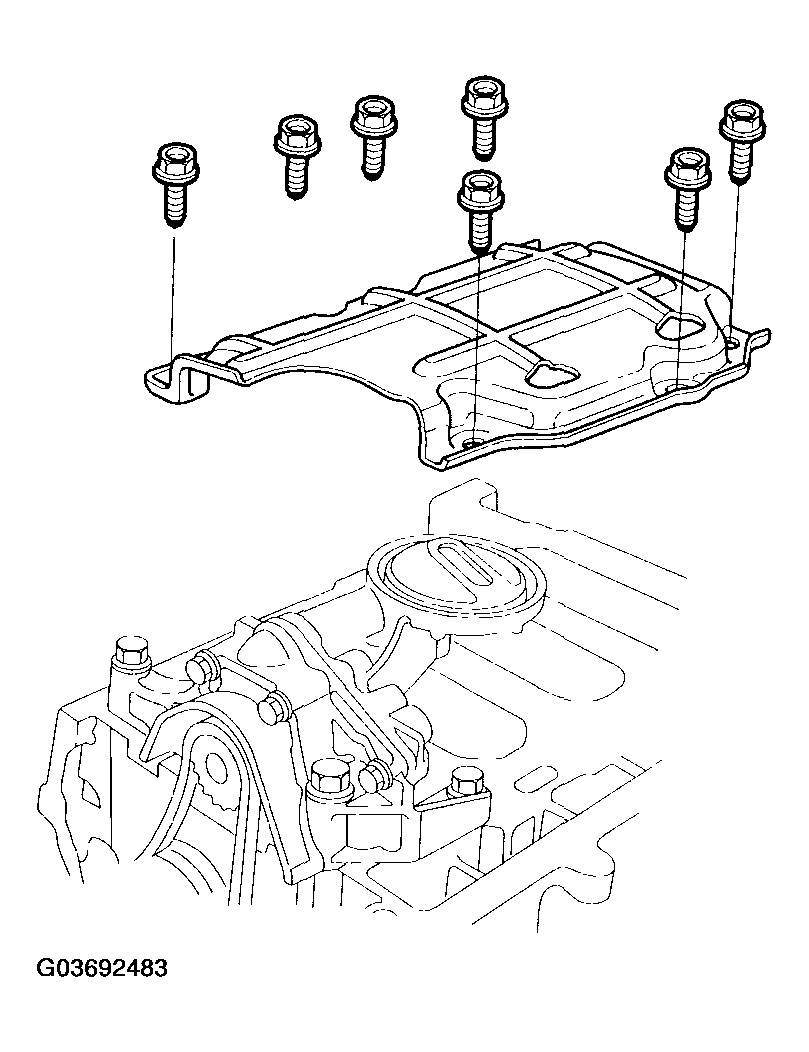

    Fig 2: Identifying Baffle Plate
    G03692483Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the three bolts securing the oil pump.

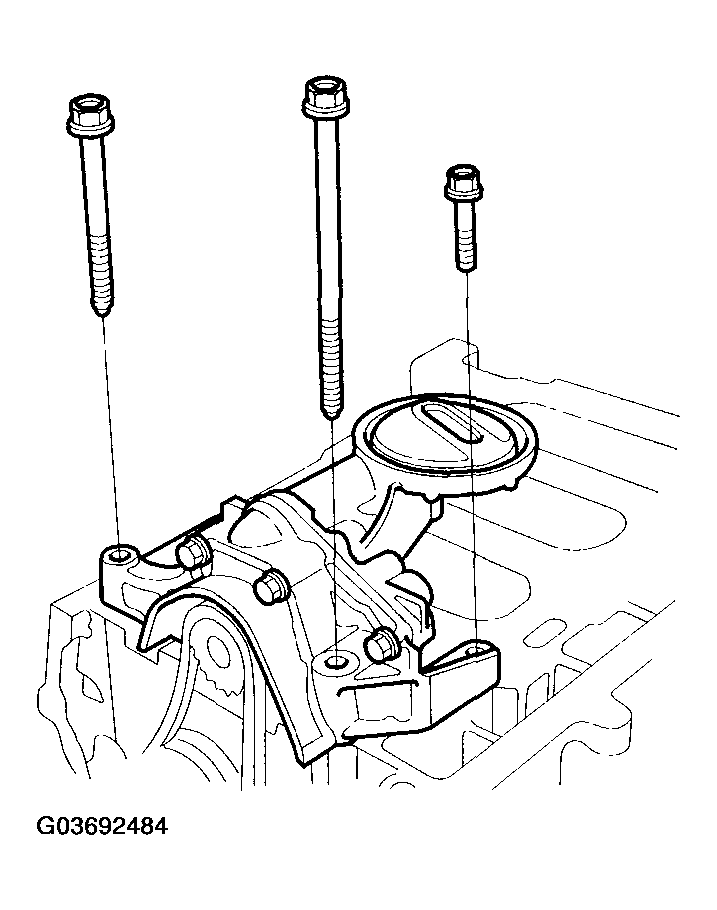

    Fig 3: Identifying Oil Pump Bolts
    G03692484Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the oil pump (A), oil pump chain (B), and crankshaft sprocket (C).

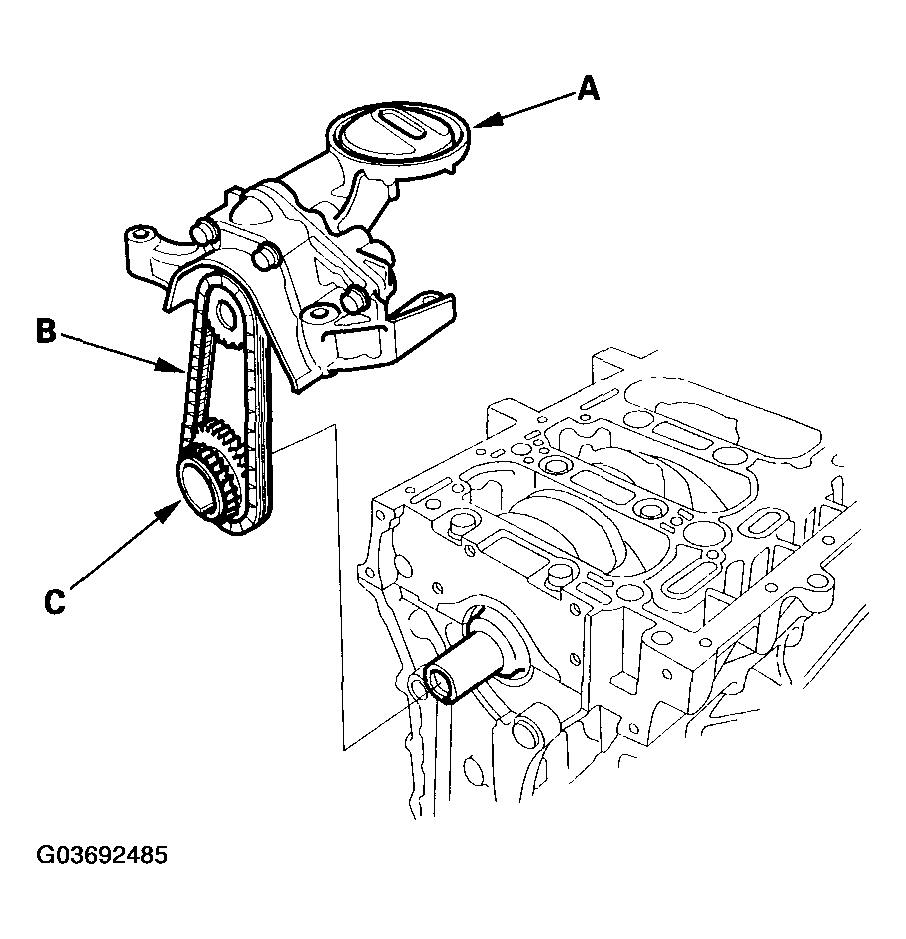

    Fig 4: Identifying Oil Pump, Oil Pump Chain & Crankshaft Sprocket
    G03692485Courtesy of AMERICAN HONDA MOTOR CO., INC.
