Drain Bolt Installation

NOTE: When installing the drain bolt, always use a new washer.

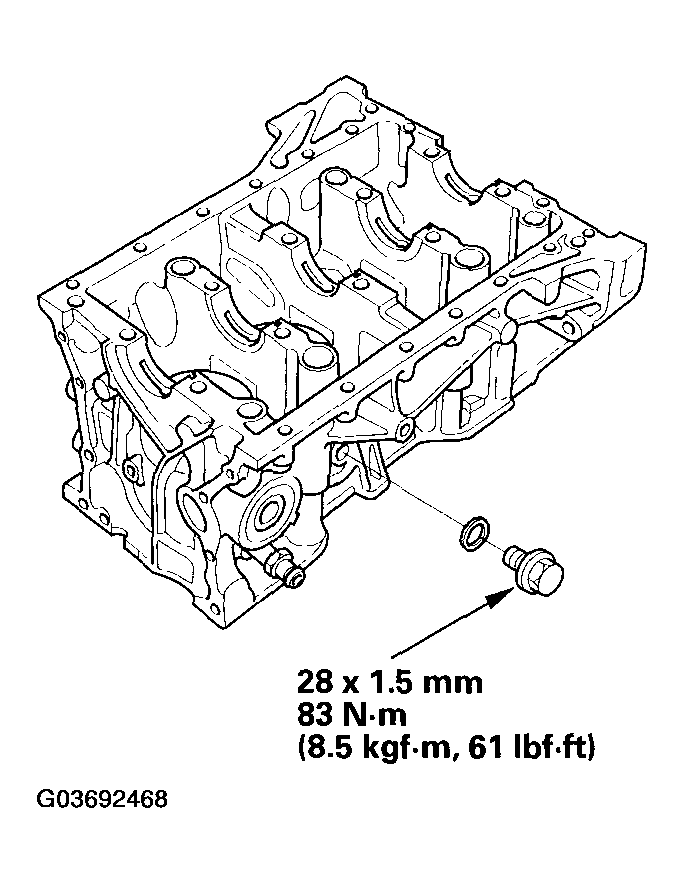

Fig 1: Installing Drain Bolt With Torque Specifications
G03692468Courtesy of AMERICAN HONDA MOTOR CO., INC.
