Circuit Diagram

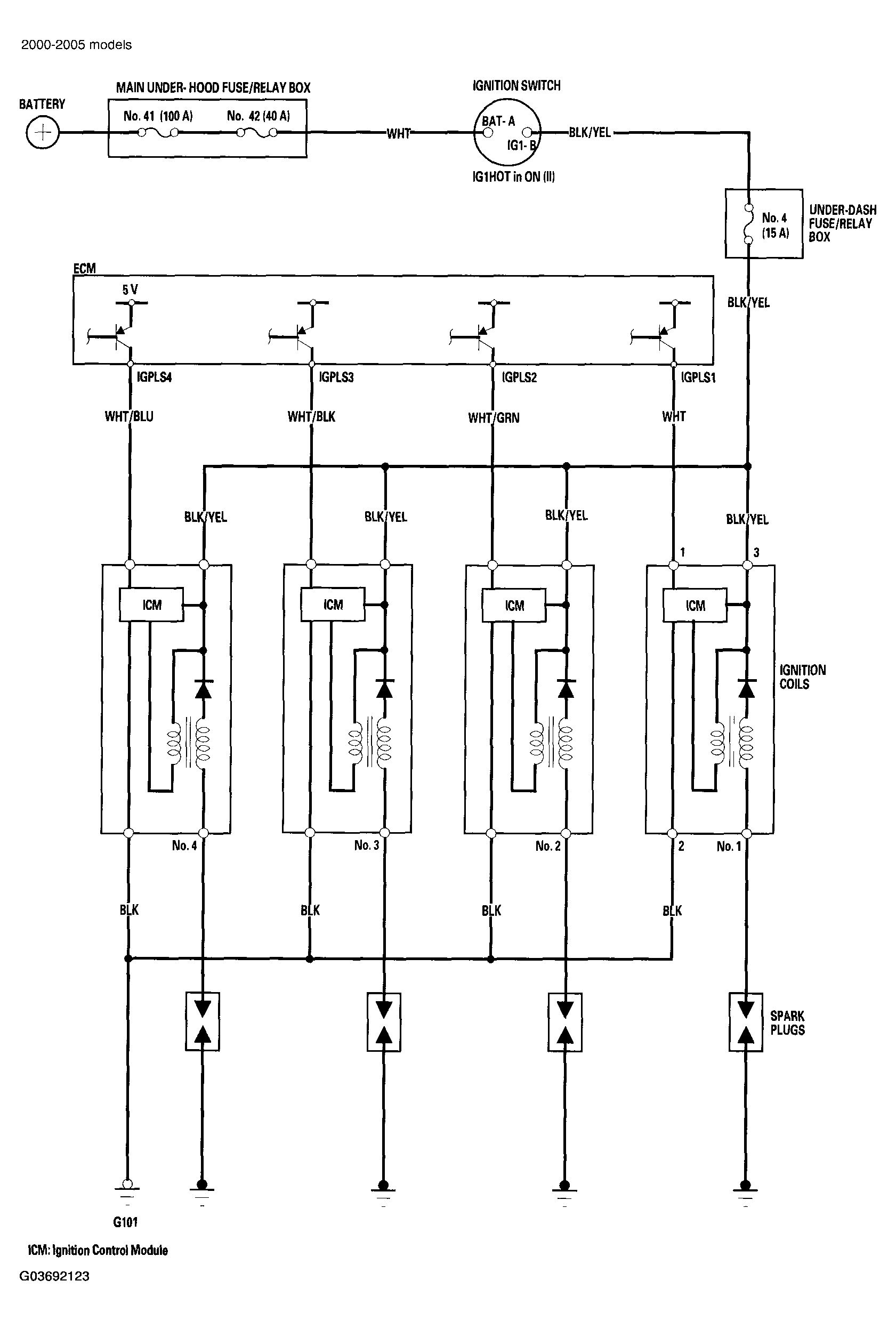

Fig 1: Identifying Circuit Diagram - Ignition System (2000-2005 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

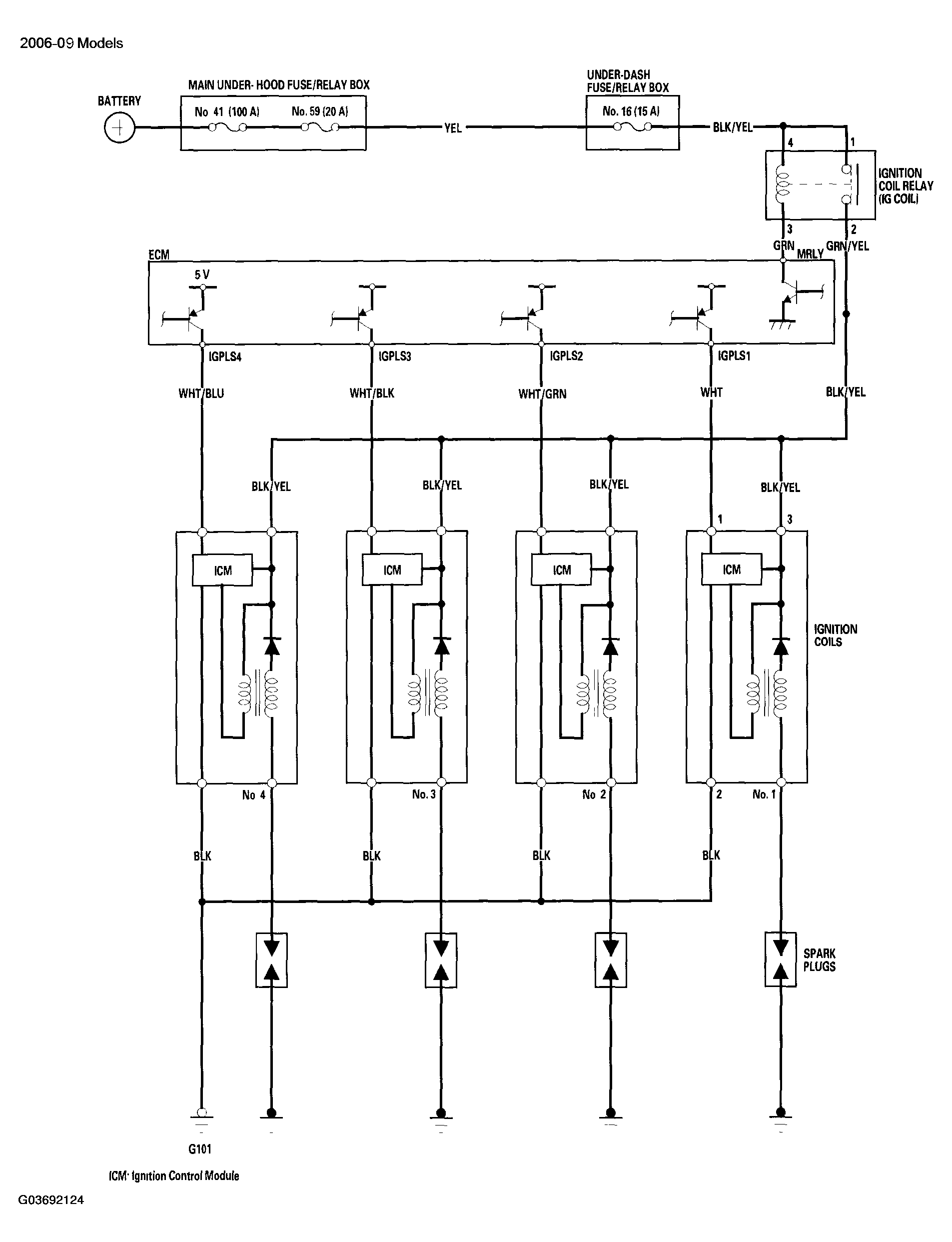

Fig 2: Identifying Circuit Diagram - Ignition System (2006-2009 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
