Valve Test
- Make sure the fuel tank is less than half full.
- Remove the fuel fill cap.

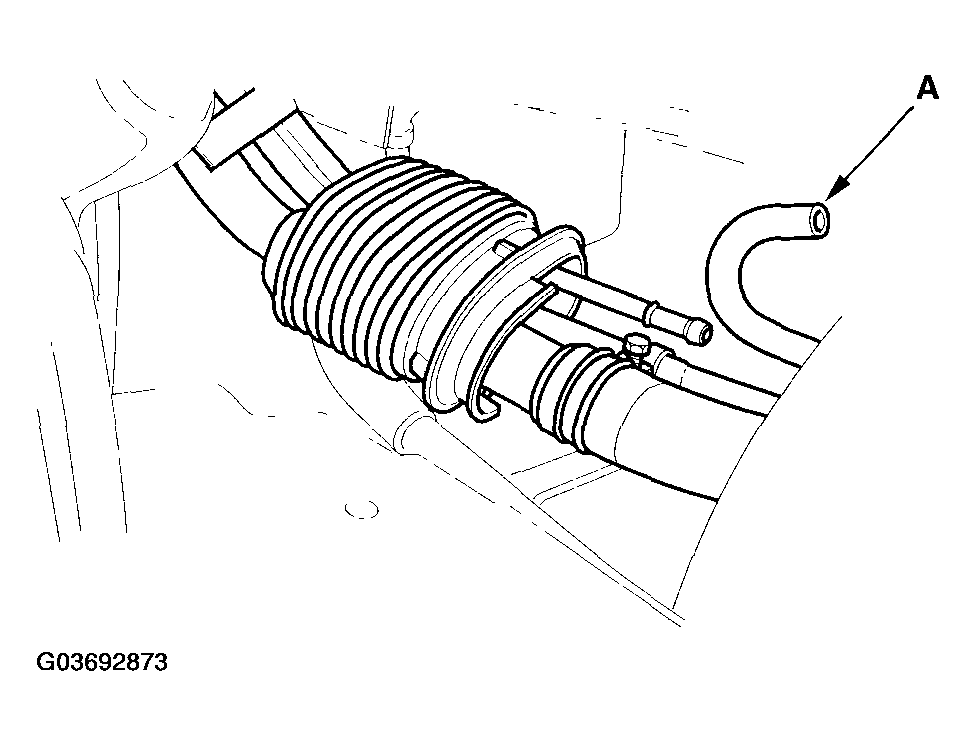

- Remove the fuel pipe cover. Disconnect the fuel tank vapor signal tube (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.

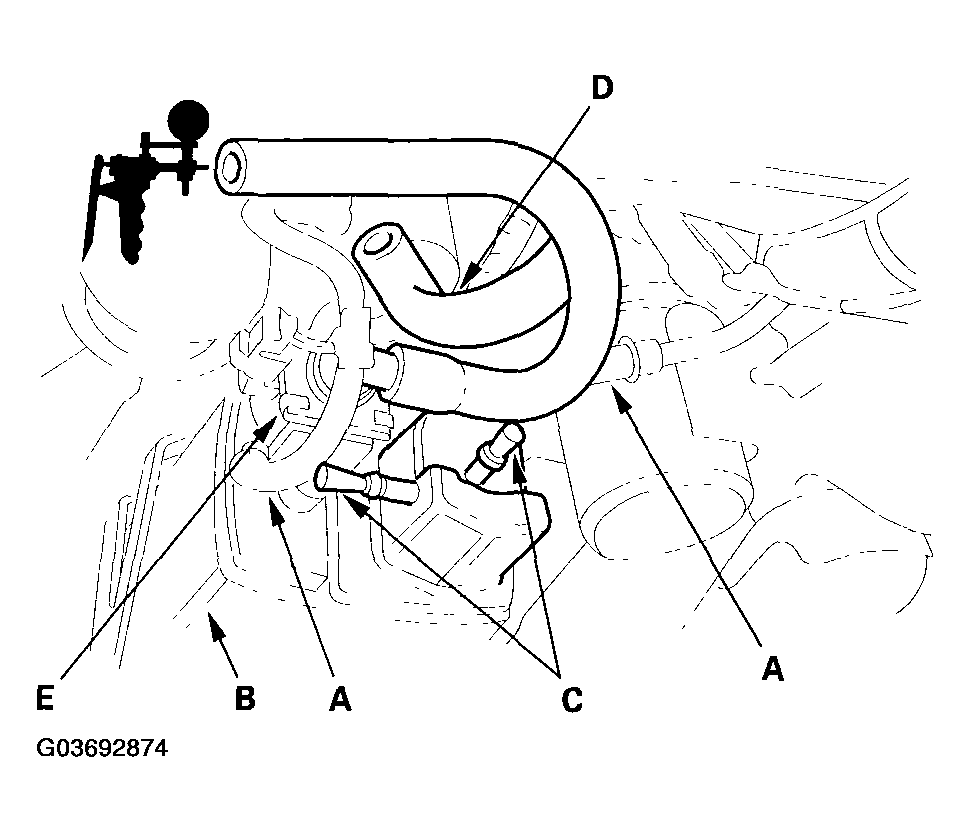

- Disconnect the vacuum hoses (A) from the EVAP canister (B), and then plug the ports with plugs (C).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Disconnect the vacuum hose (D) from the EVAP canister vent shut valve (E), and connect a commercially available vacuum pump/gauge, 0-30 in.Hg, to the EVAP canister vent shut valve.
- Pump the vacuum pump 80 times.
- If the vacuum holds, go to step 7.
- If the vacuum does not hold, go to step 9.

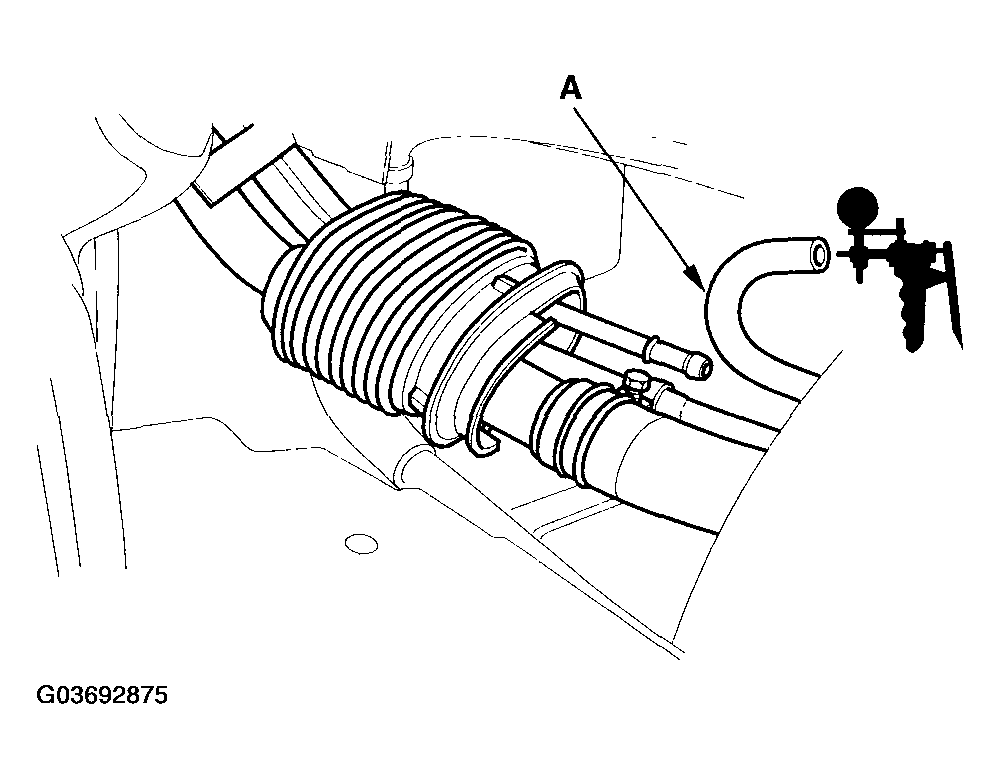

- Connect a second vacuum pump/gauge to the fuel tank vapor signal tube (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Apply vacuum (1 pump) to the fuel tank vapor signal tube (A), then check the vacuum on the pump in step 6.
- Disconnect the fuel tank vapor quick disconnect from the EVAP canister, then plug the port on the canister. Reapply vacuum (80 pumps).
- If the vacuum holds, replace the fuel tank vapor control valve (see FUEL TANK VAPOR CONTROL VALVE REPLACEMENT
).
- If the vacuum does not hold, inspect the EVAP canister vent shut valve O-ring. If the O-ring is OK, replace the EVAP canister and repeat step 4.
