Fuel Line Inspection

Check the fuel system lines, hoses, and fuel filter for damage, leaks, or deterioration, and replace parts as needed.

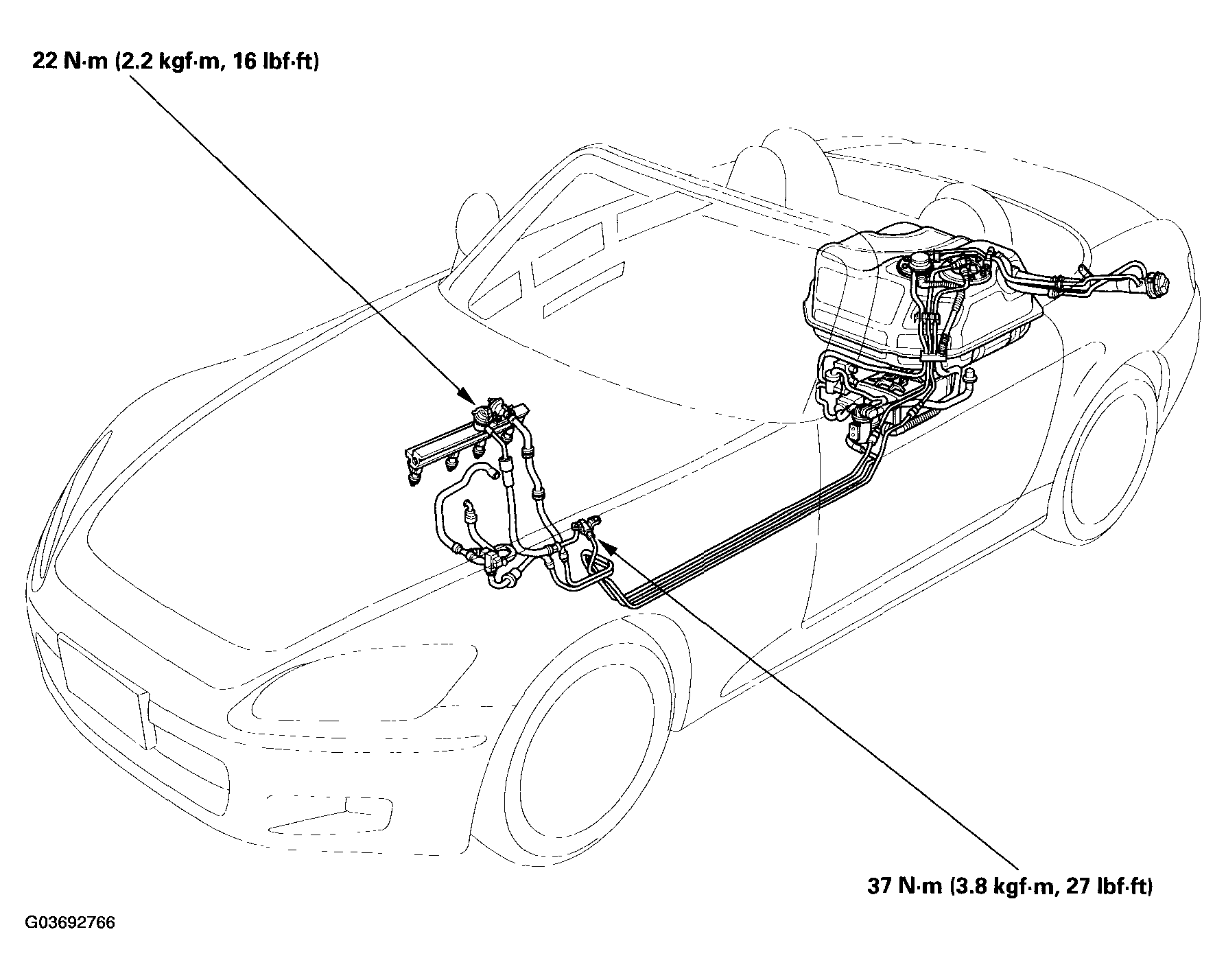

Fig 1: Inspecting Fuel Line With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Check all hose clamps and retighten if necessary.

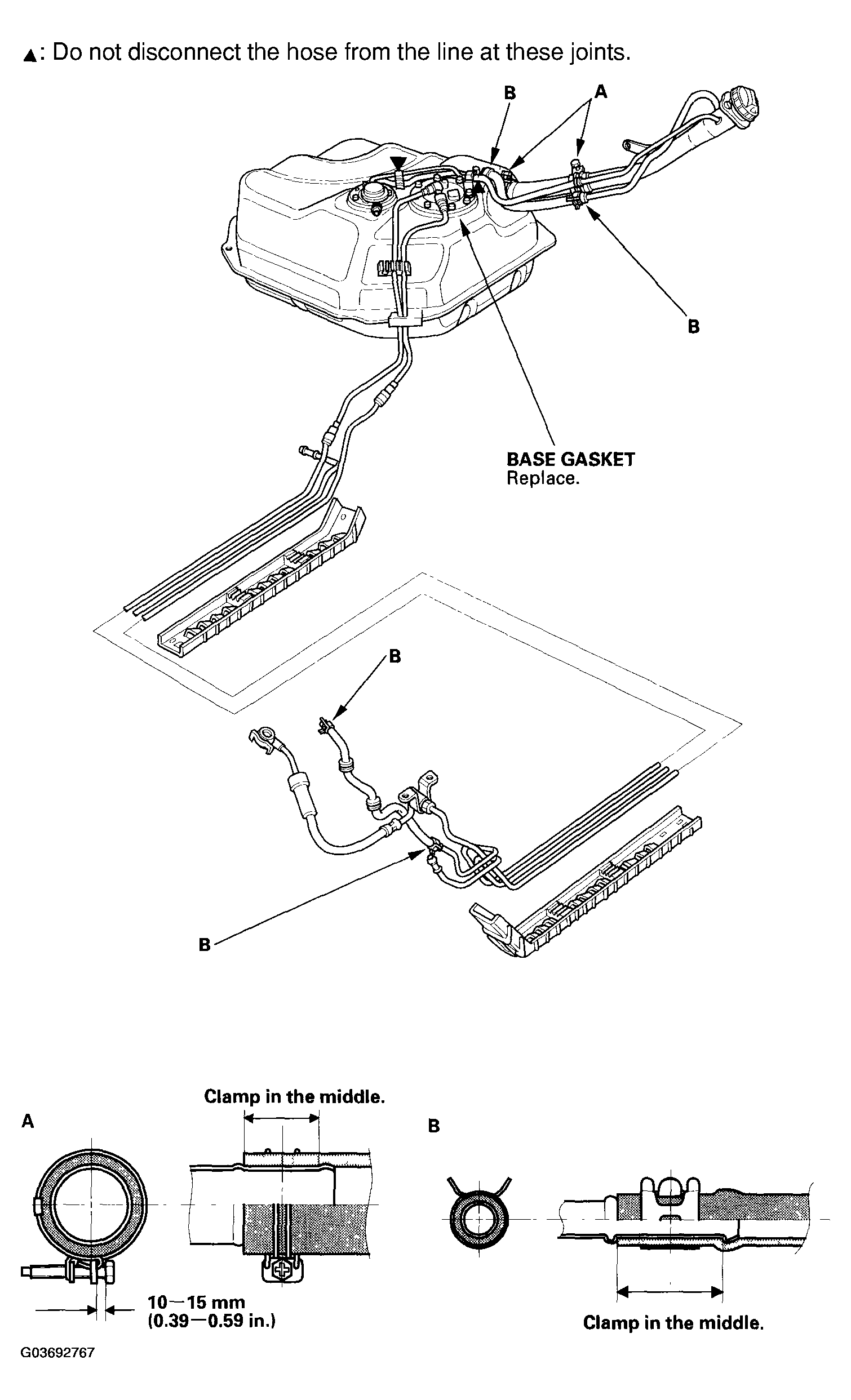

Fig 2: Checking All Hose Clamps

Courtesy of AMERICAN HONDA MOTOR CO., INC.
