Throttle Cable Removal/Installation

Fully open the throttle valve, then remove the throttle cable (A) from the throttle link (B).

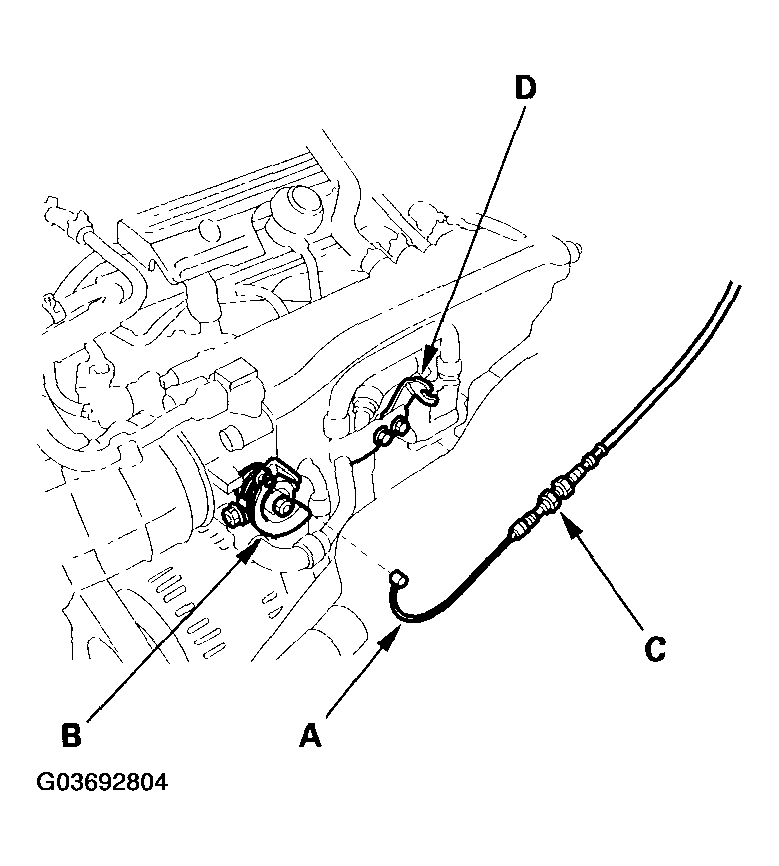

Fig 1: View Of Throttle Cable
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the cable housing (C) from the cable bracket (D).
Remove the nuts (A), then remove the accelerator pedal (B) along with the throttle cable (C) and the actuator cable (D).

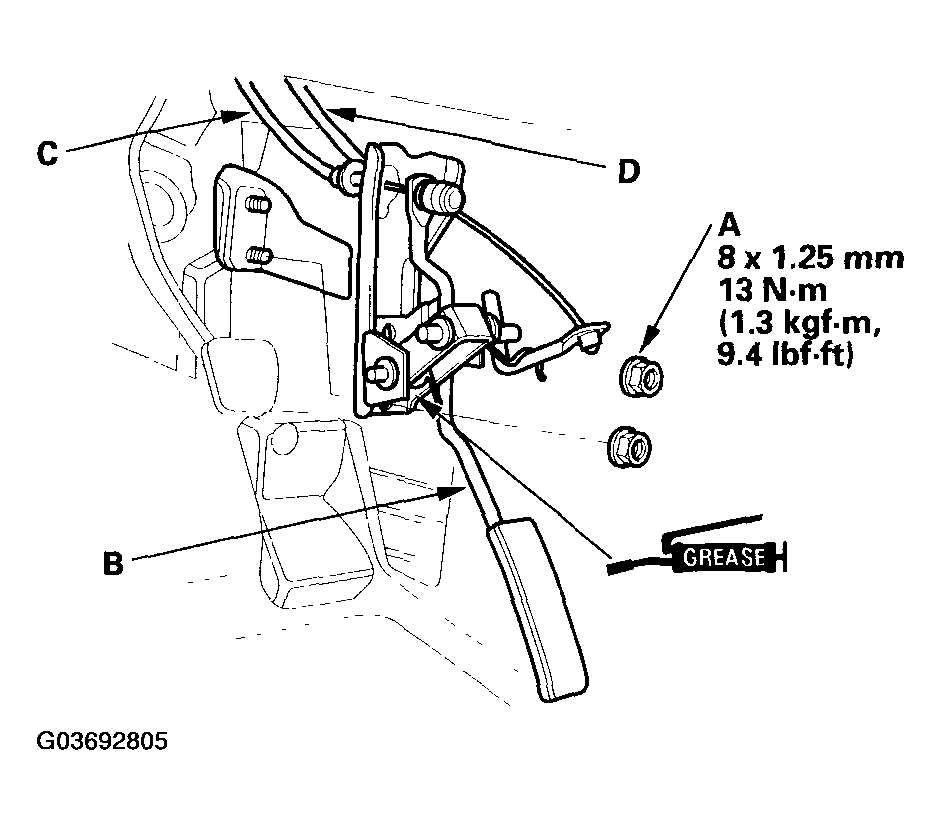

Fig 2: Removing Cable Housing From Cable Bracket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull the throttle cable (C) and the actuator cable (D) out toward the passenger compartment.
Remove the throttle cable (A) and the actuator cable (B) from the accelerator pedal bracket (C).

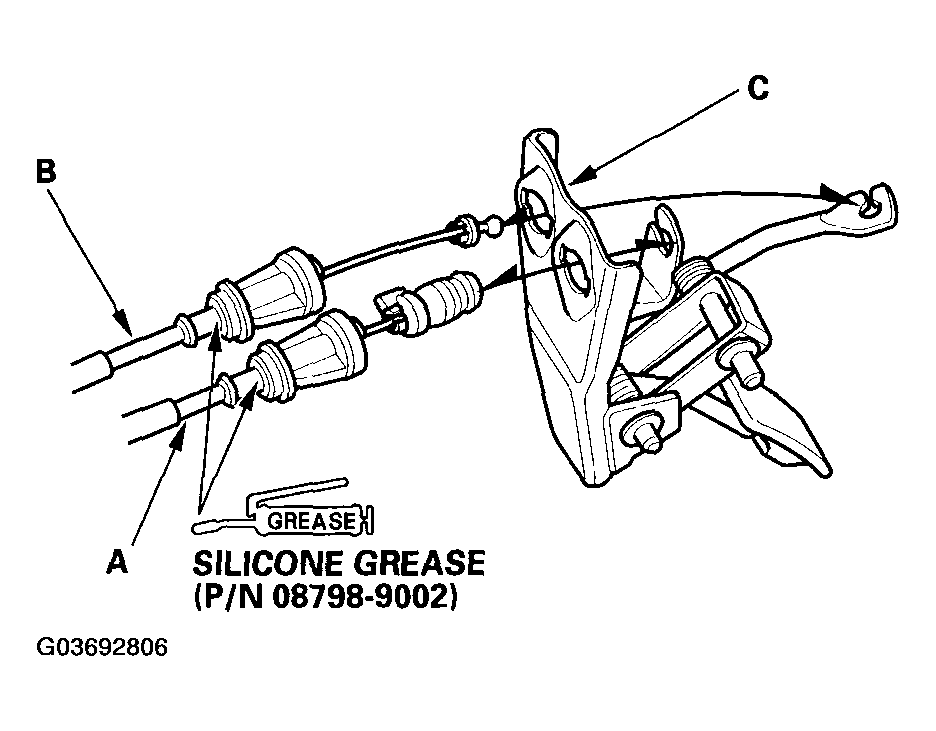

Fig 3: Removing Throttle Cable And Actuator Cable From Accelerator Pedal Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install in the reverse order of removal.
After installing, start the engine. Hold the engine speed at 3,000 rpm without load (in neutral) until the radiator fan comes on, then let it idle.
Hold the cable sheath, removing all slack from the cable.
Turn the adjusting nut (A) until it is 3 mm (1/8 in.) away from the cable bracket (B).

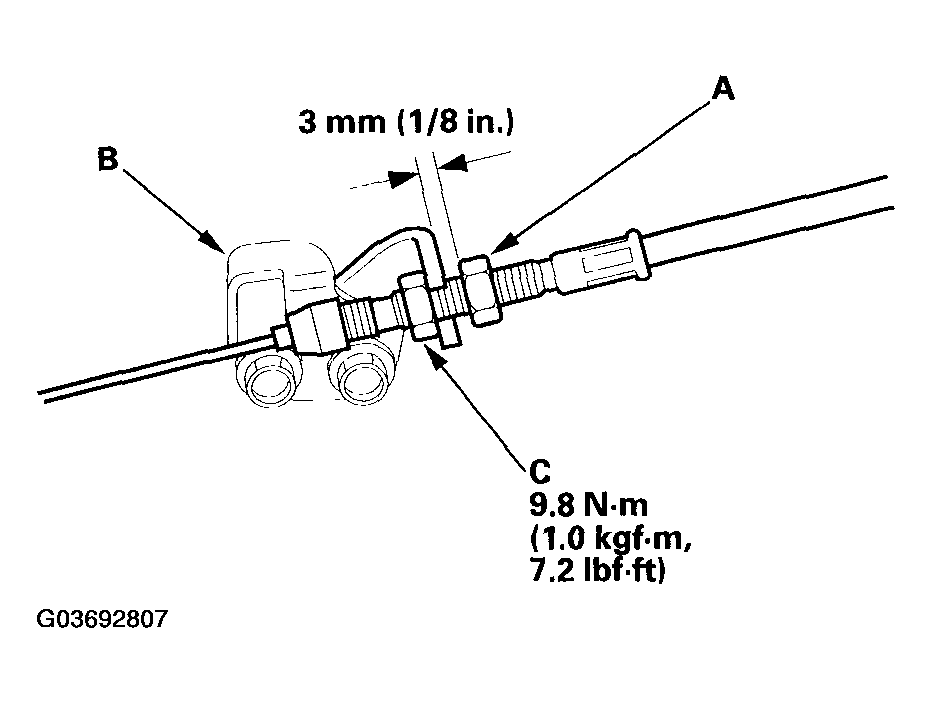

Fig 4: Adjusting Nut Turning Distance With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Tighten the locknut (C). The cable free play should now be 4-6 mm (3/16-1/4 in.). If free play is not within specs, loosen the locknut, turn the adjusting nut until the free play is as specified, then retighten the locknut.
With the cable properly adjusted, check the throttle valve to be sure it opens fully when you push the accelerator pedal to the floor. Also check the throttle valve to be sure it returns to the idle position whenever you release the accelerator pedal.
