2004-2005 models

  1. Disconnect the PCV hose.
  2. Remove the PCV valve (A).

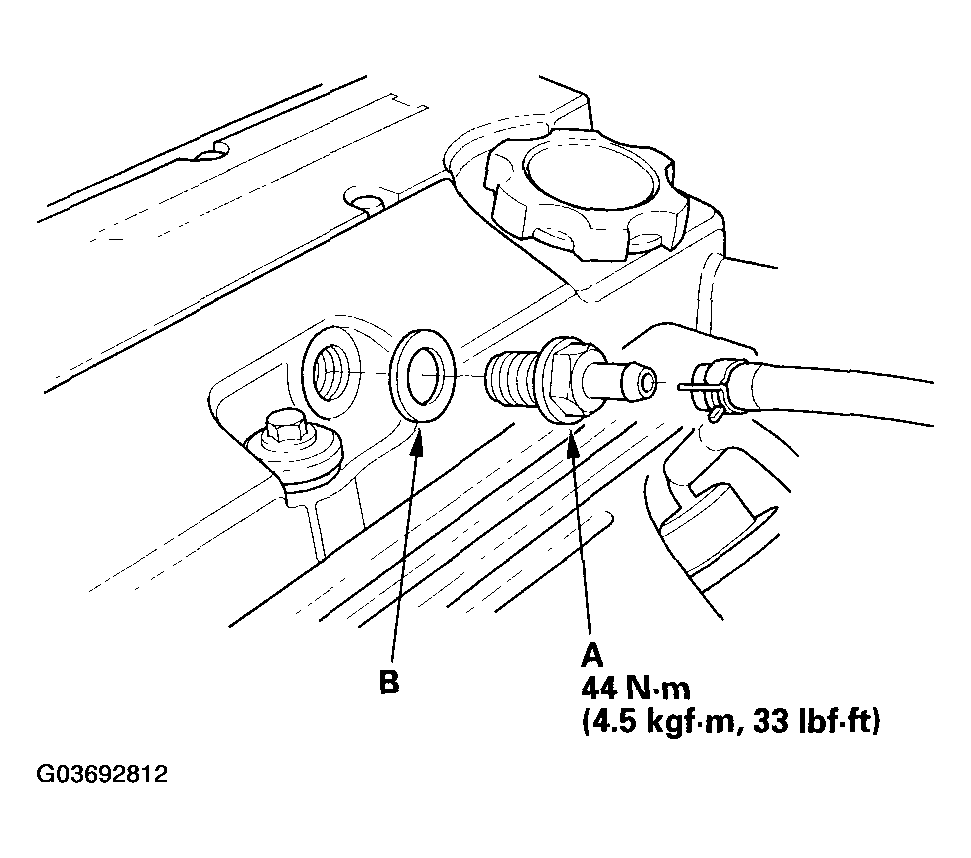

    Fig 1: Removing PCV Valve With Torque Specifications
    G03692812Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the valve in the reverse order of removal with a new washer (B).
