'01-04 models

  1. Remove the fuel tank vapor control valve cover (A).

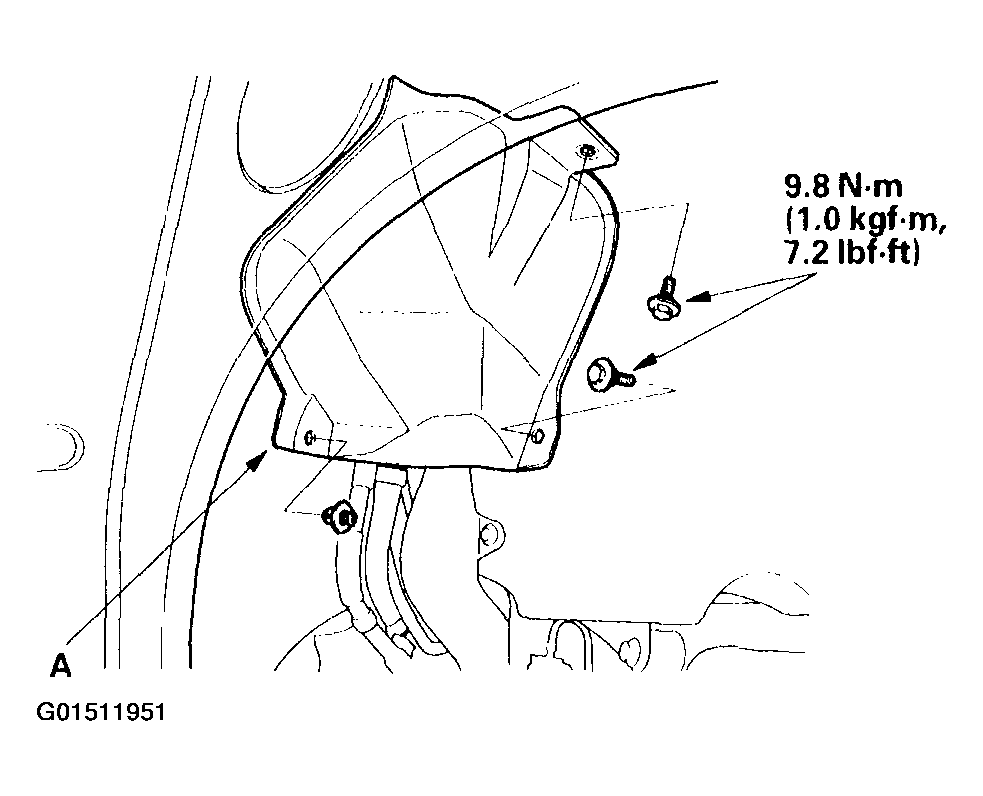

    Fig 1: Removing The Fuel Tank Vapor Control Valve Cover
    G01511951Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the bolts (A).

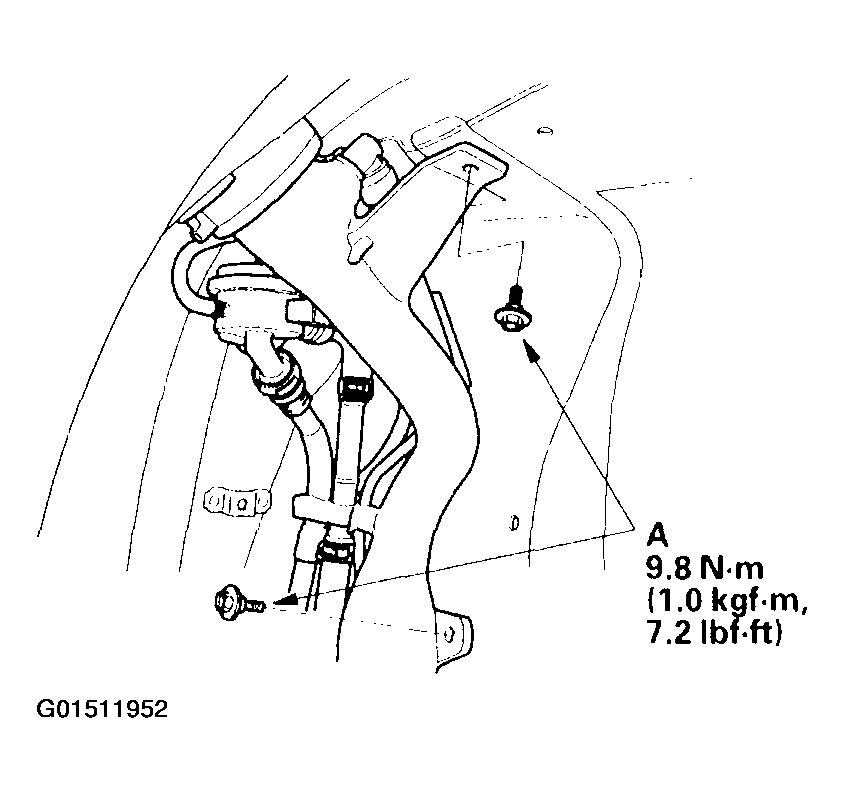

    Fig 2: Removing The Bolts
    G01511952Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the fuel tank vapor control valve (A).

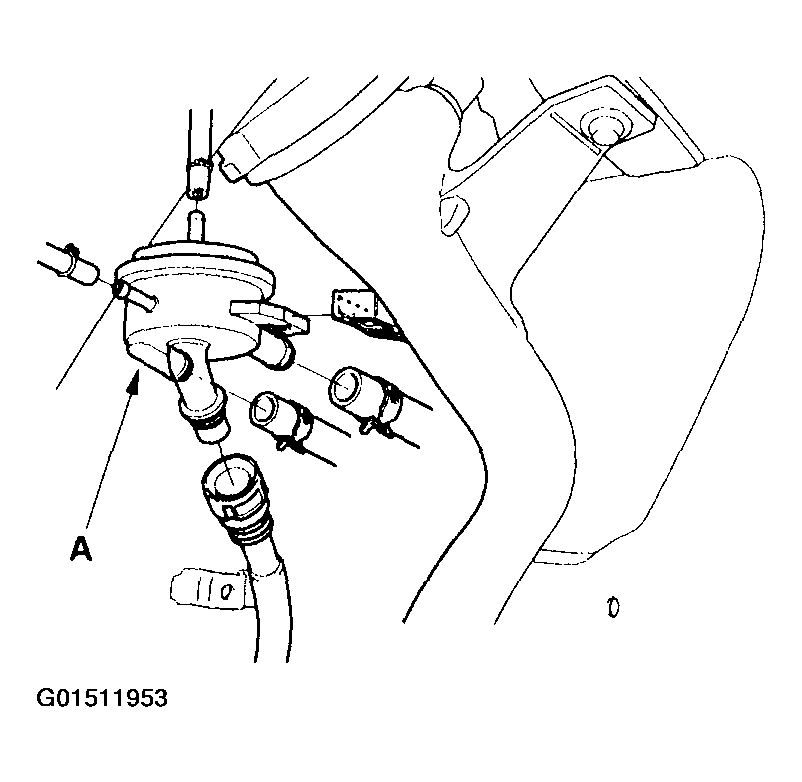

    Fig 3: Removing The Fuel Tank Vapor Control Valve
    G01511953Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the fuel tank vapor control valve in the reverse order of removal.
