Component Locations

The following illustrations are provided to assist in locating components. See Fig 1-Fig 30 .

Fig 1: Locating Engine Performance-Related Components (Accord 2.3L & 3.0L)

G98H07137

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Locating Engine Performance-Related Components (Accord 2.3L - 1 Of 2)

G98G07132

Courtesy of AMERICAN HONDA MOTOR CO., INC.

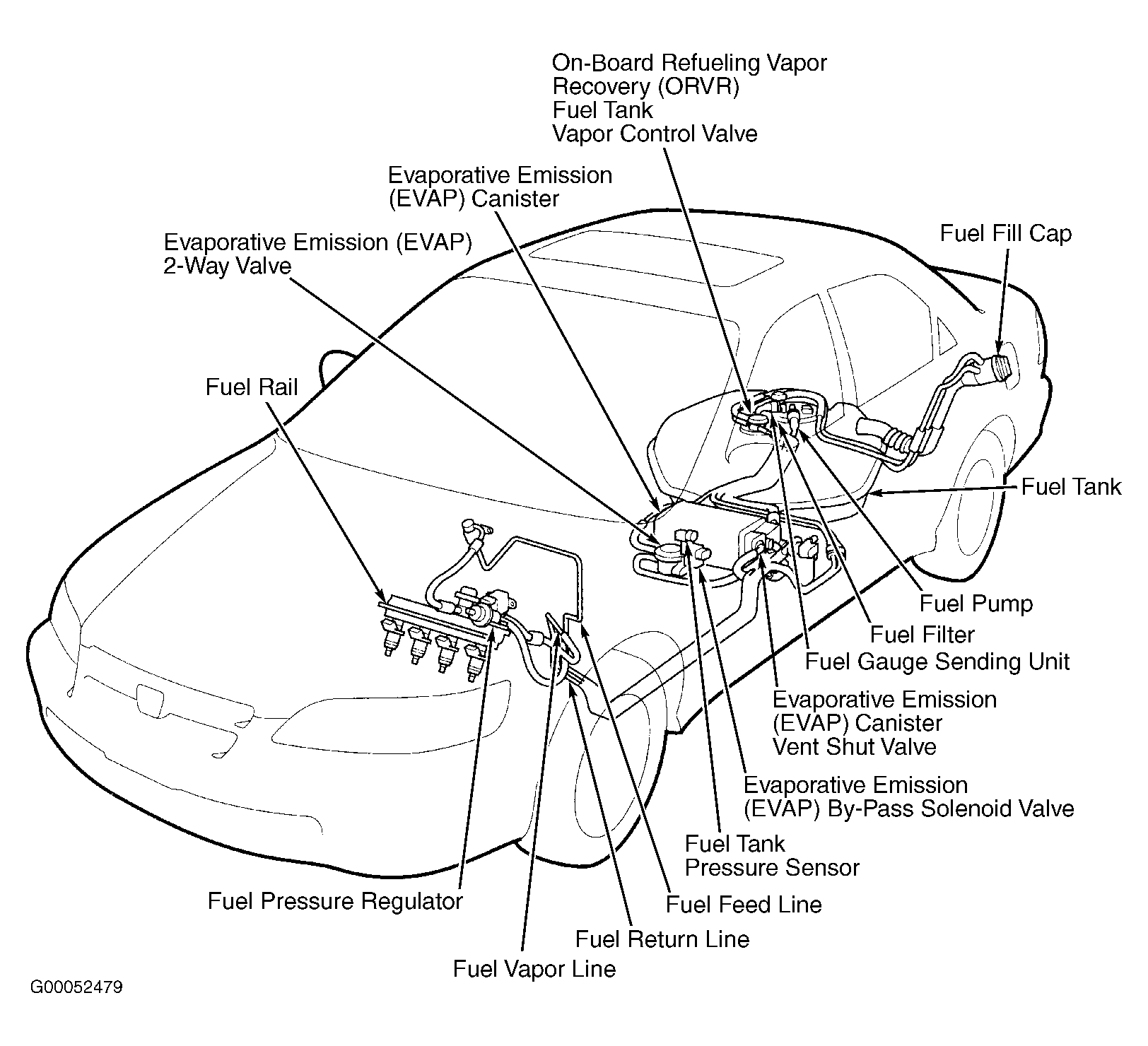

Fig 3: Locating Engine Performance-Related Components (Accord 2.3L - 2 Of 2)

G00052479

Courtesy of AMERICAN HONDA MOTOR CO., INC.

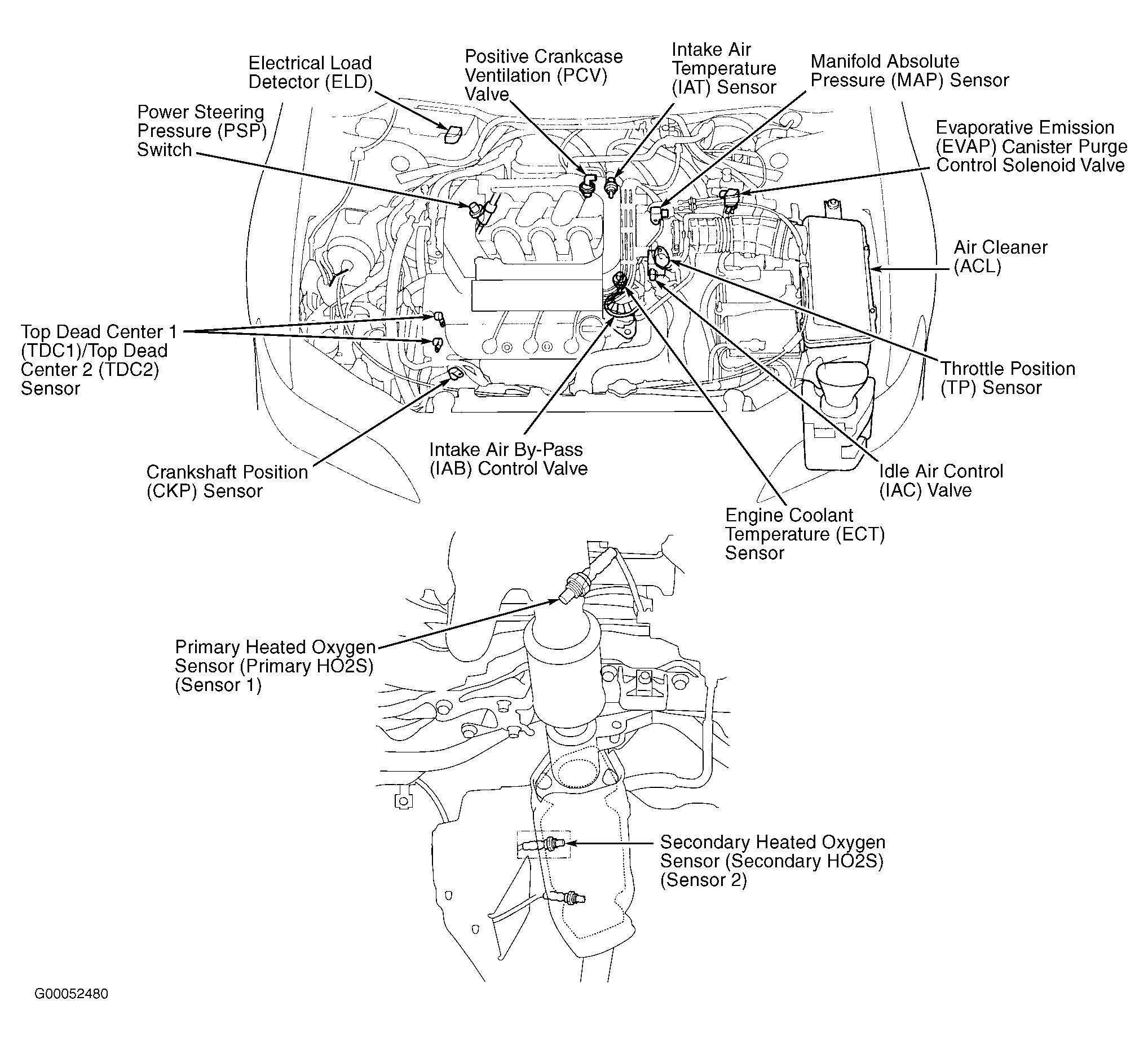

Fig 4: Locating Engine Performance-Related Components (Accord 3.0L - 1 Of 2)

G00052480

Courtesy of AMERICAN HONDA MOTOR CO., INC.

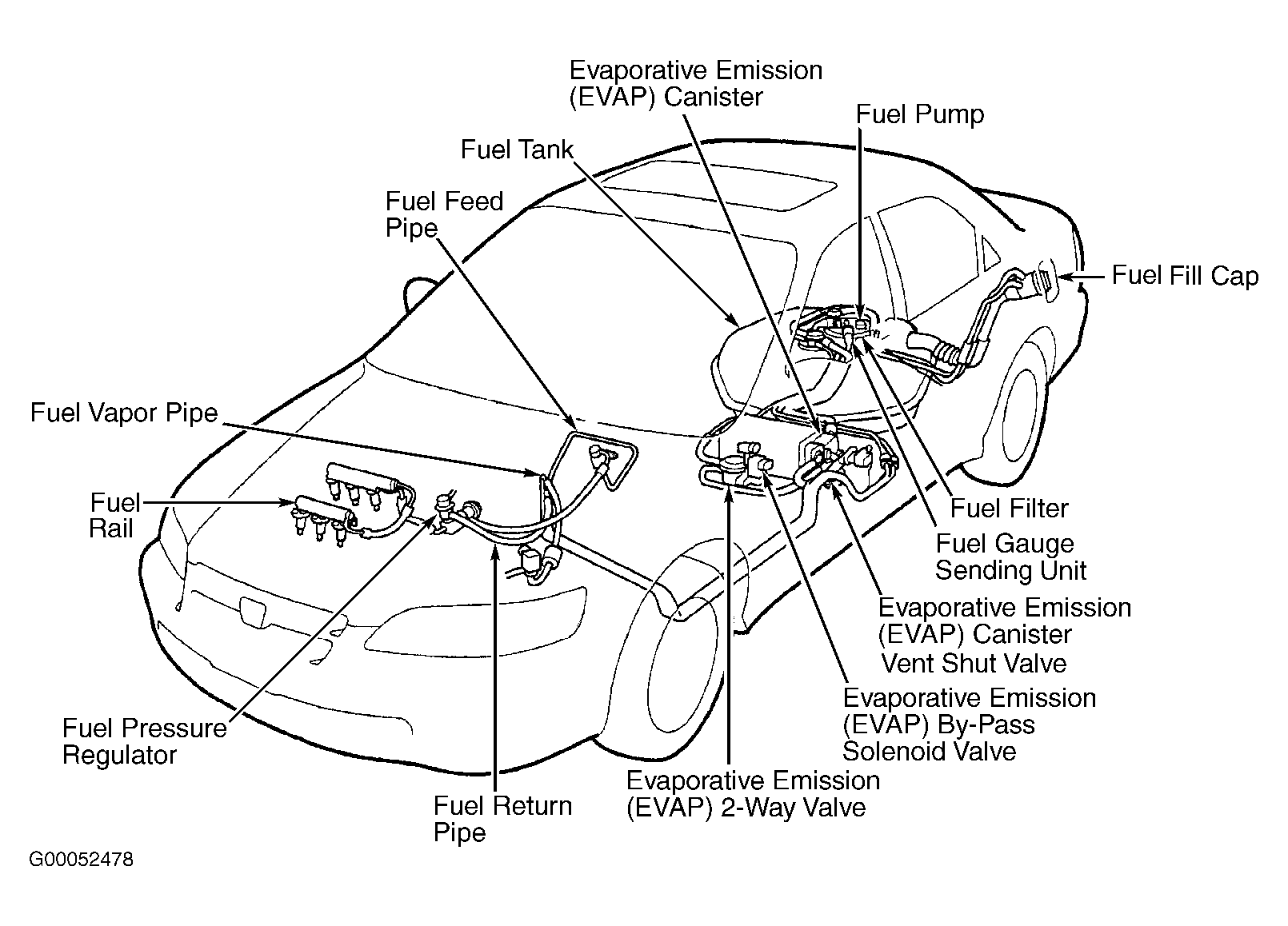

Fig 5: Locating Engine Performance-Related Components (Accord 3.0L - 2 Of 2)

G00052478

Courtesy of AMERICAN HONDA MOTOR CO., INC.

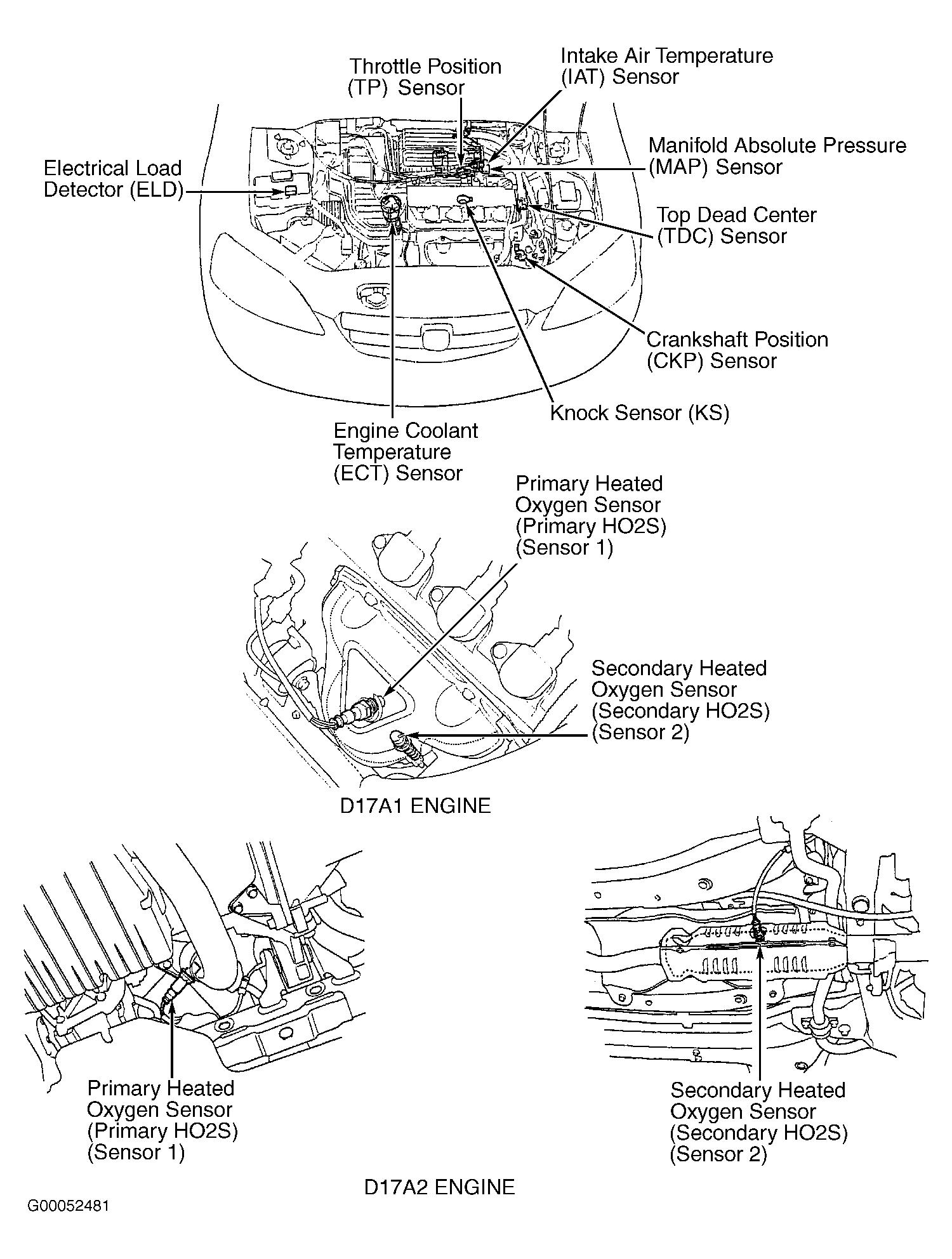

Fig 6: Locating Engine Performance-Related Components (Civic - 1 Of 4)

G00052481

Courtesy of AMERICAN HONDA MOTOR CO., INC.

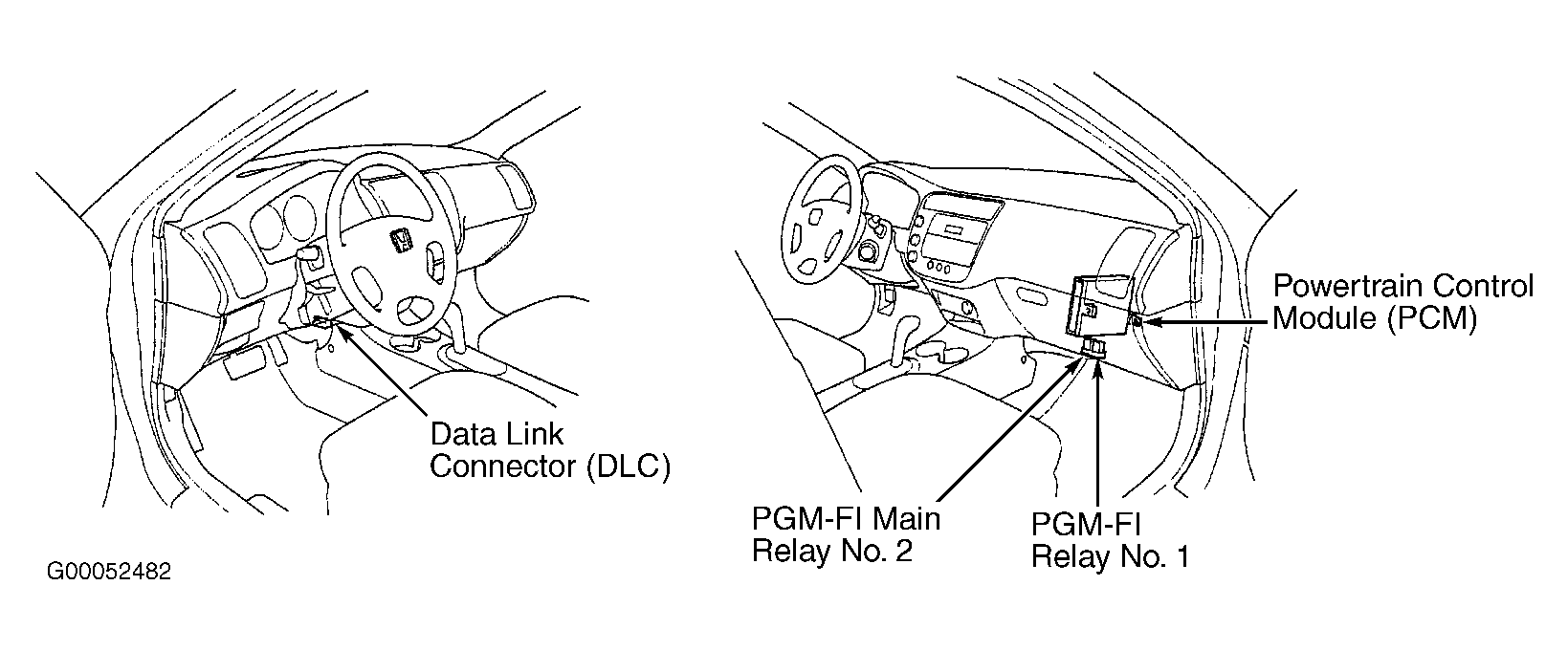

Fig 7: Locating Engine Performance-Related Components (Civic - 2 Of 4)

G00052482

Courtesy of AMERICAN HONDA MOTOR CO., INC.

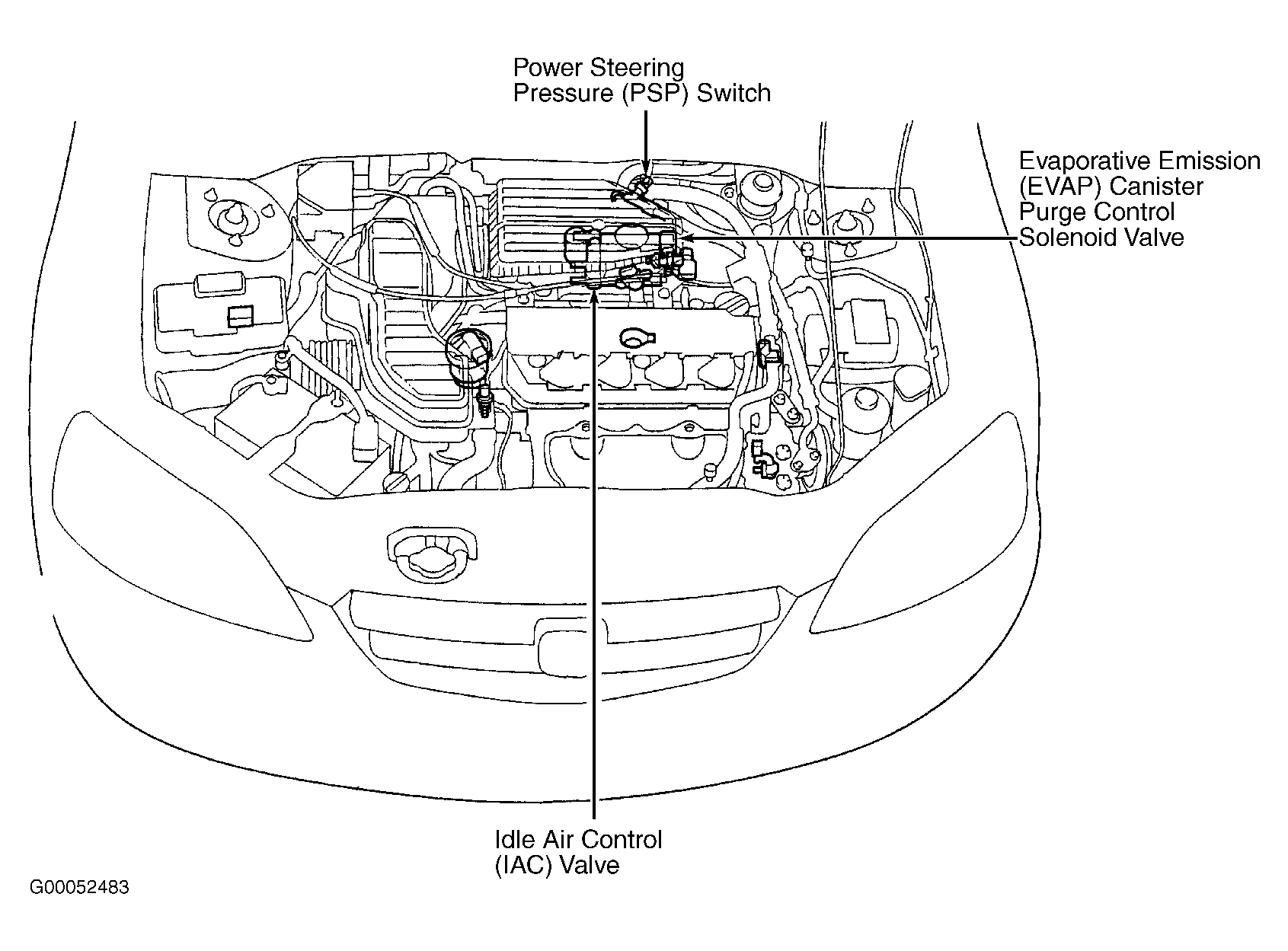

Fig 8: Locating Engine Performance-Related Components (Civic - 3 Of 4)

G00052483

Courtesy of AMERICAN HONDA MOTOR CO., INC.

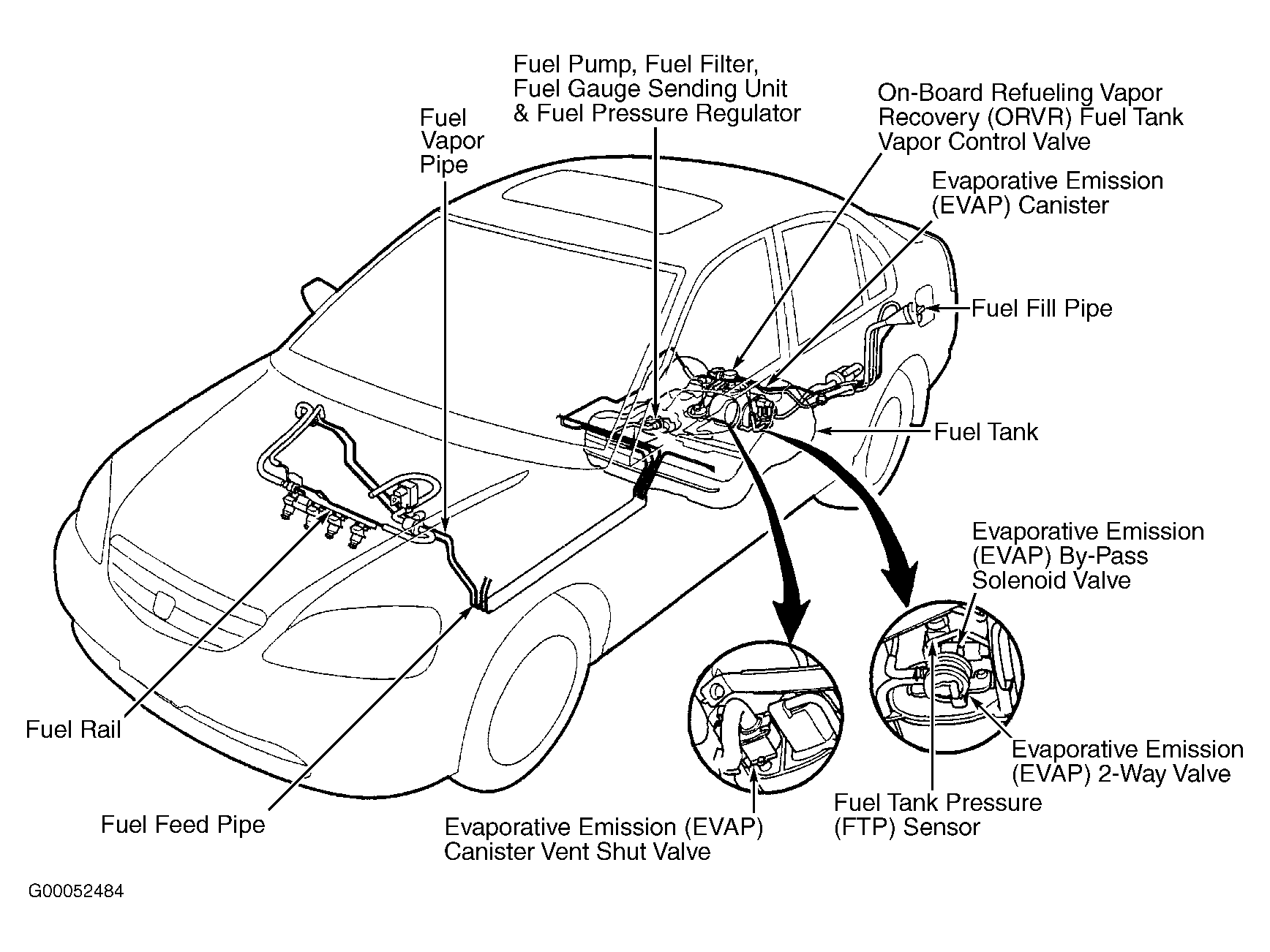

Fig 9: Locating Engine Performance-Related Components (Civic - 4 Of 4)

G00052484

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 10: Locating Engine Performance-Related Components (CR-V - 1 Of 4)

G99C51971

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 11: Locating Engine Performance-Related Components (CR-V - 2 Of 4)

G99D51972

Courtesy of AMERICAN HONDA MOTOR CO., INC.

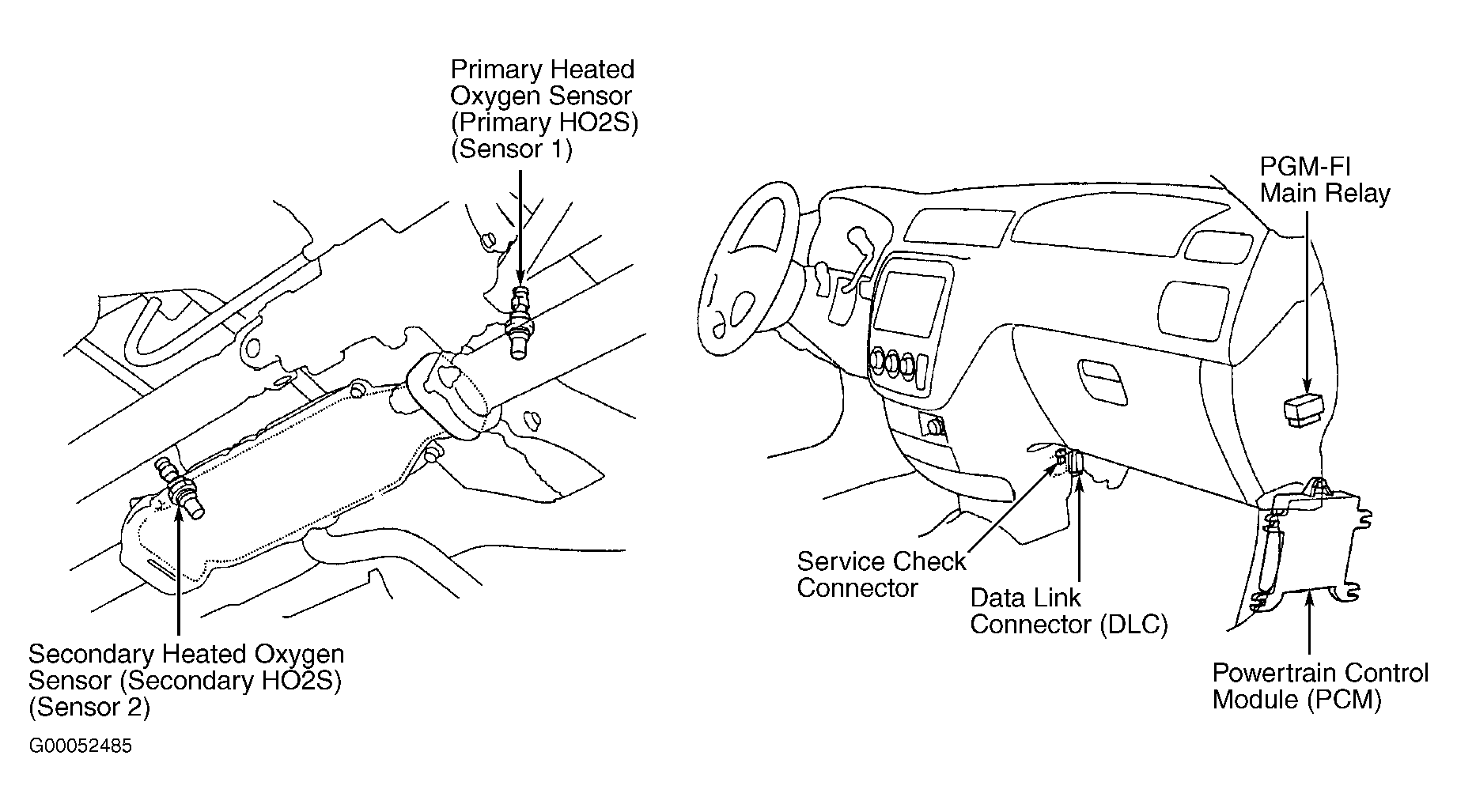

Fig 12: Locating Engine Performance-Related Components (CR-V - 3 Of 4)

G00052485

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 13: Locating Engine Performance-Related Components (CR-V - 4 Of 4)

G99B51970

Courtesy of AMERICAN HONDA MOTOR CO., INC.

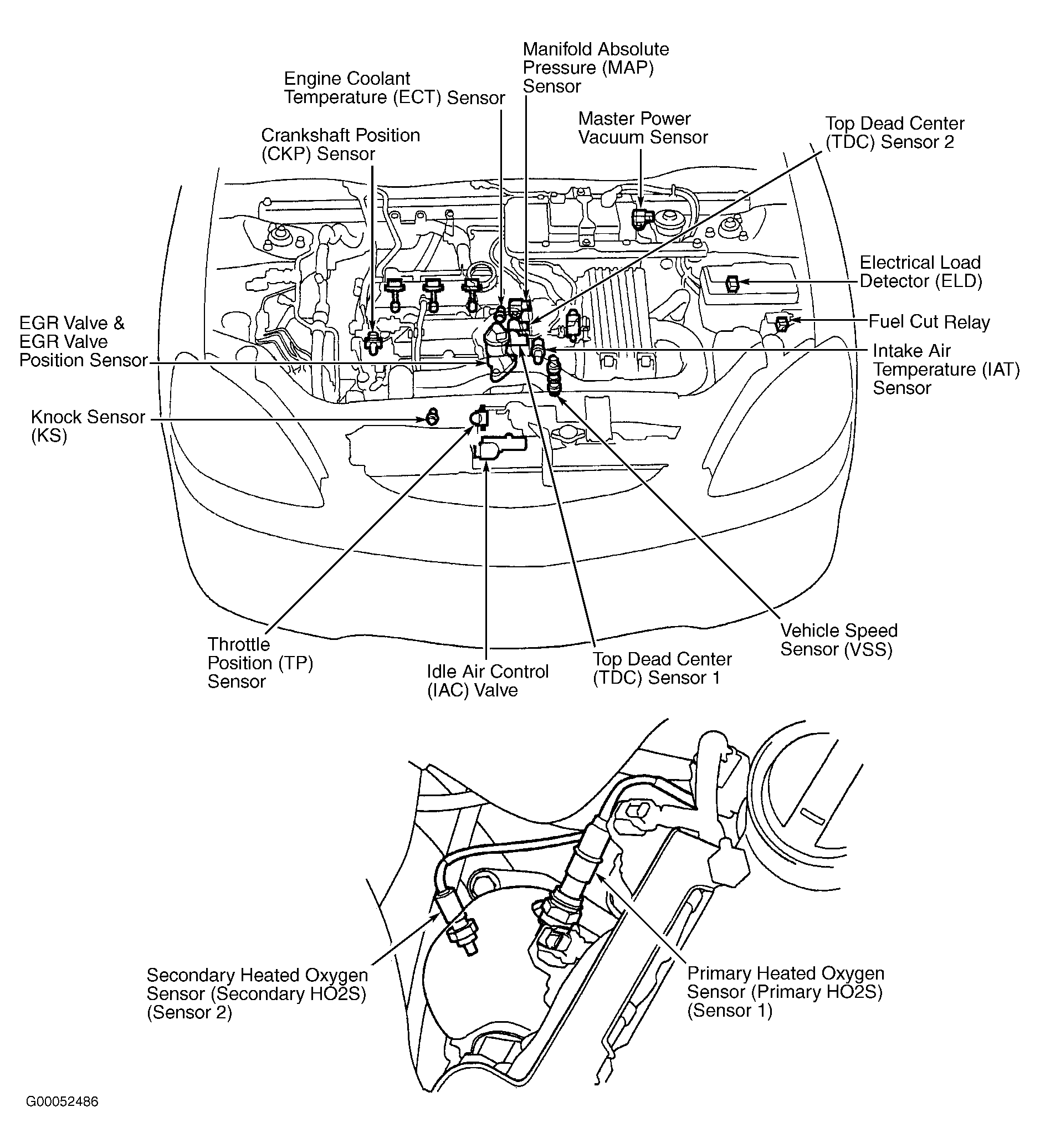

Fig 14: Locating Engine Performance-Related Components (Insight - 1 Of 2)

G00052486

Courtesy of AMERICAN HONDA MOTOR CO., INC.

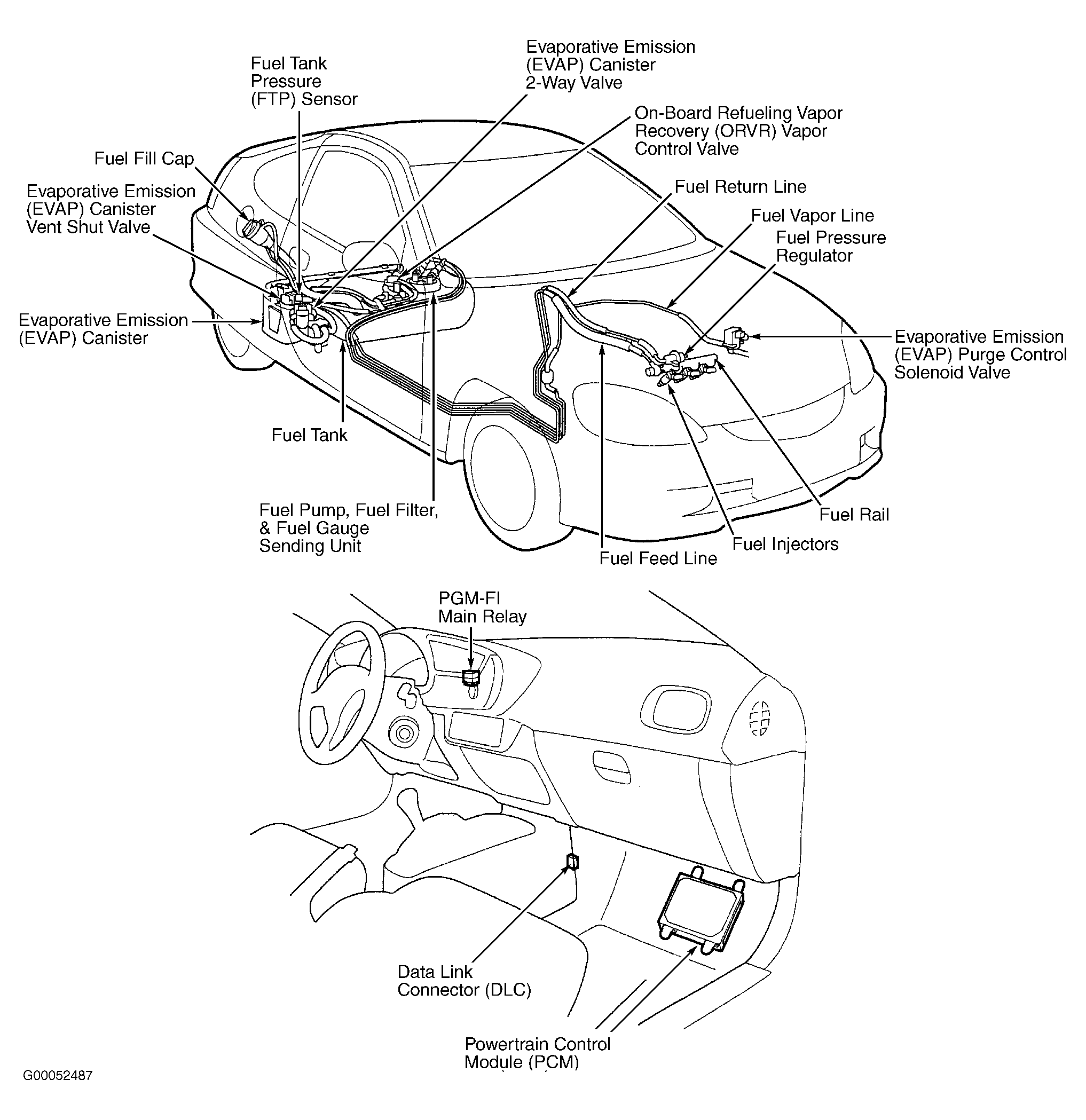

Fig 15: Locating Engine Performance-Related Components (Insight - 2 Of 2)

G00052487

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 16: Locating Engine Performance-Related Components (Odyssey - 1 Of 5)

G99G51967

Courtesy of AMERICAN HONDA MOTOR CO., INC.

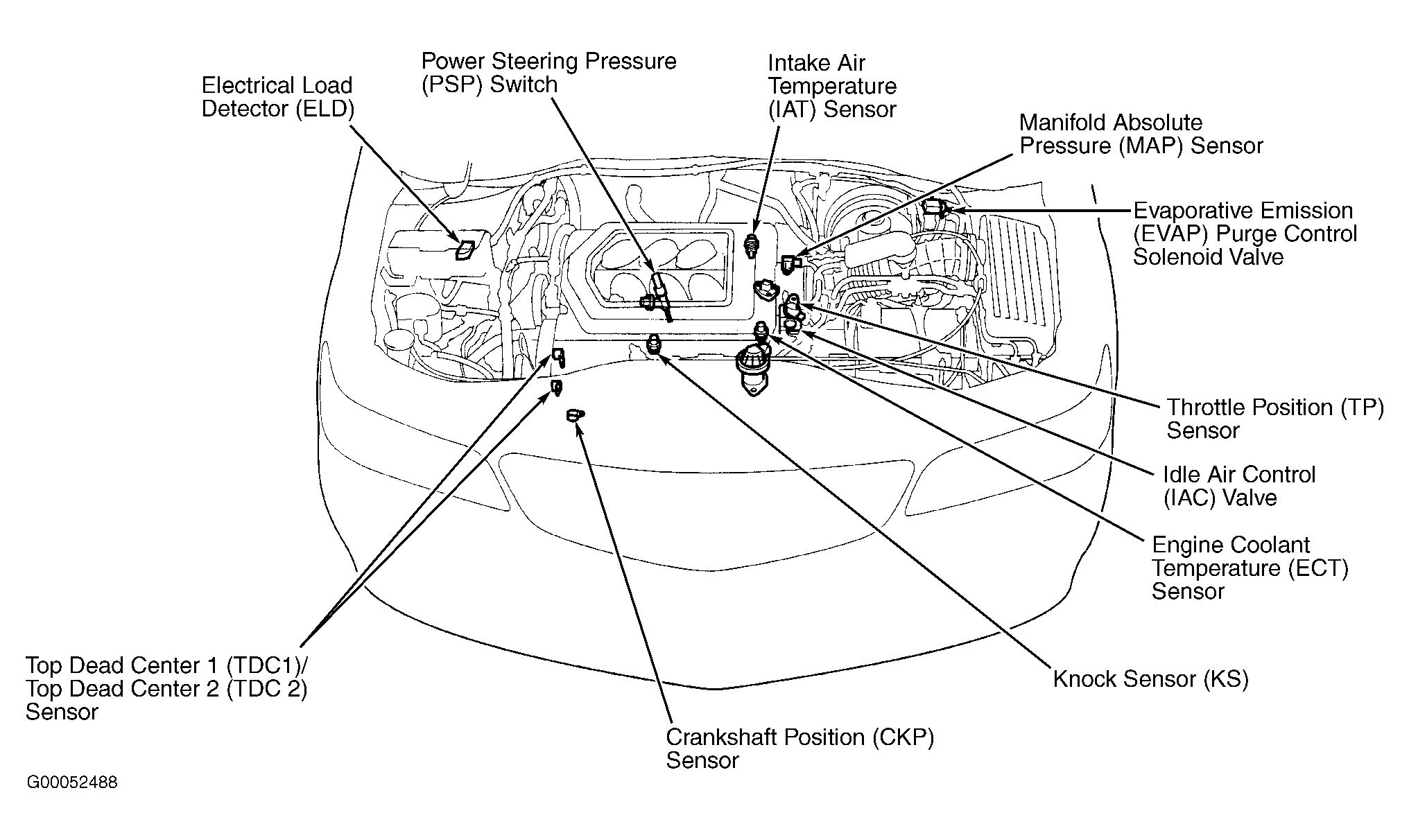

Fig 17: Locating Engine Performance-Related Components (Odyssey - 2 Of 5)

G00052488

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 18: Locating Engine Performance-Related Components (Odyssey - 3 Of 5)

G99I51969

Courtesy of AMERICAN HONDA MOTOR CO., INC.

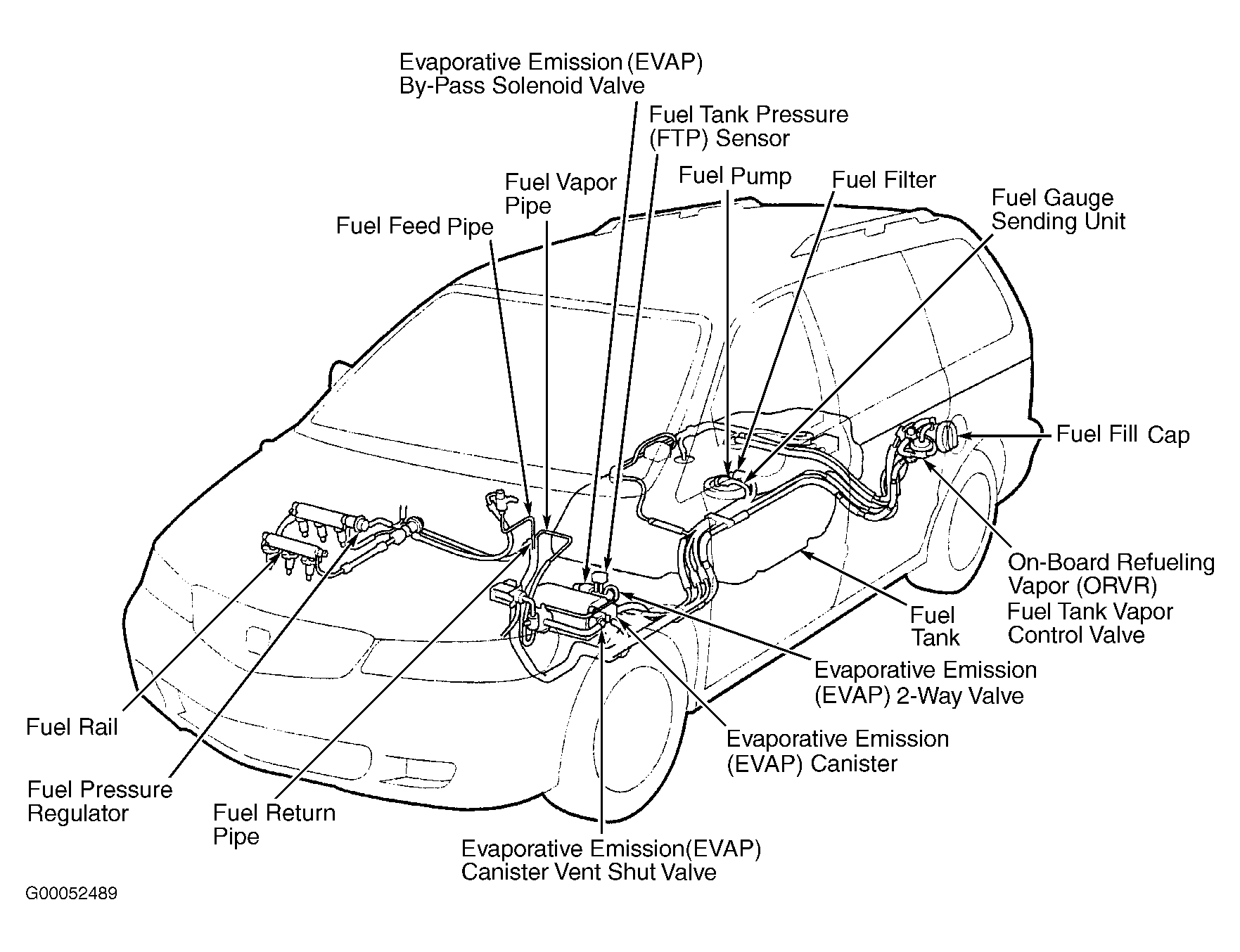

Fig 19: Locating Engine Performance-Related Components (Odyssey - 4 Of 5)

G00052489

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 20: Locating Engine Performance-Related Components (Odyssey - 5 Of 5)

G99F51966

Courtesy of AMERICAN HONDA MOTOR CO., INC.

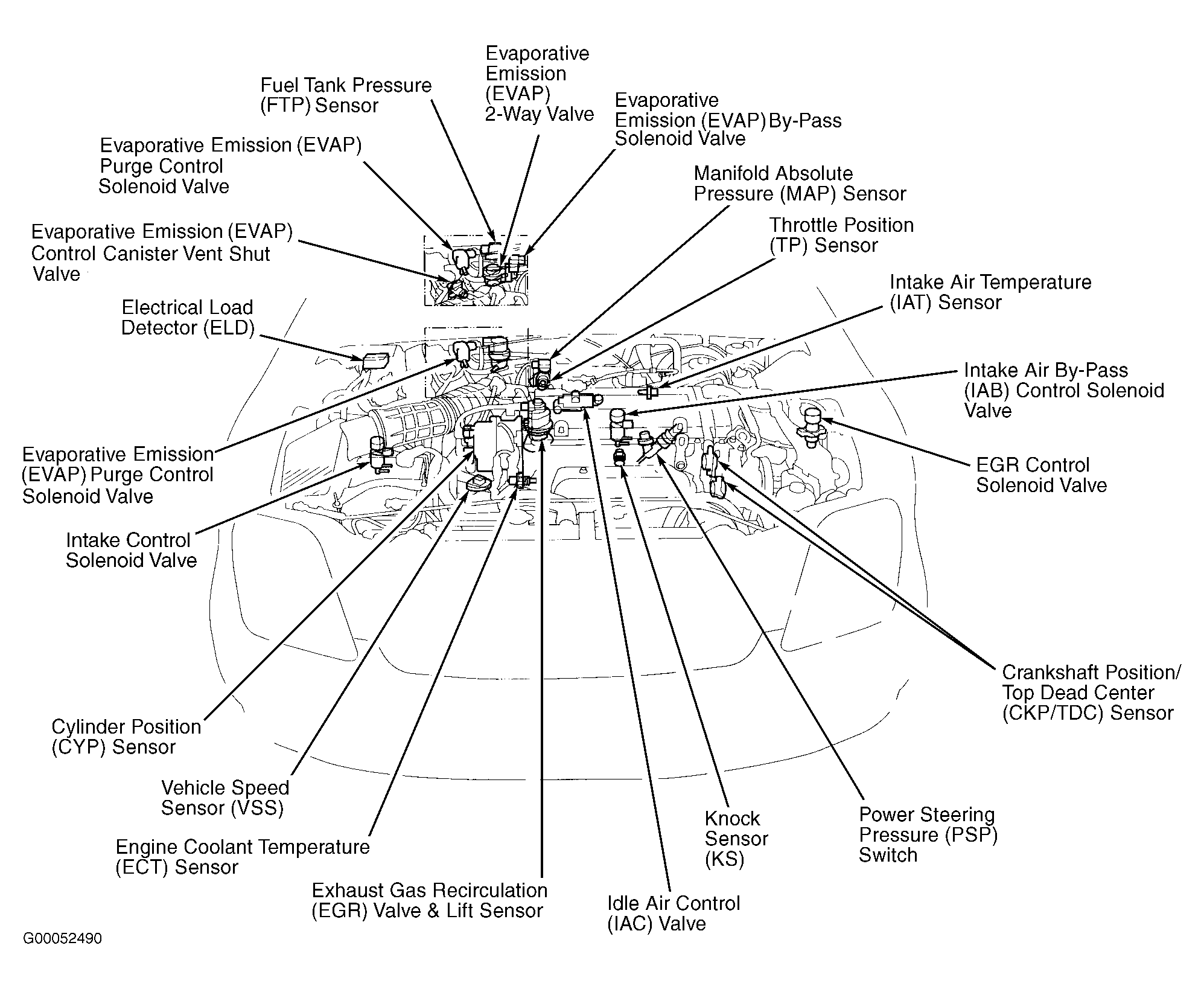

Fig 21: Locating Engine Performance-Related Components (Prelude - 1 Of 6)

G00052490

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 22: Locating Engine Performance-Related Components (Prelude - 2 Of 6)

G97B07120

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 23: Locating Engine Performance-Related Components (Prelude - 3 Of 6)

G97H07241

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 24: Locating Engine Performance-Related Components (Prelude - 4 Of 6)

G97J07242

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 25: Locating Engine Performance-Related Components (Prelude - 5 Of 6)

G99E51973

Courtesy of AMERICAN HONDA MOTOR CO., INC.

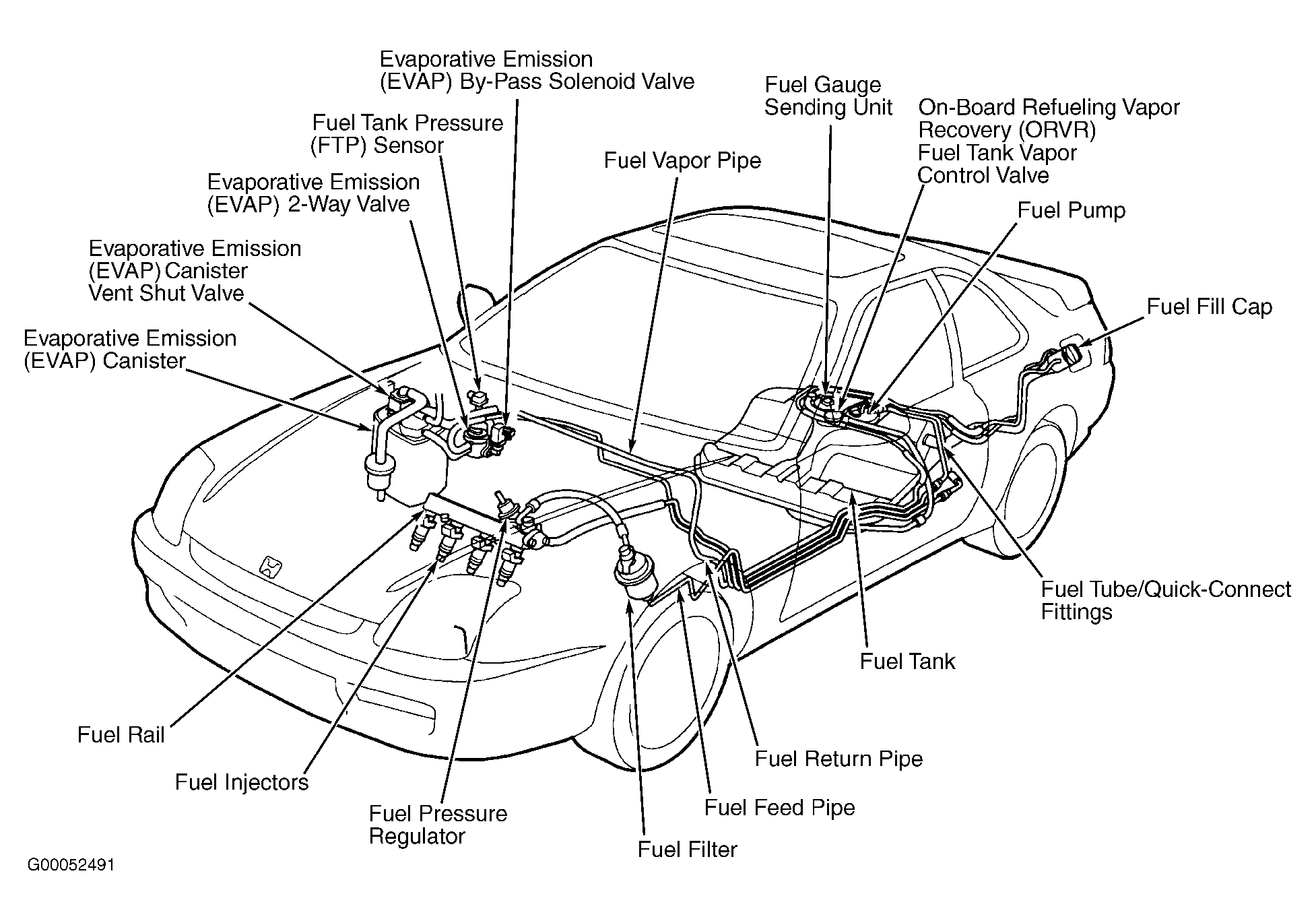

Fig 26: Locating Engine Performance-Related Components (Prelude - 6 Of 6)

G00052491

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 27: Locating Engine Performance-Related Components (S2000 - 1 Of 4)

G00012241

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 28: Locating Engine Performance-Related Components (S2000 - 2 Of 4)

G00012237

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 29: Locating Engine Performance-Related Components (S2000 - 3 Of 4)

G00012238

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 30: Locating Engine Performance-Related Components (S2000 - 1 Of 4)

G00012240

Courtesy of AMERICAN HONDA MOTOR CO., INC.
