Key Interlock System
NOTE:
For circuit identification and component locations, see WIRING DIAGRAMS
.
- Disconnect steering lock harness connector located behind dash, on lower left side steering column. See KEY INTERLOCK SOLENOID under COMPONENT TESTS. Connect battery voltage to steering lock harness connector terminal No. 5 (White/Yellow wire) and connect ground to terminal No. 3 (White/Red wire). Turn ignition key to ACC position. Push in on ignition key. A clicking sound should be heard from key interlock solenoid. If key interlock solenoid and switch operates properly, go to next step. If key interlock solenoid or switch does not operate properly, replace ignition key/cylinder lock assembly. See STEERING COLUMN SWITCHES article in ACCESSORIES & EQUIPMENT.

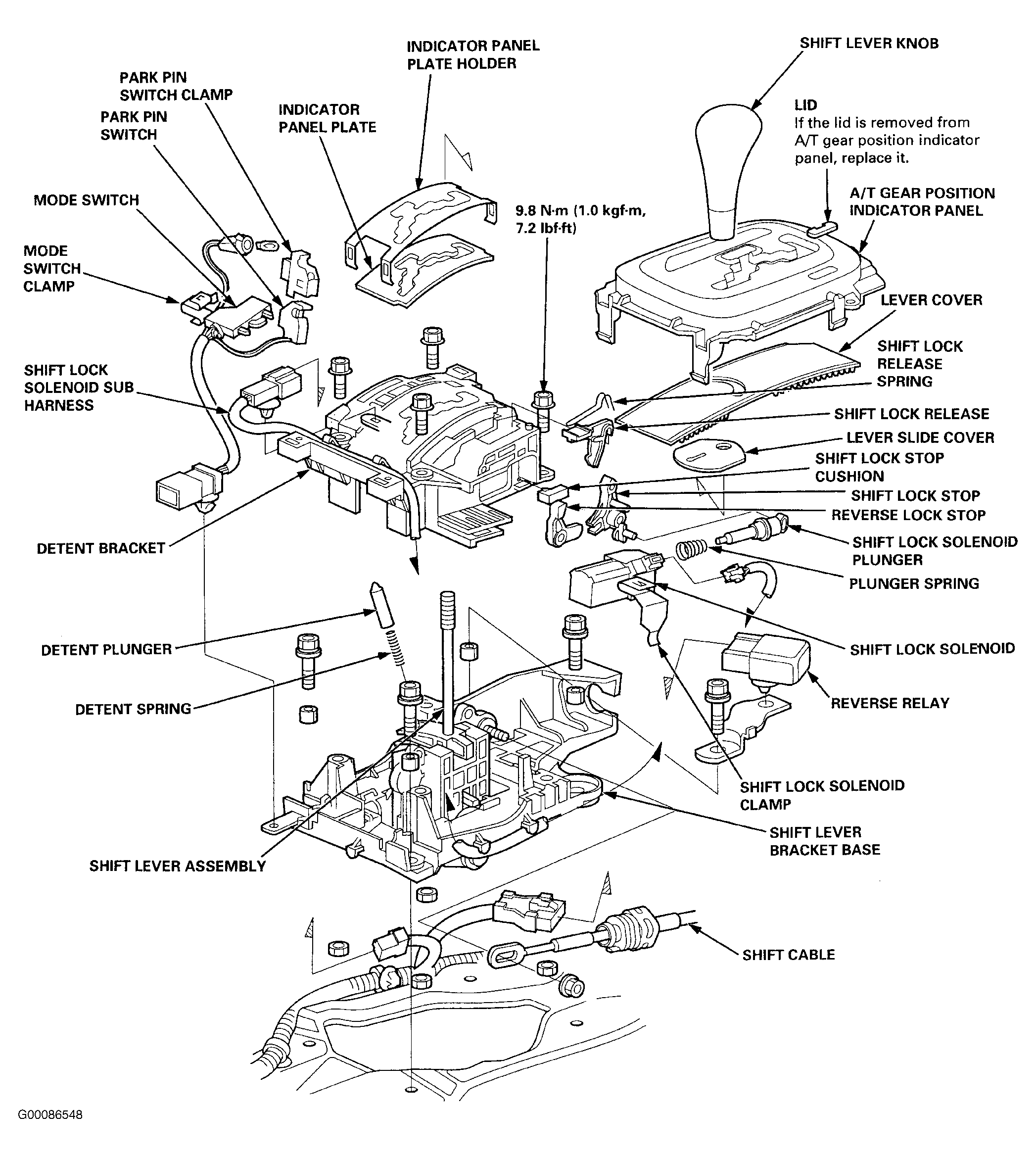

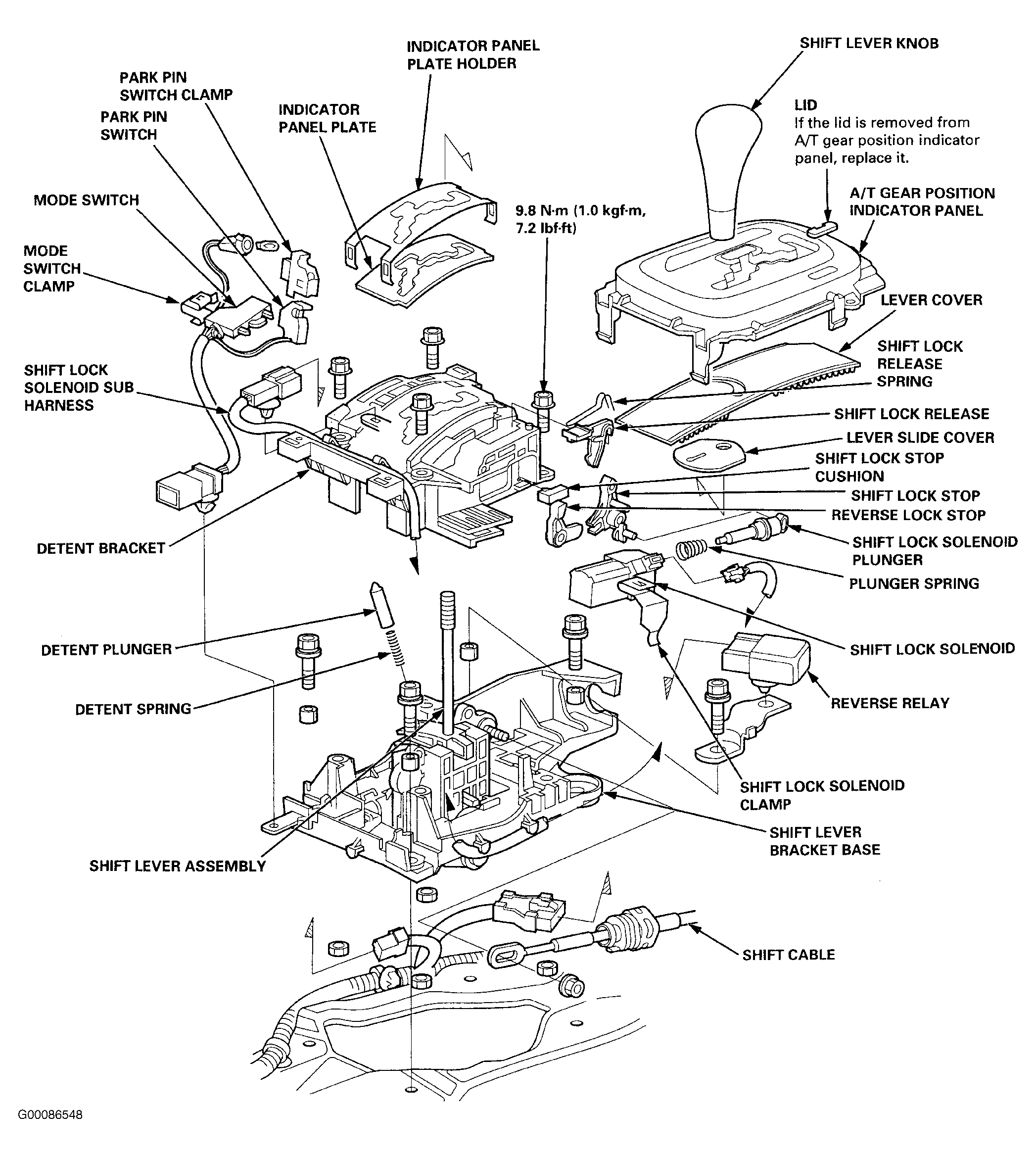

- Reconnect steering lock harness connector. Disconnect mode switch 8-pin harness connector located below center console. See Fig 1 . Turn ignition switch to ACC position. Check voltage between mode switch harness connector terminal No. 8 (White/Red wire) and ground while pushing in on ignition key. See Fig 2 . If voltage exists, go to next step. If voltage does not exist, repair open in White/Red wire between mode switch harness connector and steering lock connector.
- Check for continuity between mode switch harness connector terminal No. 3 (Black/White wire) and ground. If continuity exists, replace mode/parking pin switch assembly. See PARKING PIN SWITCH under REMOVAL & INSTALLATION. If continuity does not exist, repair open in Black/White wire between mode switch harness connector and ground connector.
