EVAP Two Way Valve Test

Special Tools Required

• Vacuum pump/gauge, 0-30 in.Hg A973X-041-XXXXX
• Vacuum/pressure gauge, 0-4 in.Hg 07JAZ-001000B

1. Remove the fuel fill cap.
2. Disconnect the vapor line from the EVAP two way valve (A). Connect the line to a T-fitting (B) from the vacuum gauge and the vacuum pump as shown.

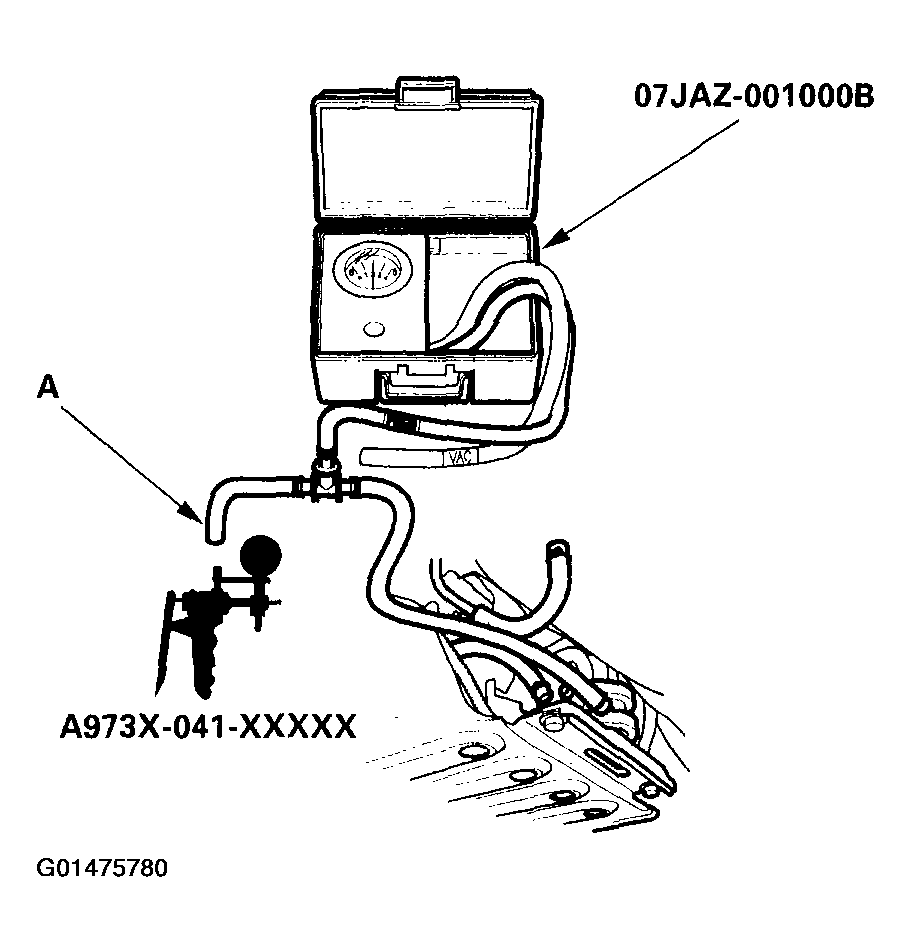

   Fig 1: Disconnecting Vapor Line From EVAP Two Way Valve

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Apply vacuum slowly and continuously while watching the gauge. The vacuum should stabilize momentarily at 0.8-2.1 kPa (6-16 mmHg, 0.2-0.6 in.Hg).

   If the vacuum stabilizes (valve opens) below 0.8 kPa (6 mmHg, 0.2 in.Hg) or above 2.1 kPa (16 mmHg, 0.6 in.Hg), install a new valve and retest.

4. Move the vacuum pump hose from the vacuum fitting to the pressure fitting, and move the vacuum gauge hose from the vacuum side to the pressure side (A) as shown.

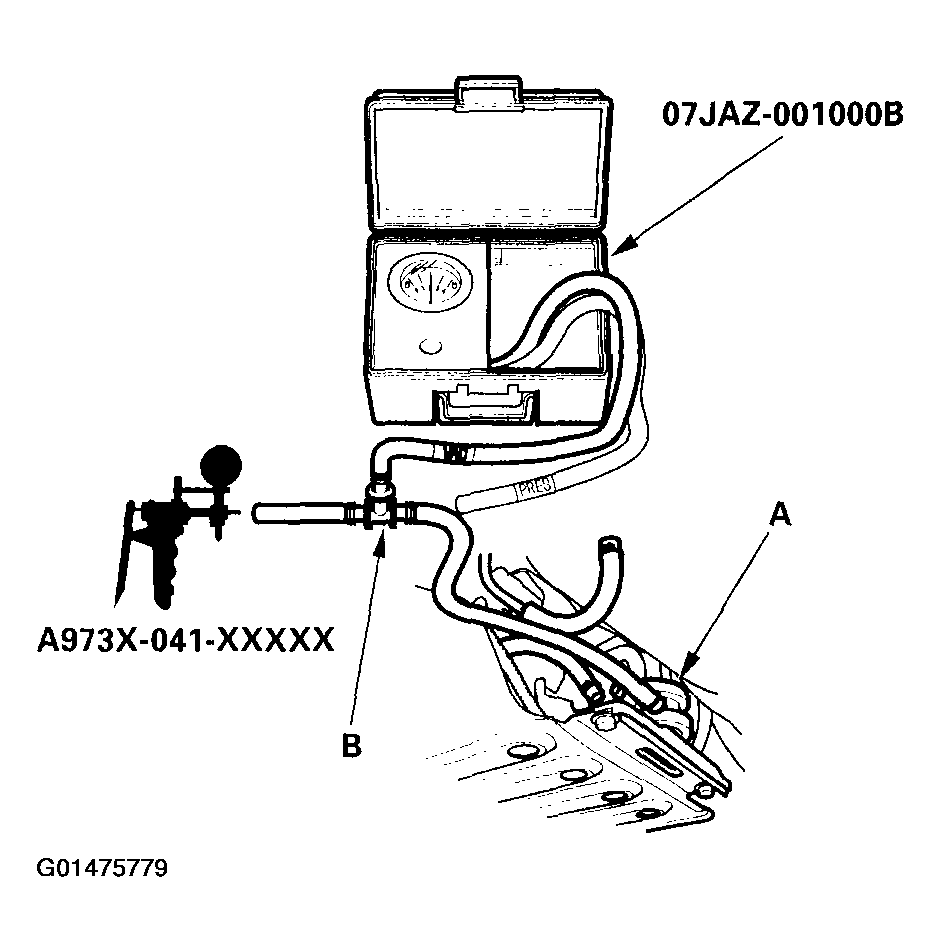

   Fig 2: Moving The Vacuum Gauge Hose From The Vacuum Side To The Pressure Side

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Slowly pressurize the vapor line while watching the gauge. The pressure should stabilize momentarily above 1.0 kPa (8 mmHg, 0.3 in.Hg).
   • If the pressure momentarily stabilizes (valve opens) above 1.0 kPa (8 mmHg, 0.3 in.Hg), the valve is OK.
   • If the pressure stabilizes below 1.0 kPa (8 mmHg, 0.3 in.Hg), install a new valve and retest.
