Air Cleaner Removal/Installation

  1. Remove the clamp (A), the nut (B), and the bolts (C).

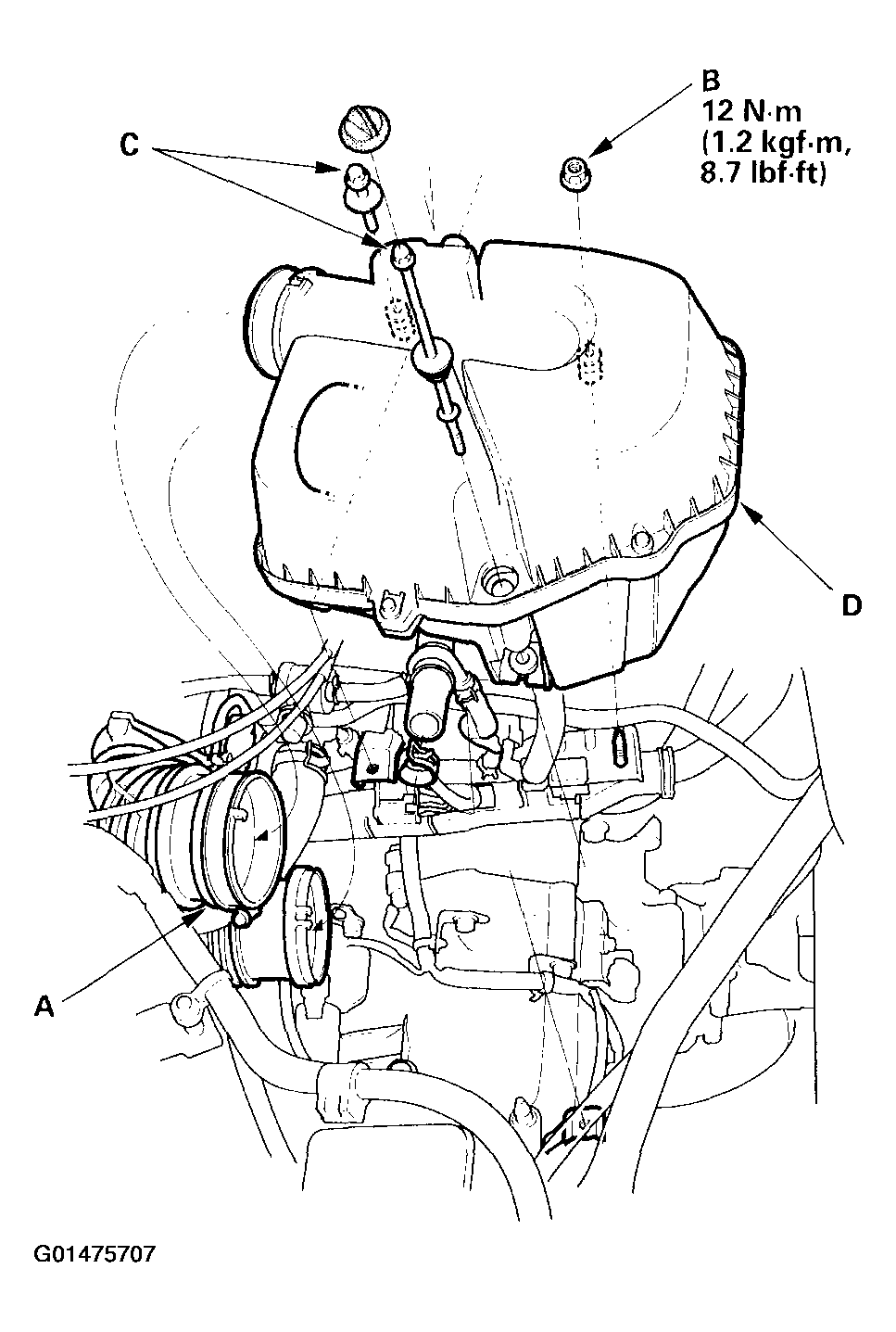

    Fig 1: Removing Clamp, Nut & Bolts
    G01475707Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the air cleaner (D).
  3. Install in the reverse order of removal.
