Throttle Body Removal/Installation

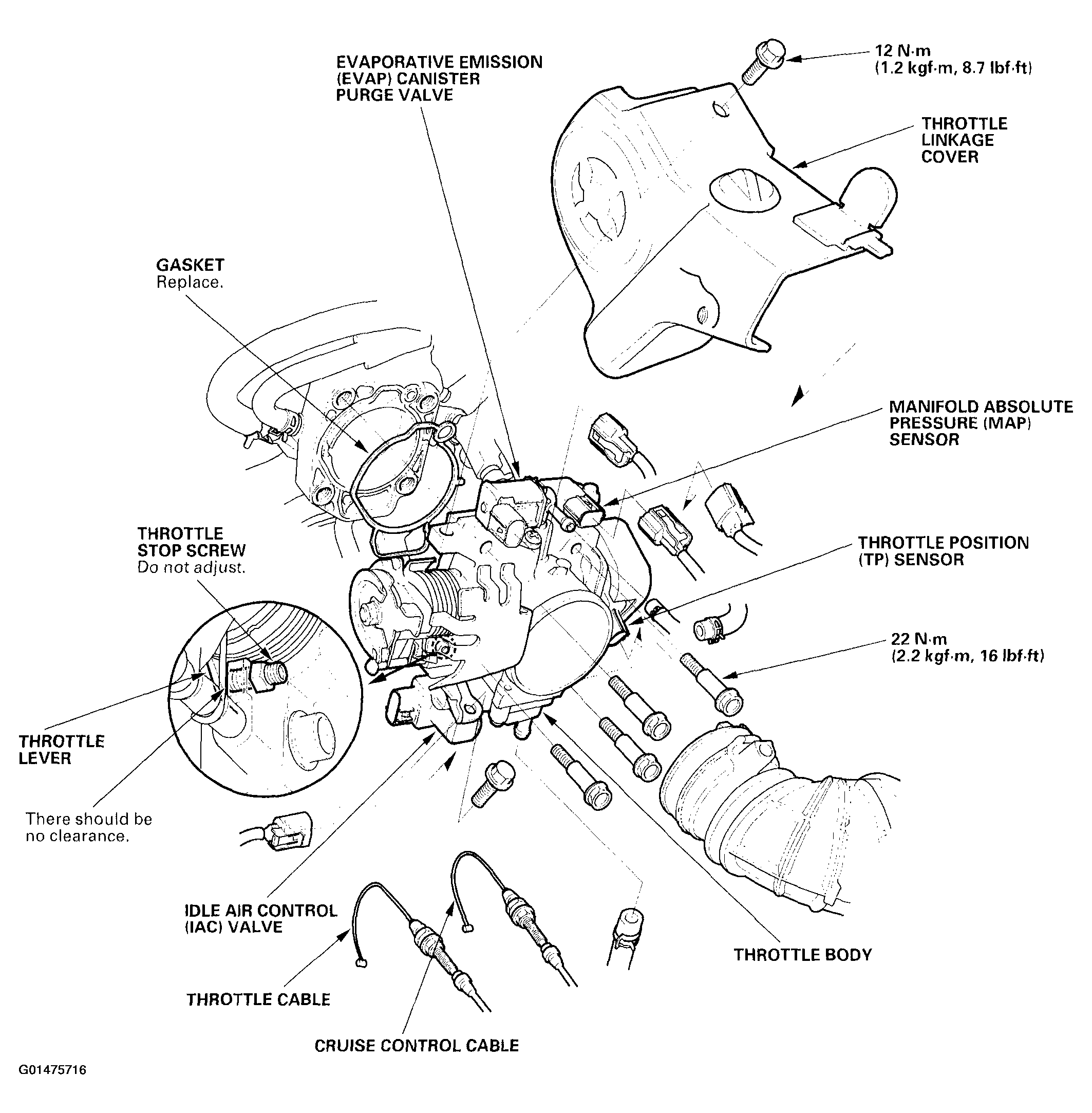

Fig 1: Removing/Installing Throttle Body
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
