Key Interlock Solenoid
- Remove the driver's dashboard lower cover. See DASHBOARD LOWER COVER under REMOVAL & INSTALLATION.
- Remove screws from lower steering column cover. Remove upper and lower steering column covers. Disconnect the key switch connector (6-pin) from the steering lock assembly.
- Insert the ignition key in the key cylinder, then turn the ignition key to ACC (I) position.

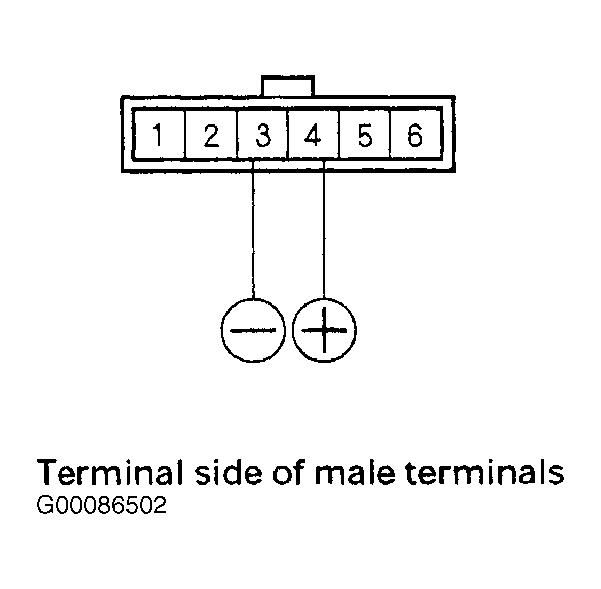

- Connect the battery positive terminal to steering lock assembly connector terminal No. 4, and connect the battery negative terminal to No. 3 terminal. See Fig 1. Make sure that the ignition key cannot be turned to LOCK (0) position. Release the battery terminals, and make sure that the key can be turned to LOCK (0) position and removed from cylinder.
- If the key interlock solenoid works improperly, replace the ignition key cylinder/steering lock assembly. See appropriate STEERING COLUMNS article in STEERING.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
