Air Cleaner Removal/Installation

  1. Remove the nuts (A) and the stud (B).

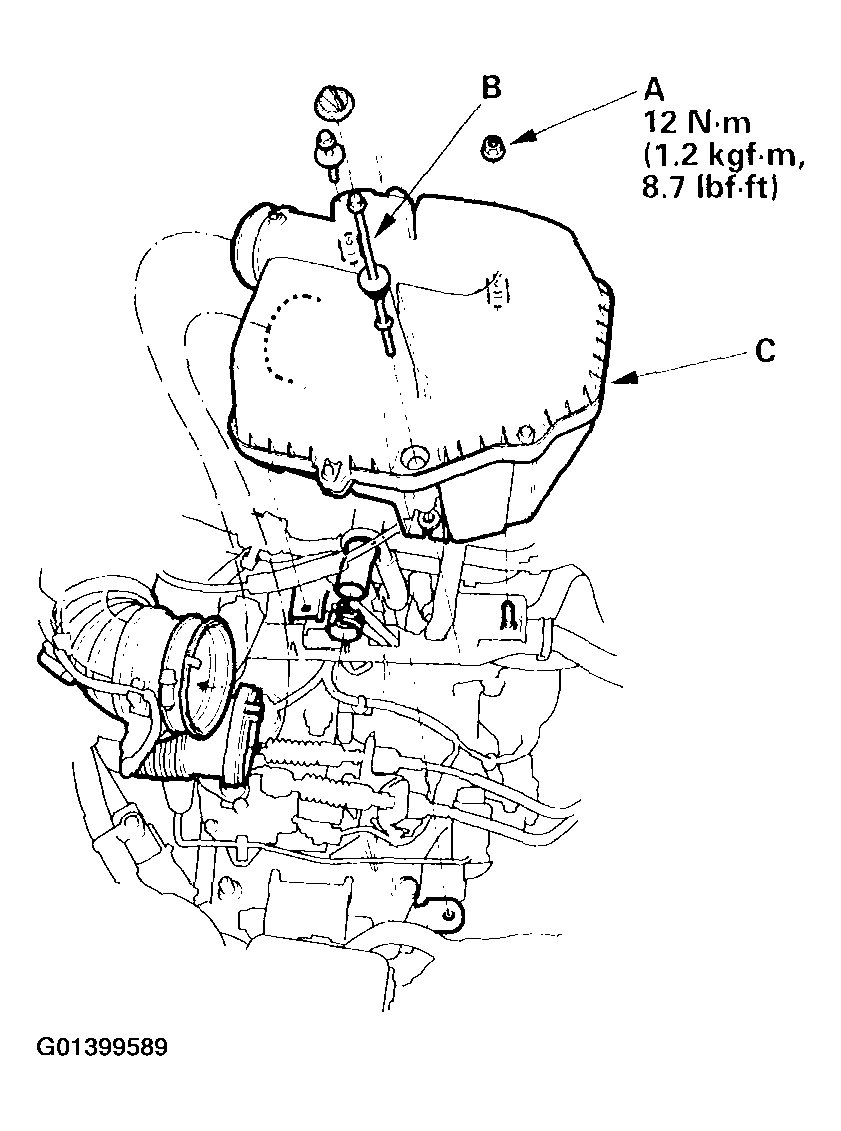

    Fig 1: Removing The Air Cleaner
    G01399589Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the air cleaner (C).
  3. Install in the reverse order of removal.
