PCV Valve Replacement

  1. Disconnect the PCV hose.
  2. Remove the PCV valve (A).

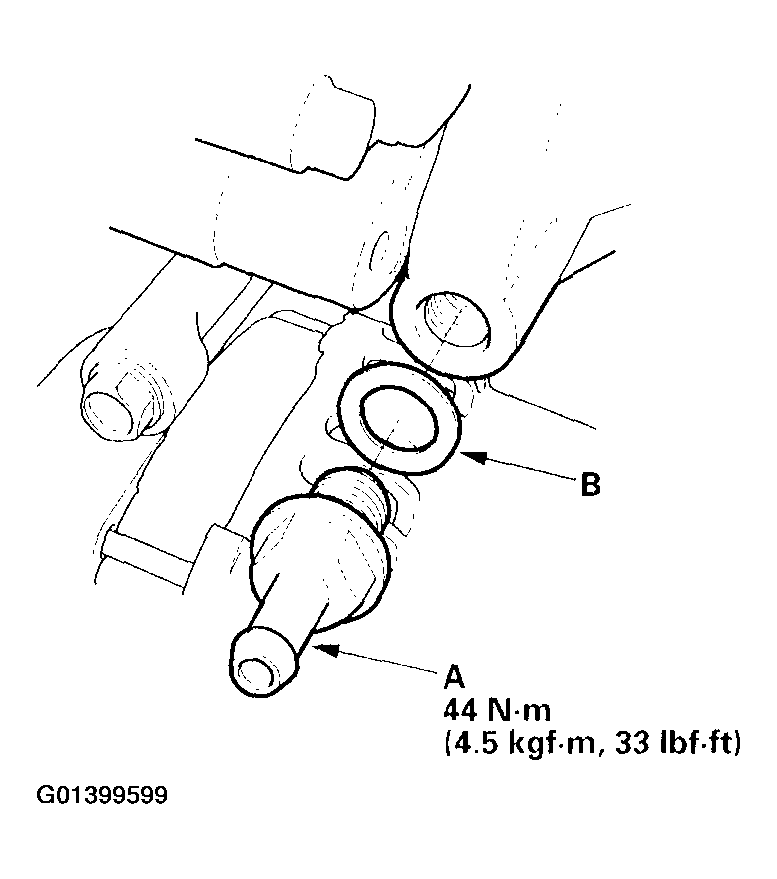

    Fig 1: Removing PCV Valve
    G01399599Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the parts in the reverse order of removal with a NEW gasket (B).
