Driving Position Memory Switch Test/Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 10P connector from the memory switch (A).

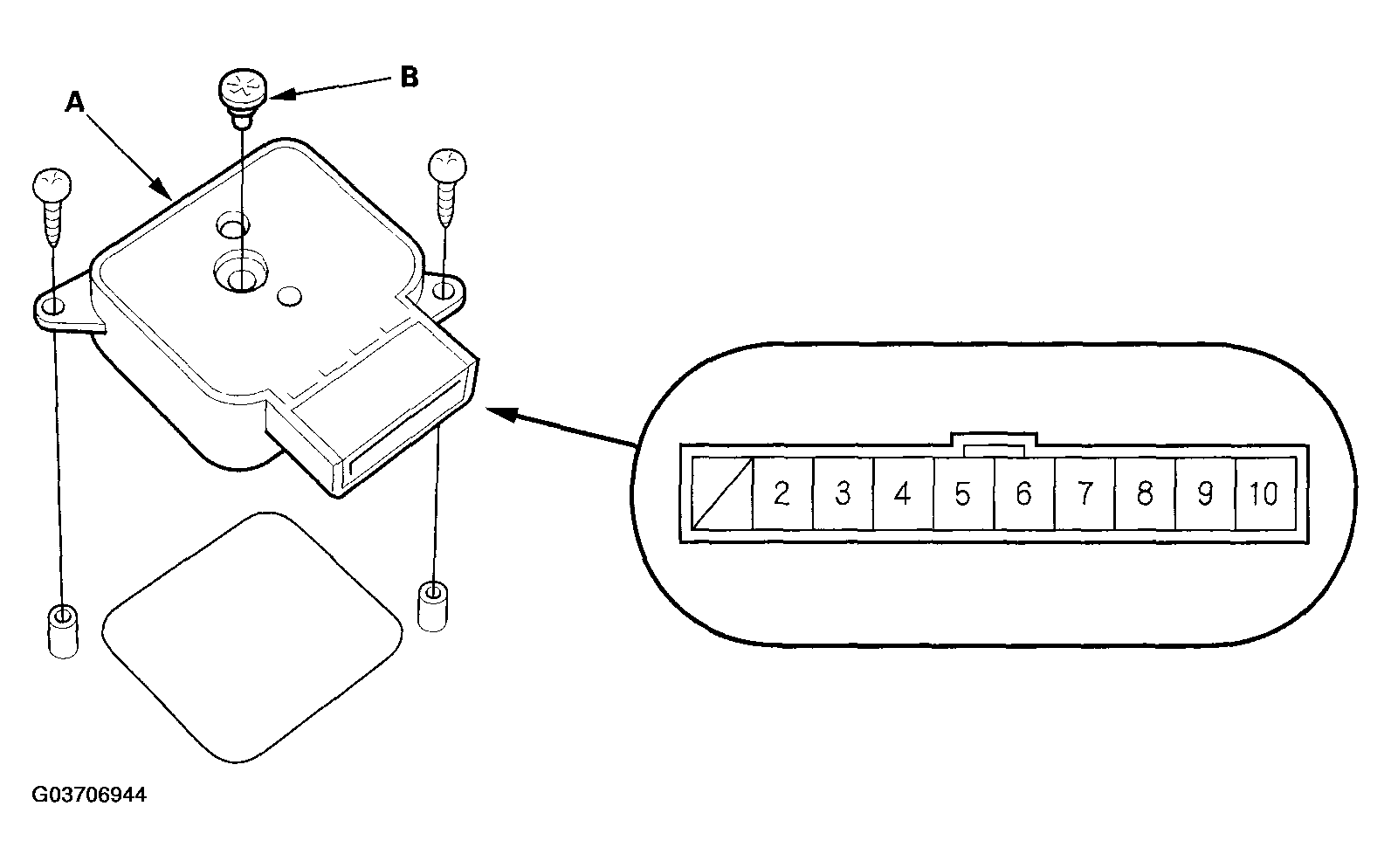

Fig 1: Disconnecting 10P Connector From Memory Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the two screws, then remove the switch from the door panel.
Check for continuity between the terminals in each switch position according to the table shown in Fig 2.

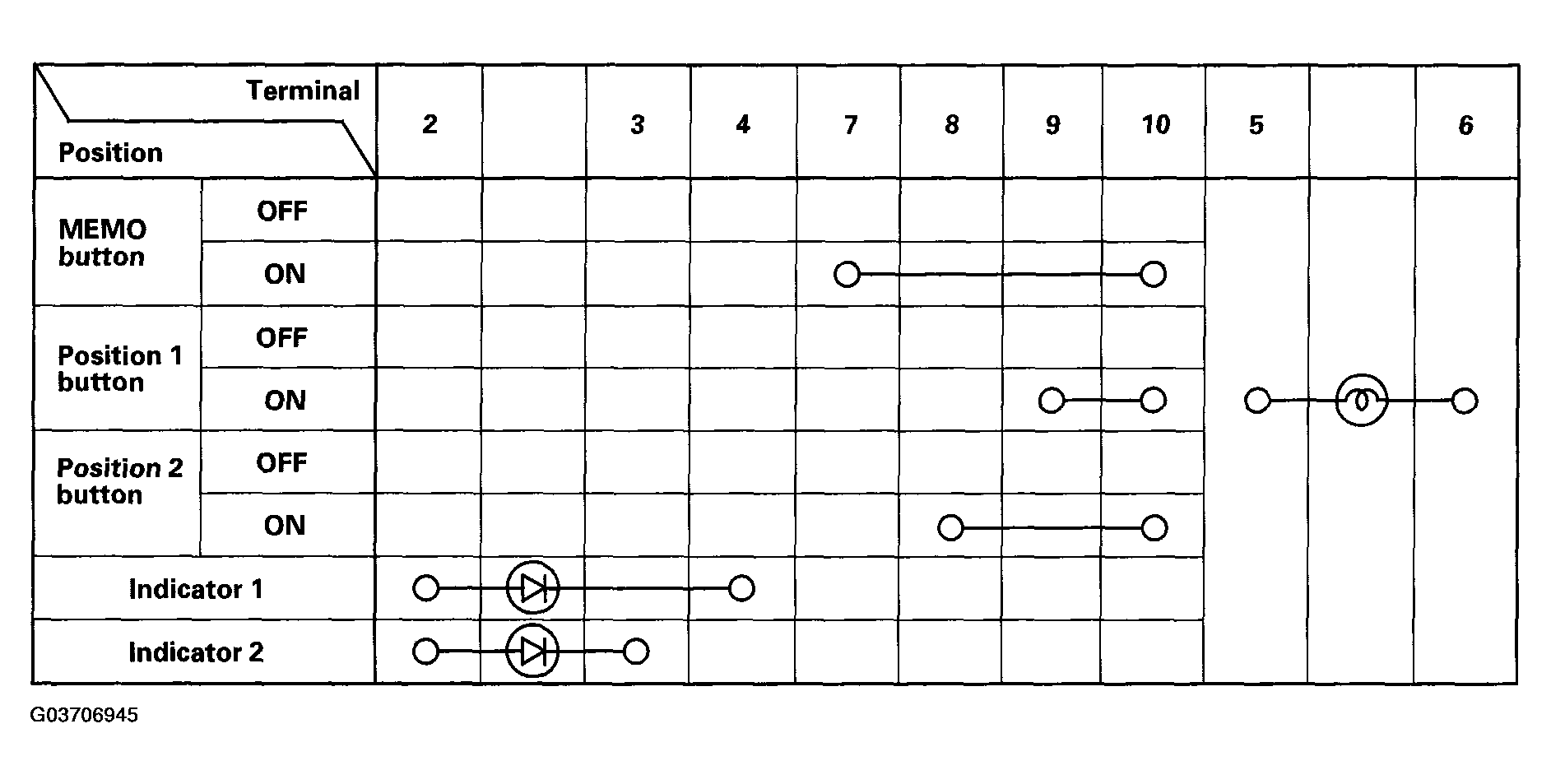

Fig 2: Checking Continuity Between Terminals In Each Switch Position Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the illumination bulb (B) or the switch.
