Multiplex Control Unit Input Test

Remove the driver's dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
Disconnect the under-dash fuse/relay box connectors C, E, F, J, K, O, P, Q, X and Y.
NOTE: All connectors are wire side of female terminals.

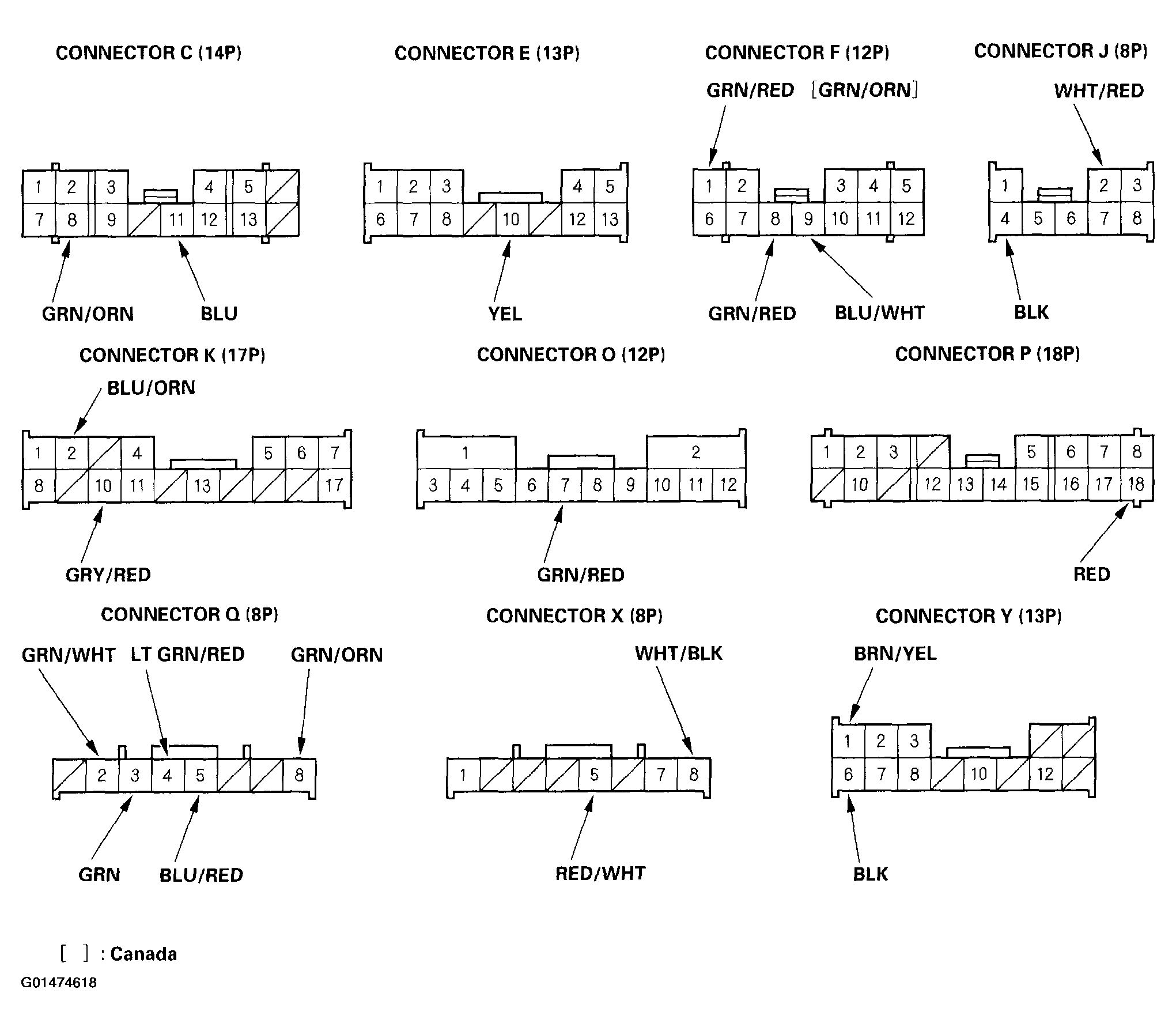

Fig 1: Disconnecting Under-Dash Fuse/Relay Box Connectors C, E, F, J, K, O, P, Q, X & Y
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 4.
Reconnect the connectors to the under-dash fuse/relay box, and make sure these input tests at the appropriate connectors on the under-dash fuse/relay box.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, the multiplex control unit must be faulty, replace the under-dash fuse/relay box assembly.

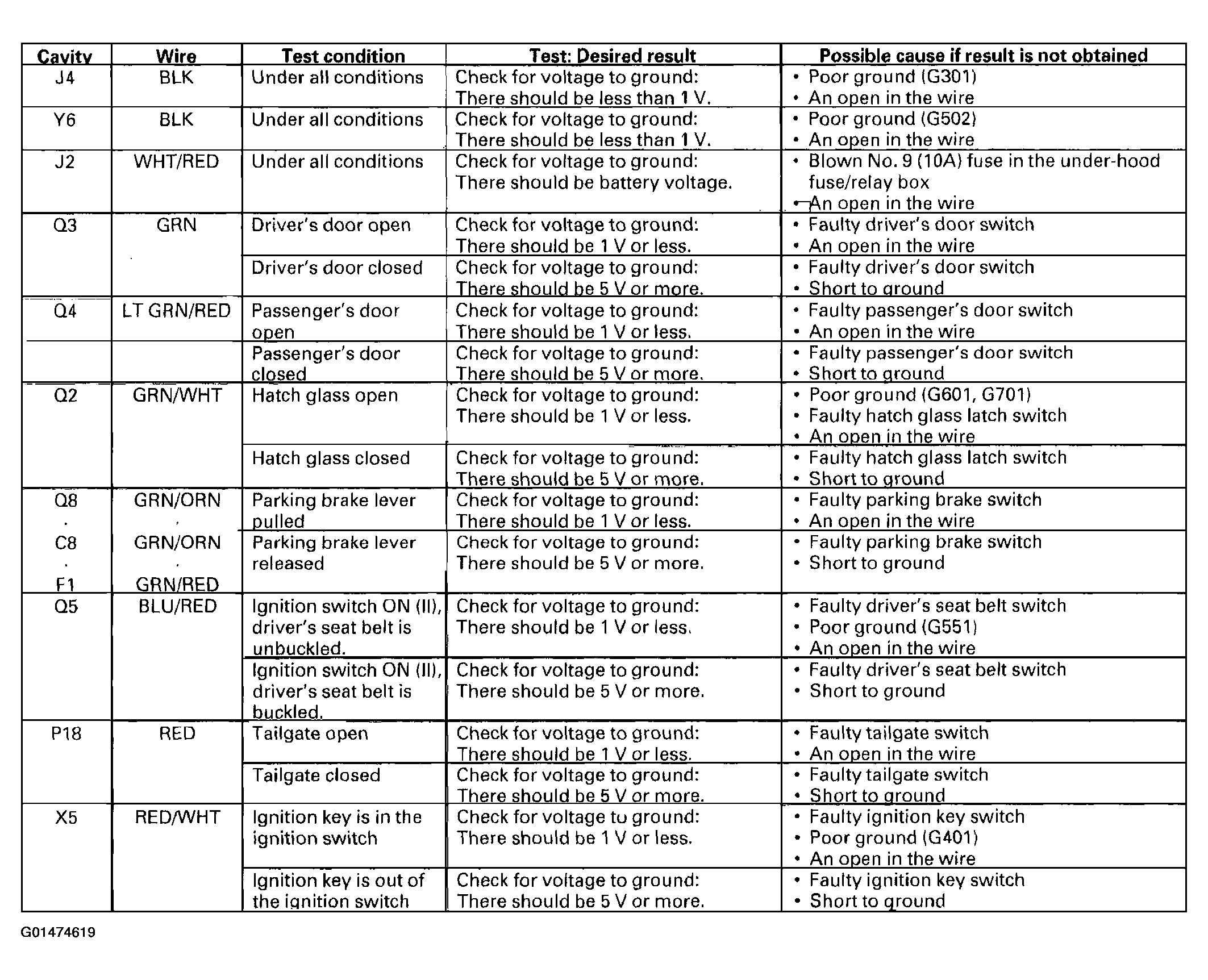

  Fig 2: Multiplex Control Unit Input Test (1 of 2)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

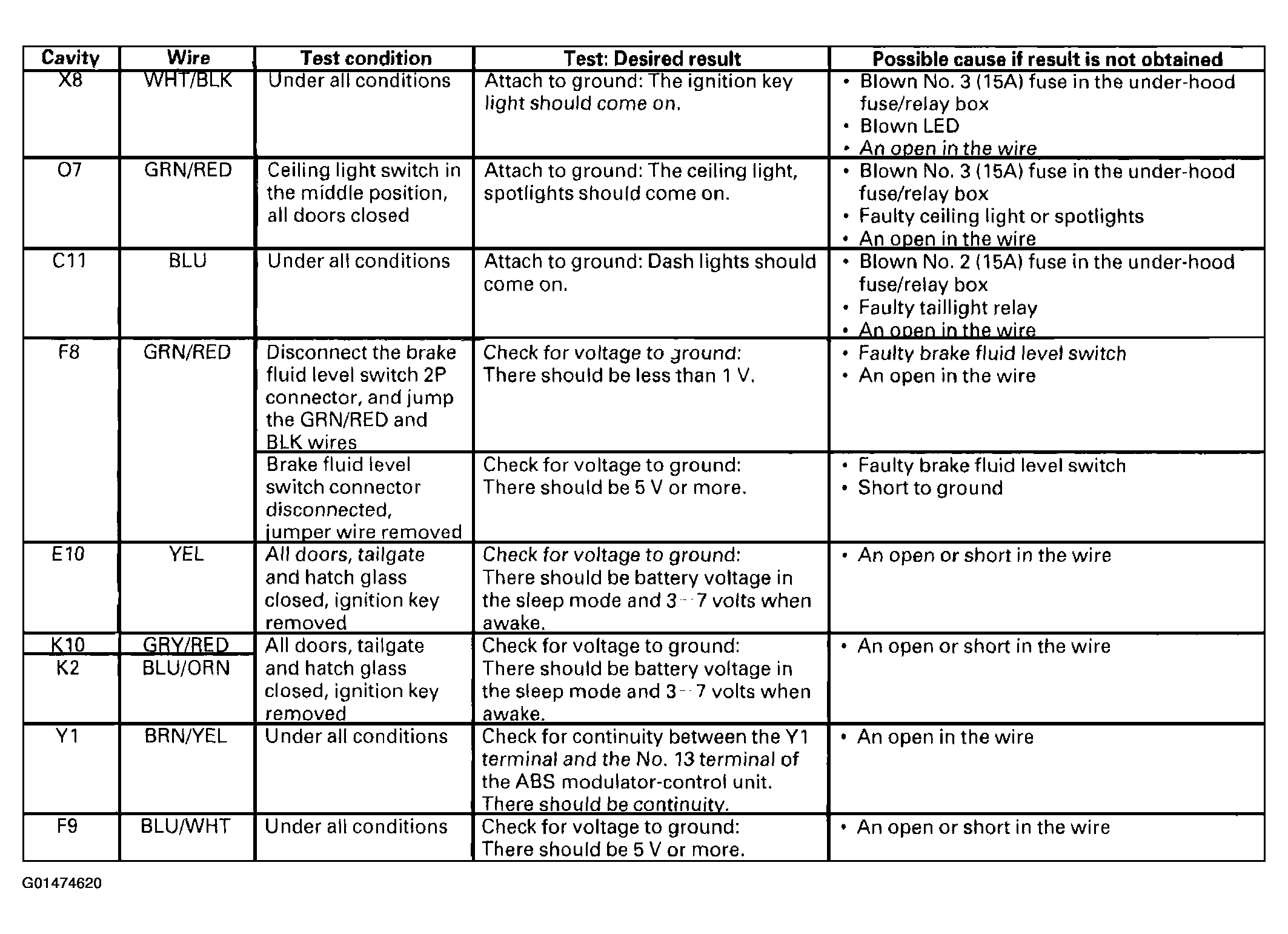

Fig 3: Multiplex Control Unit Input Test (2 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
