EVAP Canister Replacement

  1. Remove the cover (A).

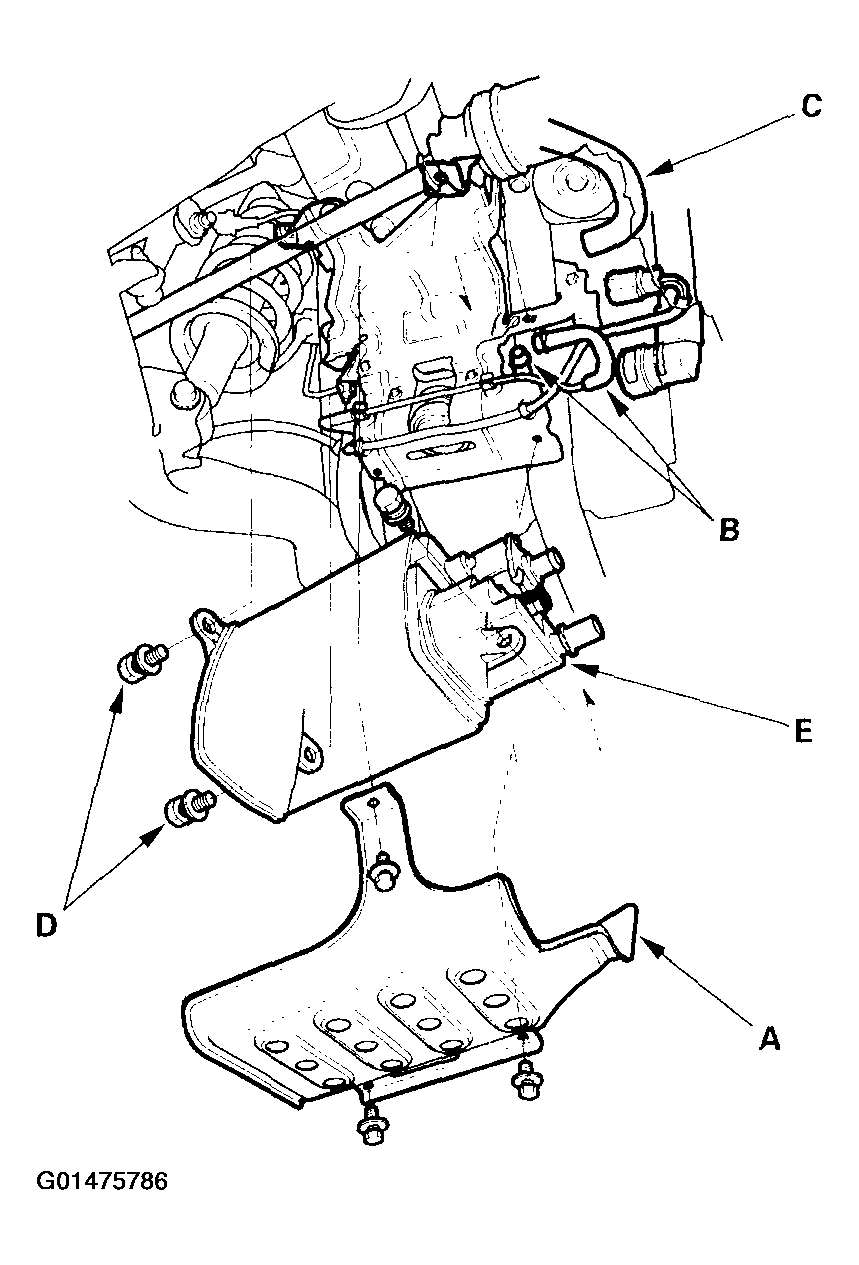

    Fig 1: Removing EVAP Canister Cover
    G01475786Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the vacuum hoses (B) and drain hose (C).
  3. Remove the EVAP canister (E).
  4. Install in the reverse order of removal.
