PCV Valve Replacement

  1. Unscrew the PCV valve (A), and remove it.

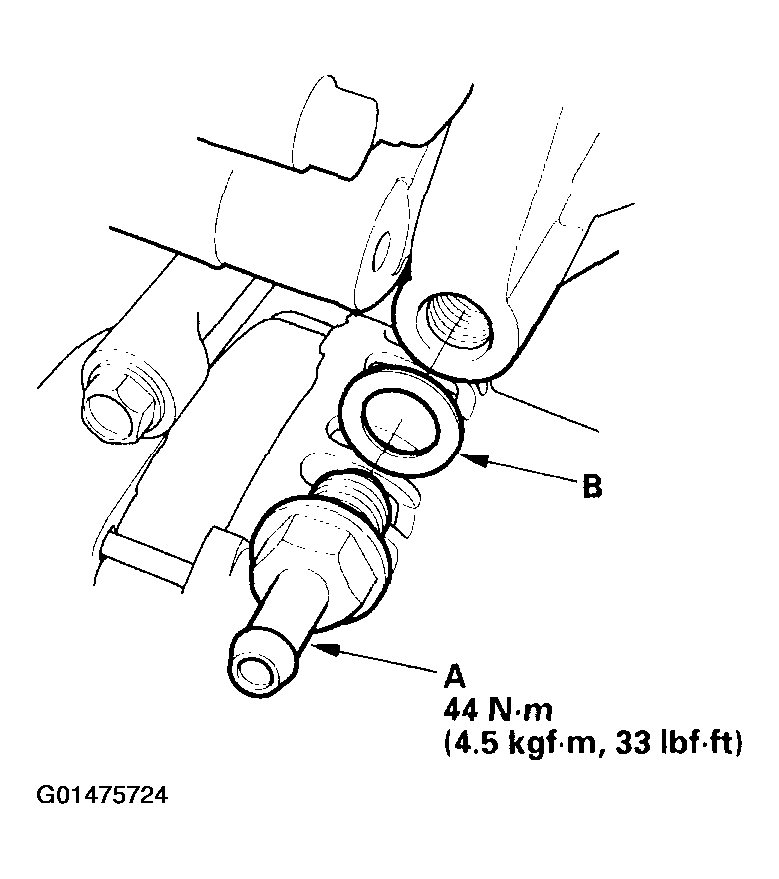

    Fig 1: Removing/Installing PCV Valve
    G01475724Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the valve in the reverse order of removal with a new washer (B).
