CMP Sensor A Replacement

NOTE: CMP sensor A is on the intake side of the cylinder head.

Remove the air cleaner (see AIR CLEANER ELEMENT REPLACEMENT ).
Disconnect the CMP sensor A 3P connector.
Remove CMP sensor A (A) from the intake camshaft side of the cylinder head.

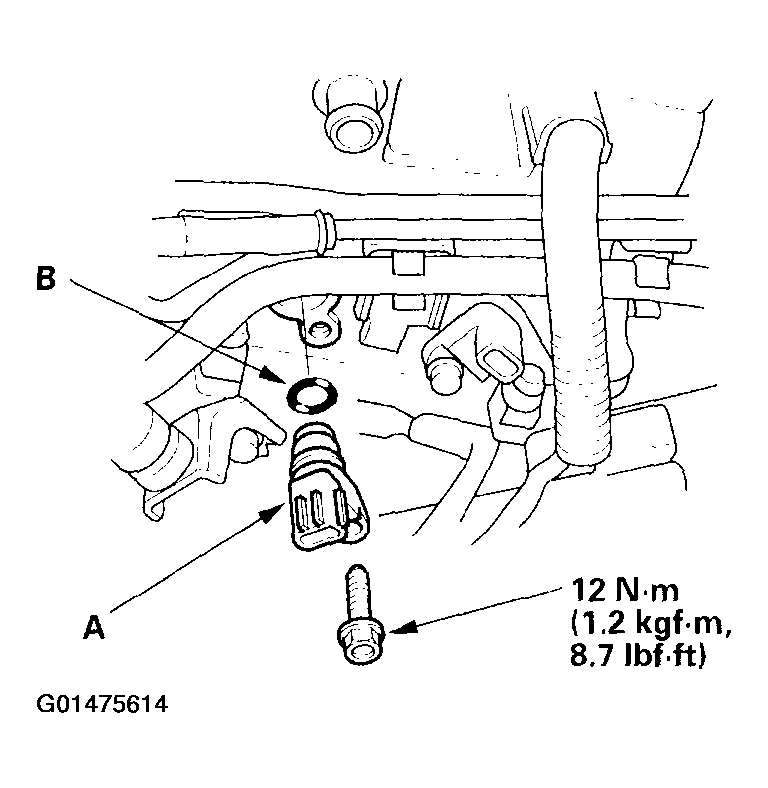

Fig 1: Removing CMP Sensor A From Intake Camshaft Side Of Cylinder Head
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the sensor in the reverse order of removal with a new O-ring (B).
