Throttle Cable Removal/Installation

Fully open the throttle valve, then remove the throttle cable (A) from the throttle link (B).

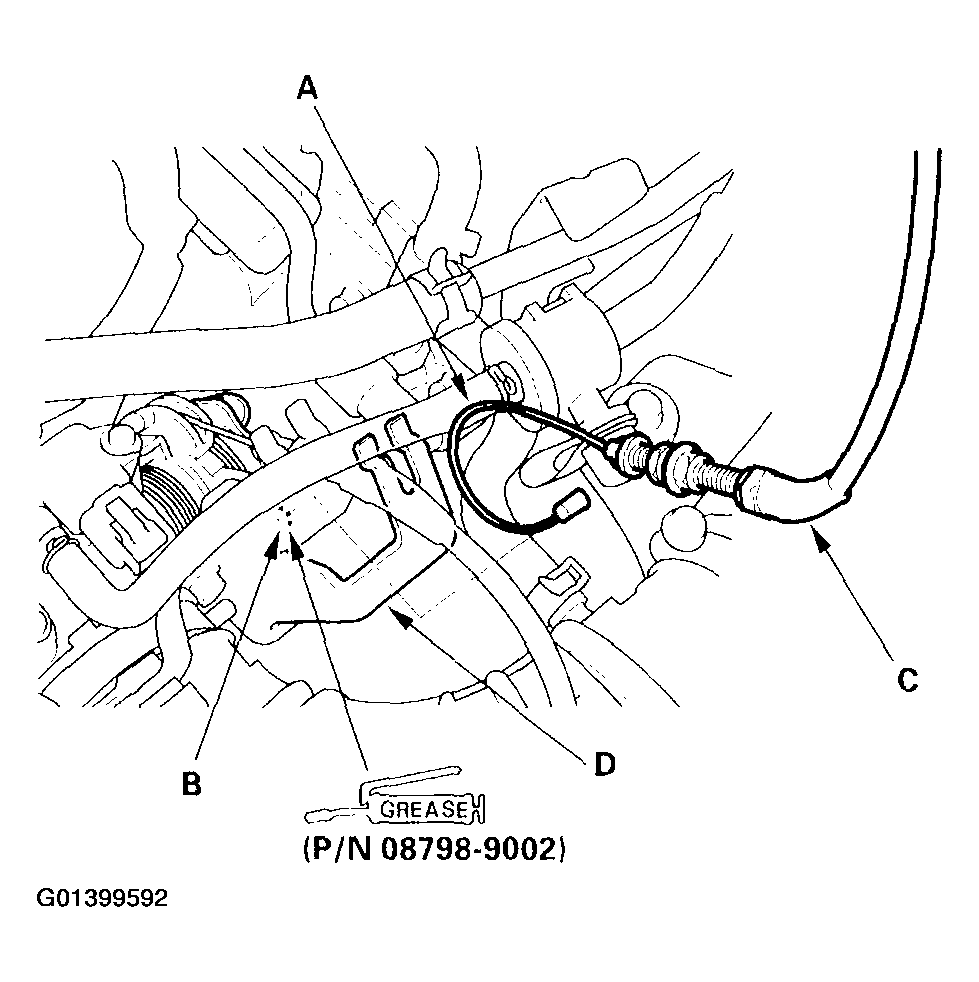

Fig 1: Removing The Throttle Cable From The Throttle Link
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the cable housing (C) from the cable bracket (D).
Remove the throttle cable (A) from the accelerator pedal (B).

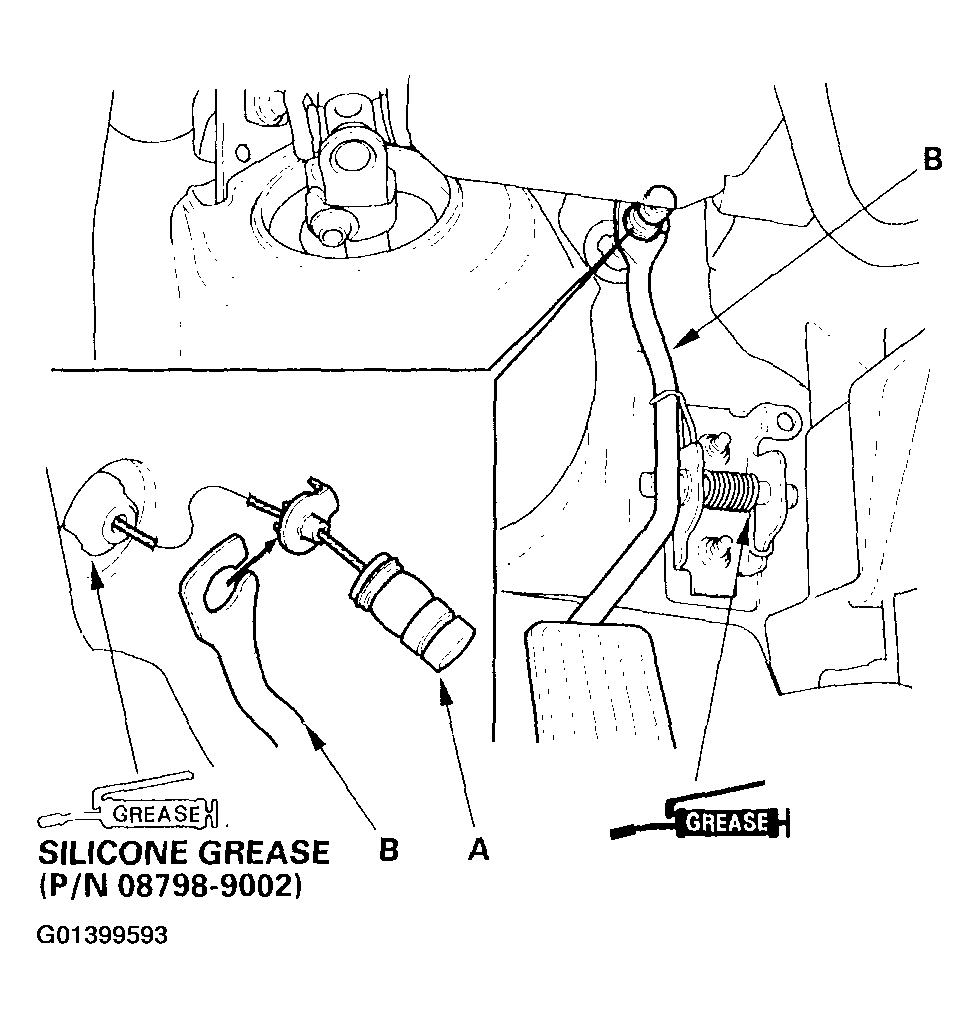

Fig 2: Removing The Throttle Cable From The Accelerator Pedal
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install in the reverse order of removal.
After installing, start the engine. Hold the engine at 3,000 rpm with no load (in neutral) until the radiator fan comes on, then let it idle.
Hold the cable, removing all slack from it.
Set the locknut on the cable bracket (A).
Turn the adjusting nut (B) so that its free play is 0 mm.

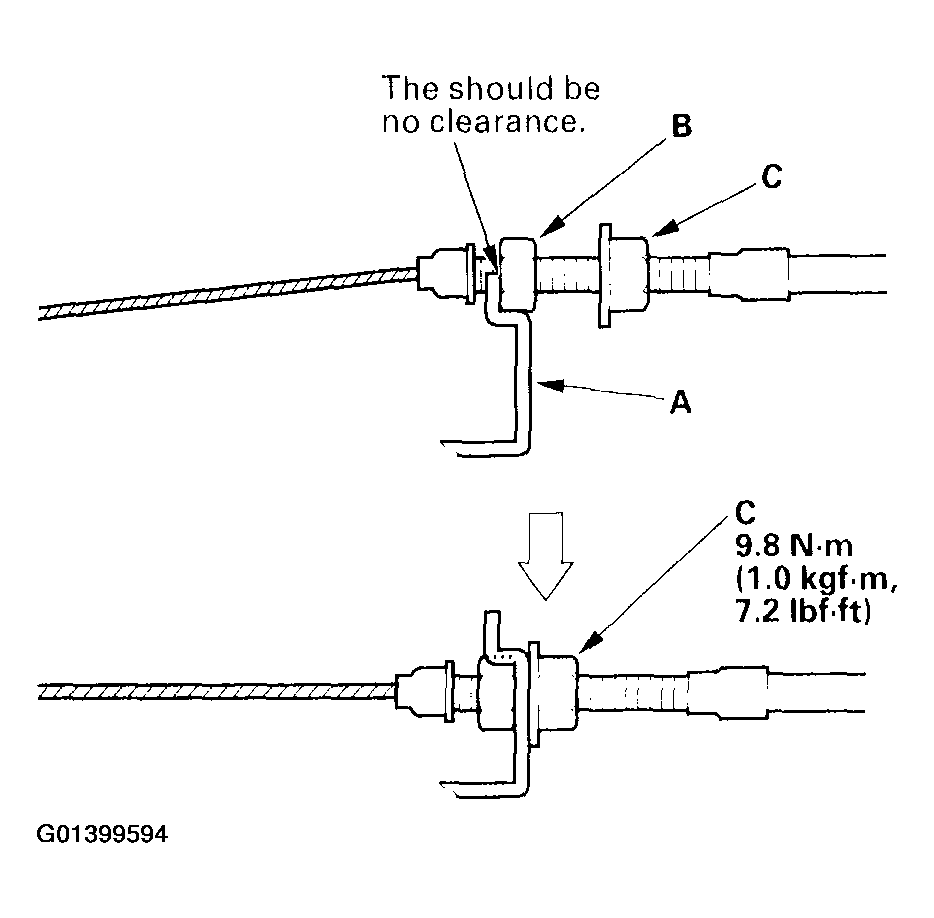

Fig 3: Setting The Locknut On The Cable Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Position the adjusting nut on the other side of the bracket (A), then tighten the locknut(C).
With the cable properly adjusted, check the throttle valve to be sure it opens fully when you push the accelerator pedal to the floor. Also check the throttle valve to be sure it returns to the idle position whenever you release the accelerator pedal.
