Fuse

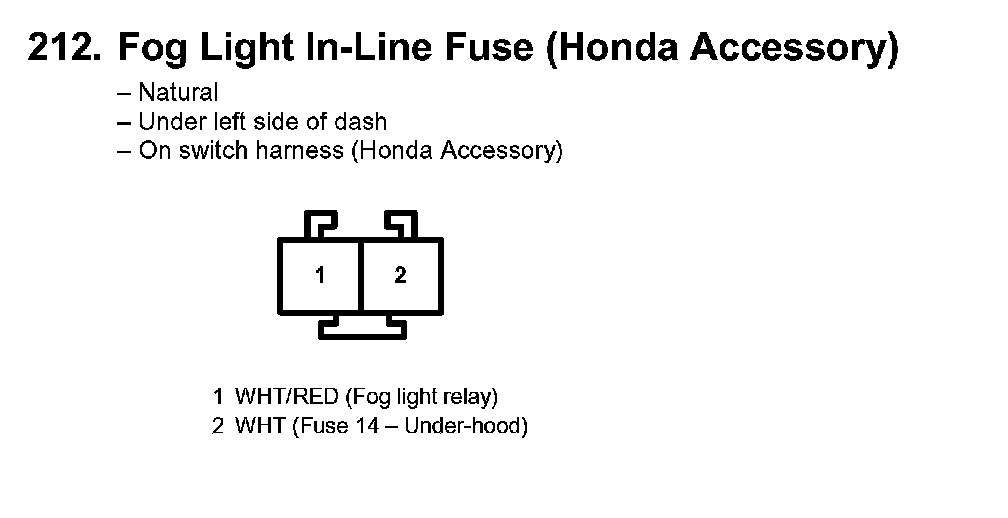

212. Fog Light In-Line Fuse (Honda Accessory):

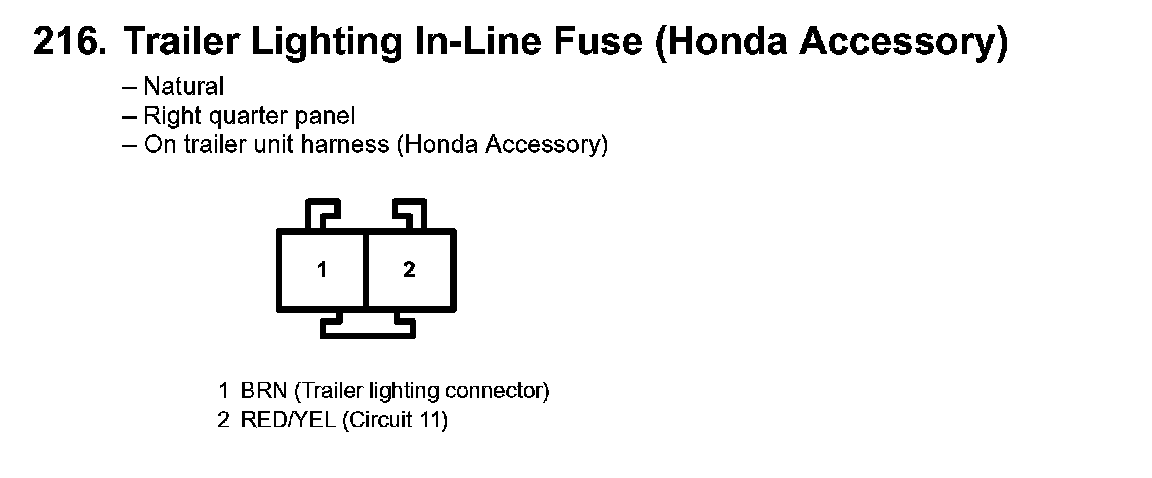

216. Trailer Lighting In-line Fuse (Honda Accessory):
