Relay Box

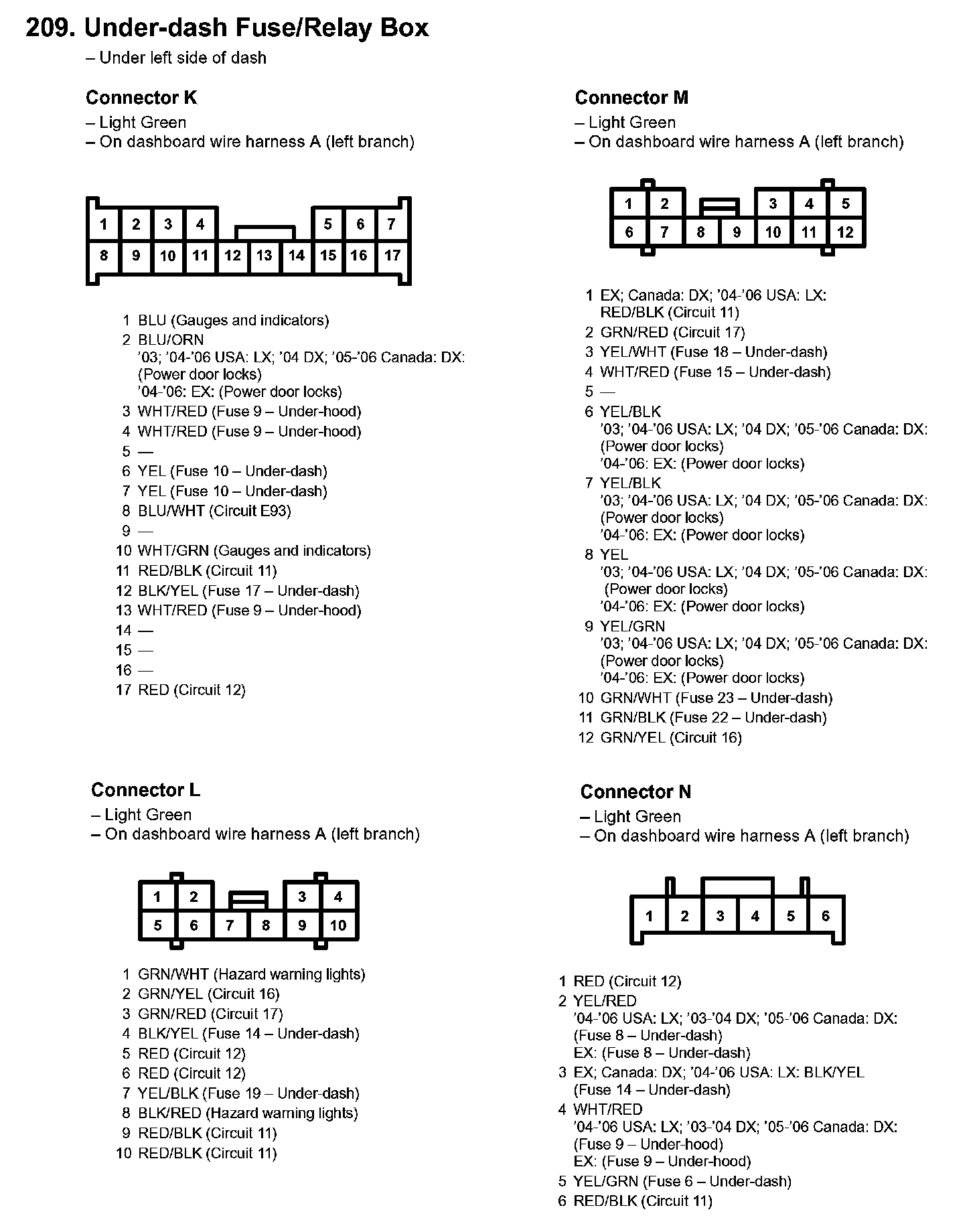

209. Under-dash Fuse/Relay Box:

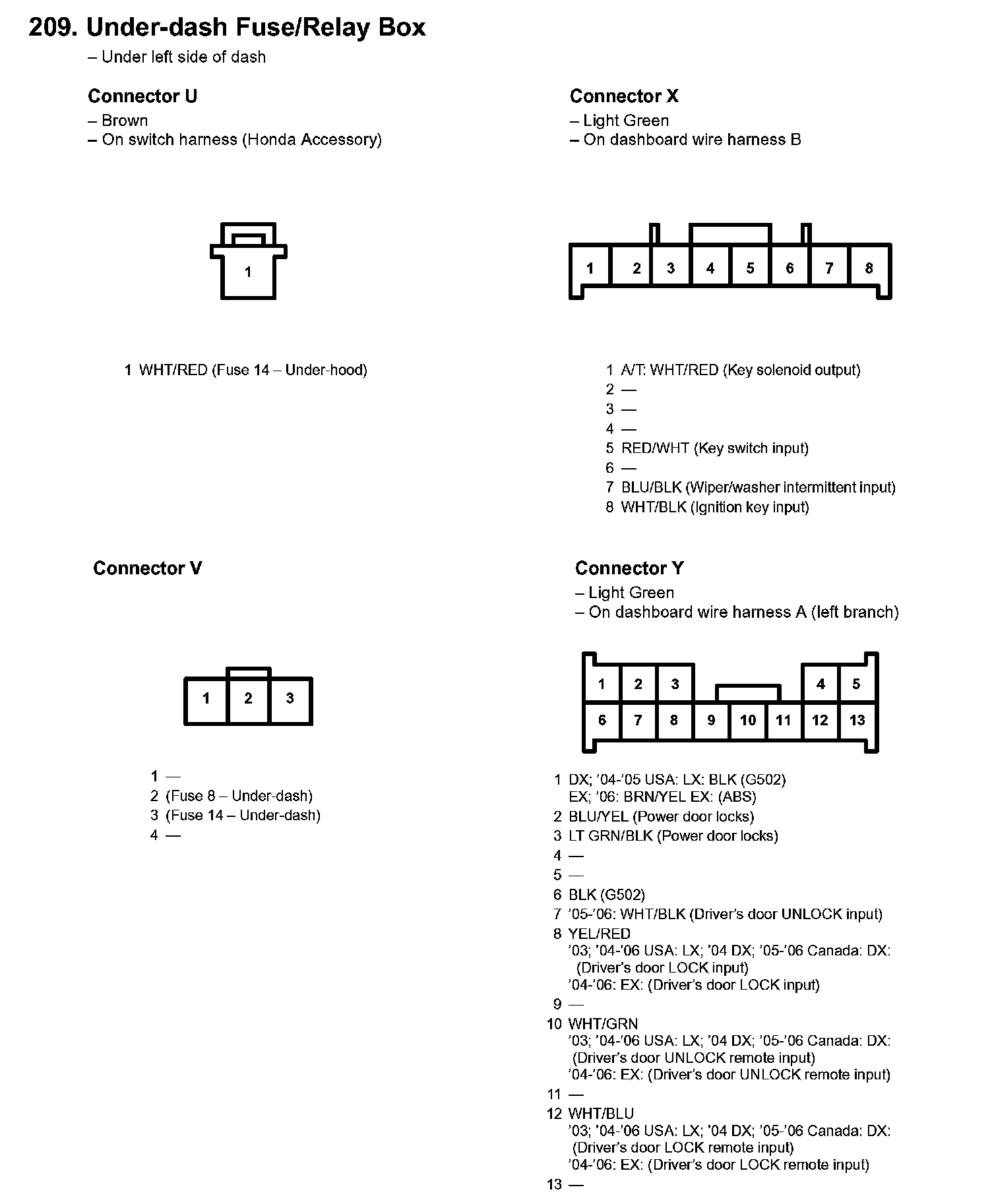

209. Under-dash Fuse/Relay Box:

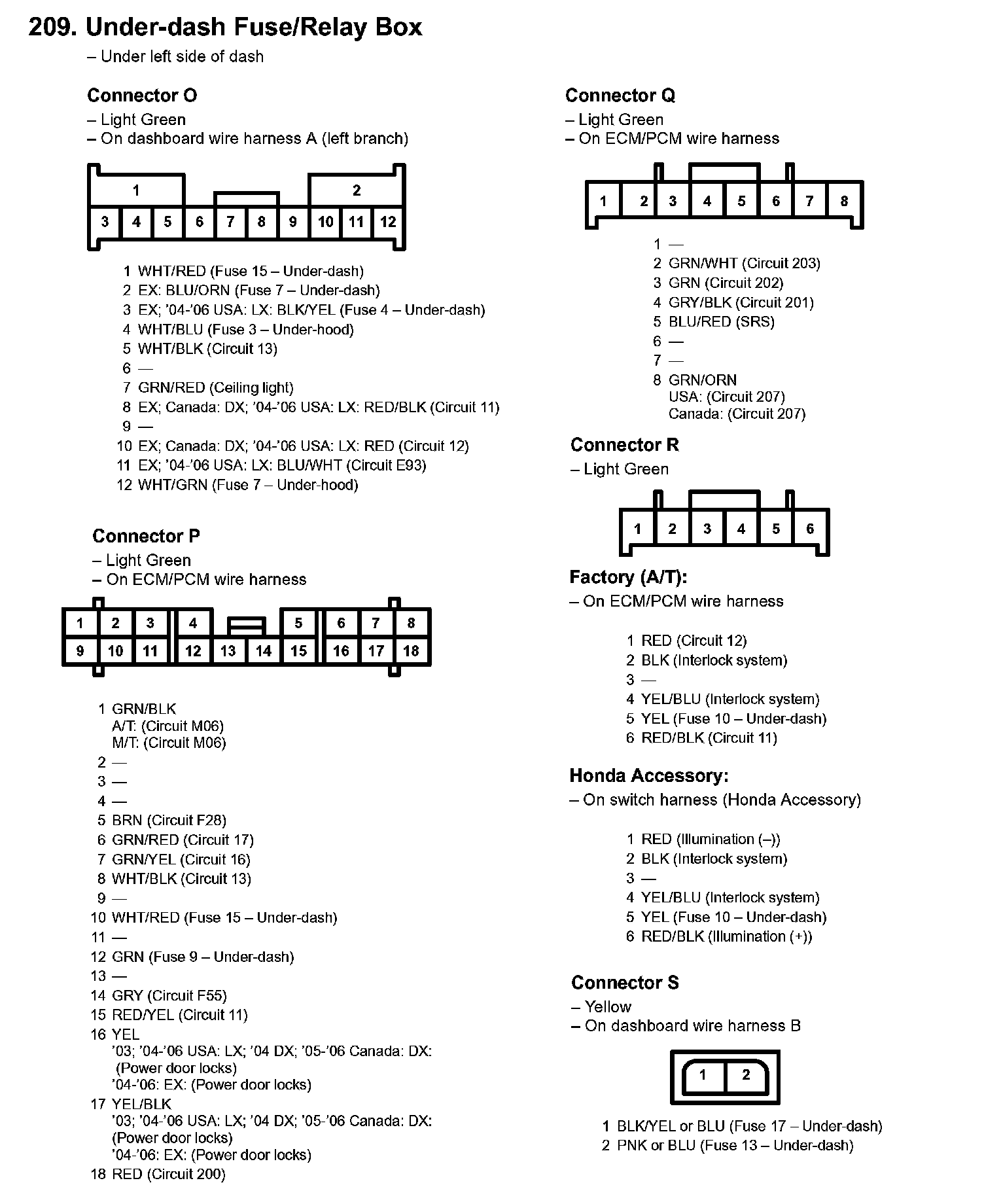

209. Under-dash Fuse/Relay Box:

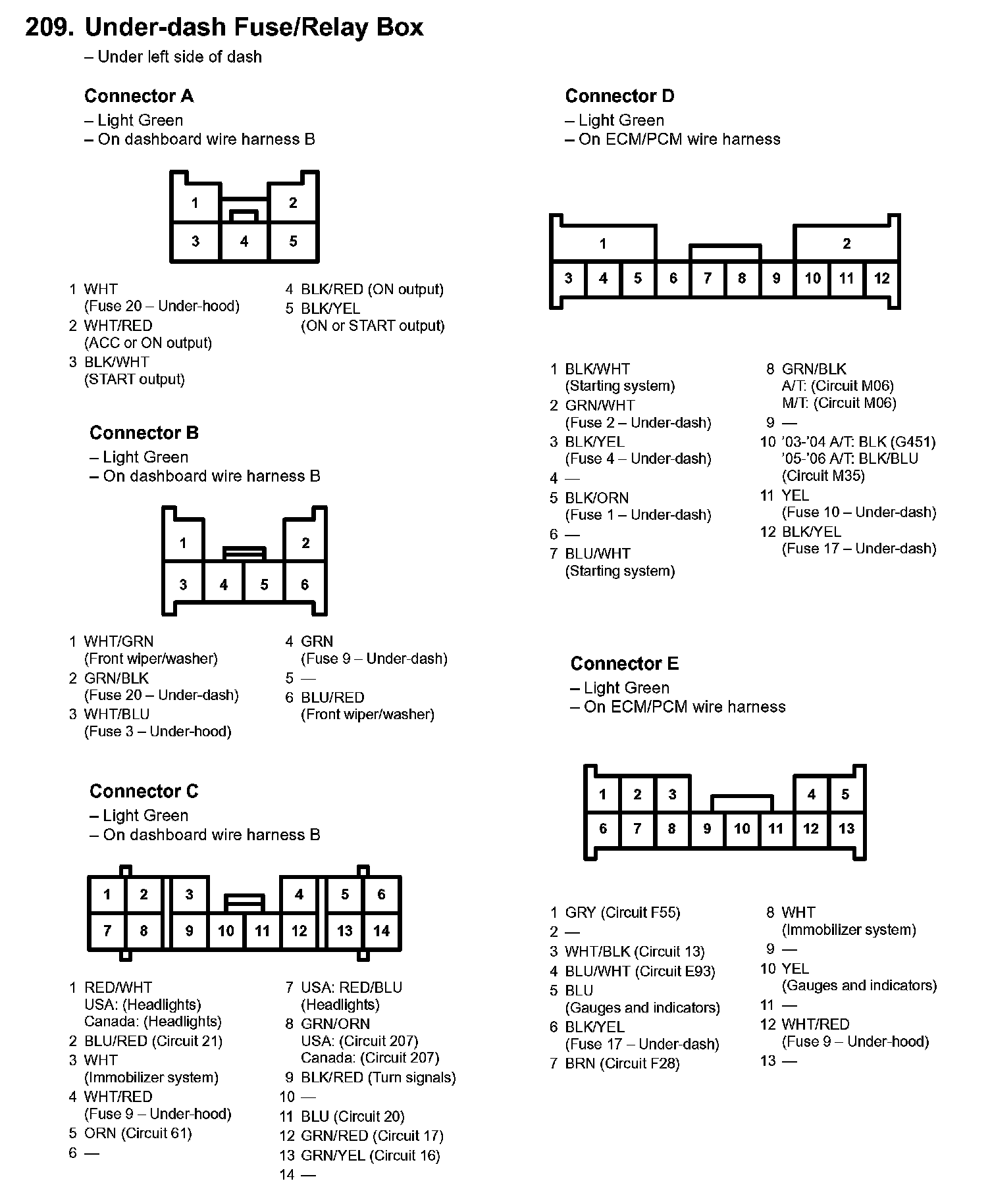

209. Under-dash Fuse/Relay Box:

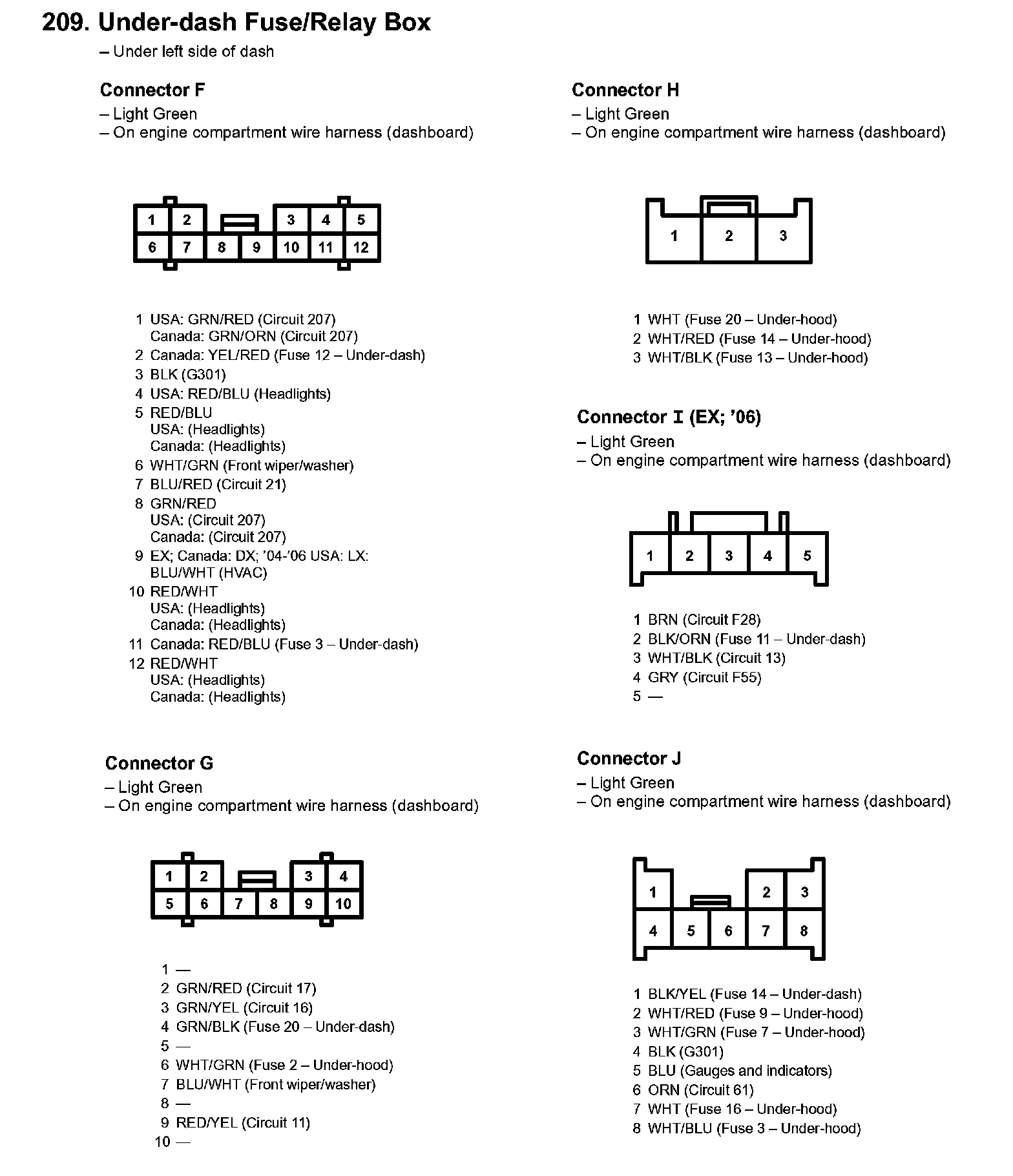

209. Under-dash Fuse/Relay Box:

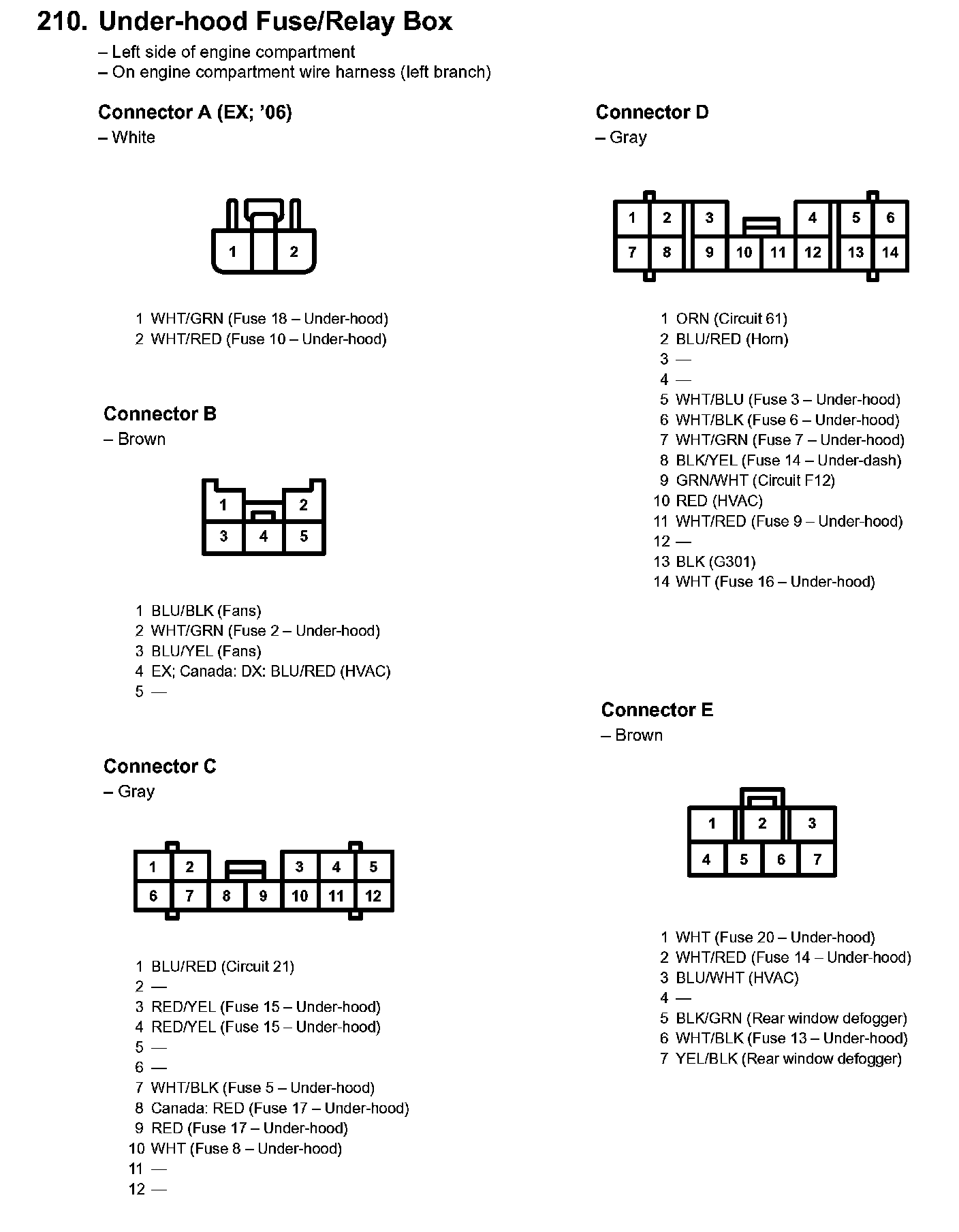

210. Under-hood Fuse/relay Box:
