Transmission Speed Sensor, A/T

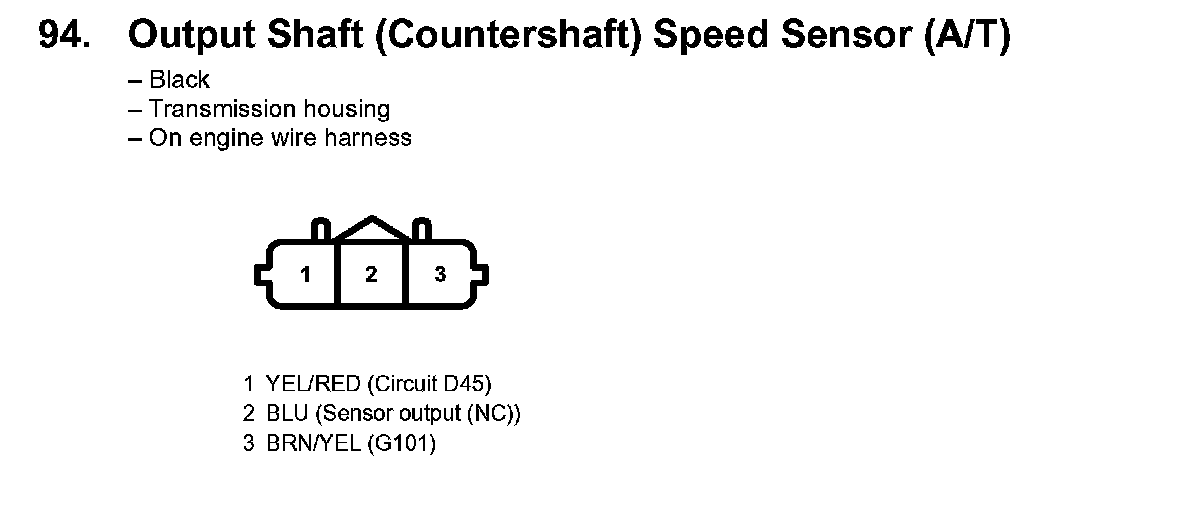

94. Output Shaft (Countershaft) Speed Sensor (A/T):
102. Input Shaft (Mainshaft) Speed Sensor (A/T):
