Wheel Speed Sensor

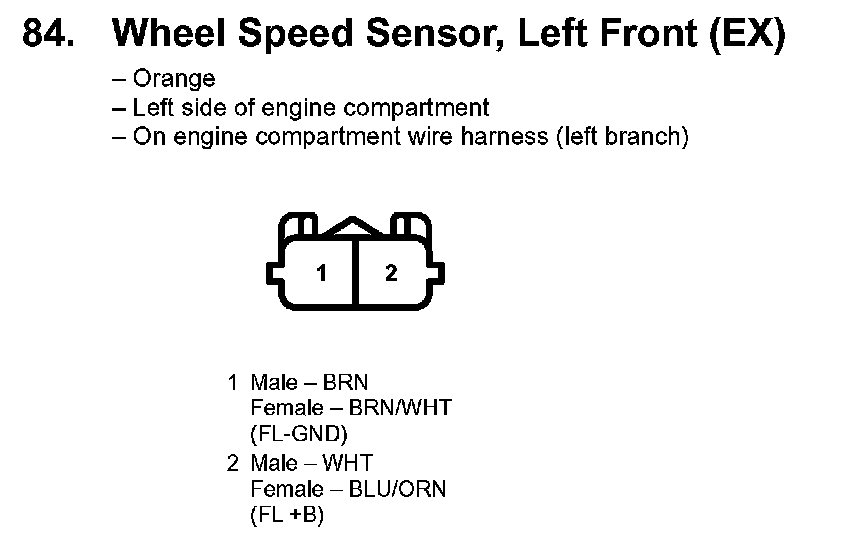

84. Wheel Speed Sensor, Left Front (EX):

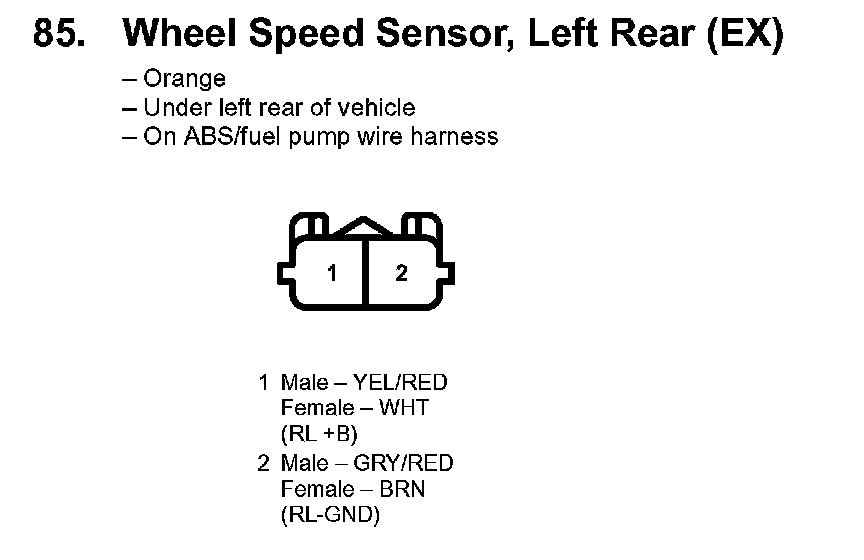

85. Wheel Speed Sensor, Left Rear (EX):

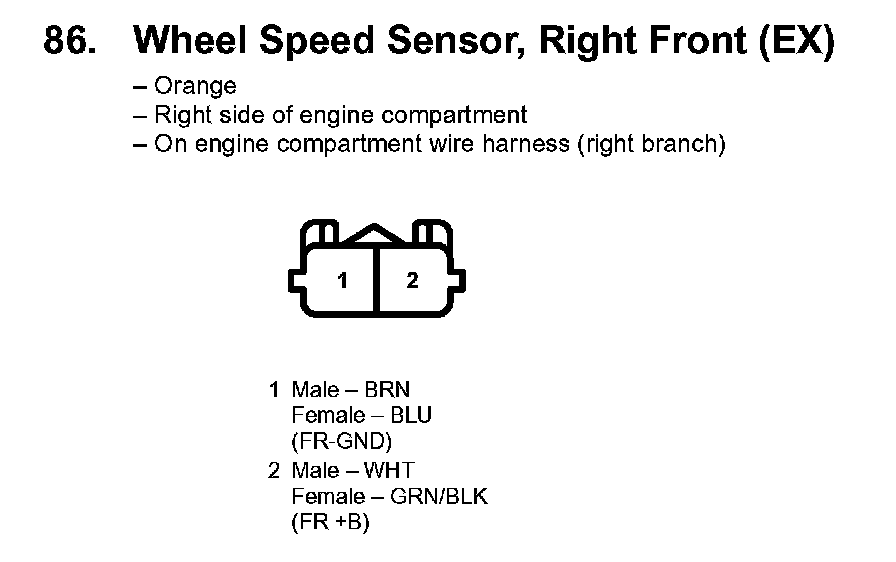

86. Wheel Speed Sensor, Right Front (EX):

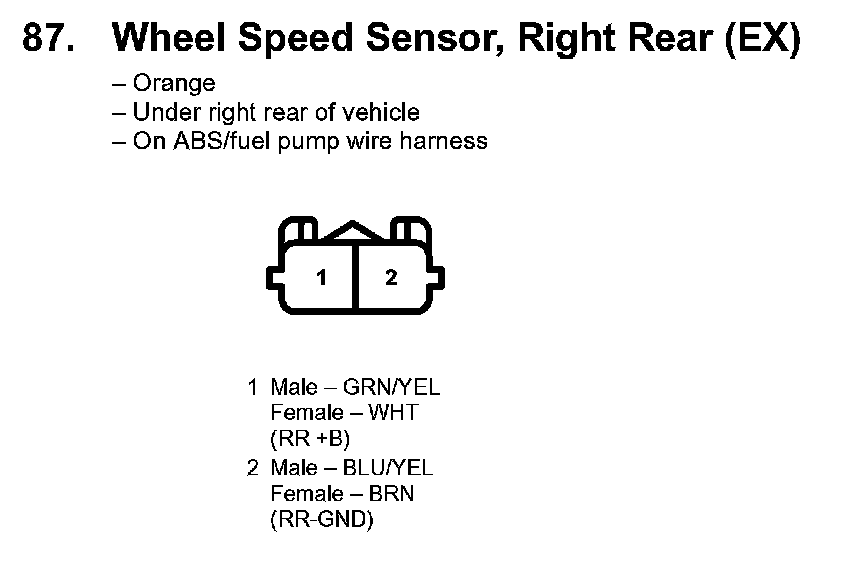

87. Wheel Speed Sensor, Right Rear (EX):
