CMP Sensor A Replacement

CMP Sensor A Replacement

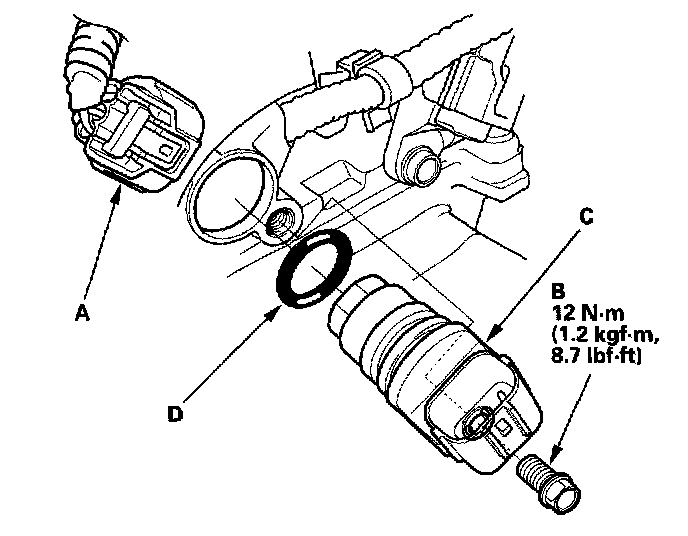

1. Remove the air cleaner.




2. Disconnect the CMP sensor A connector (A).
3. Remove the bolt (B).
4. Remove CMP sensor A (C).
5. Install the sensor in the reverse order of removal with a new O-ring (D).
