CMP Sensor B Replacement

CMP Sensor B Replacement

1. Remove the air cleaner.
2. Remove the EVAP canister purge valve.

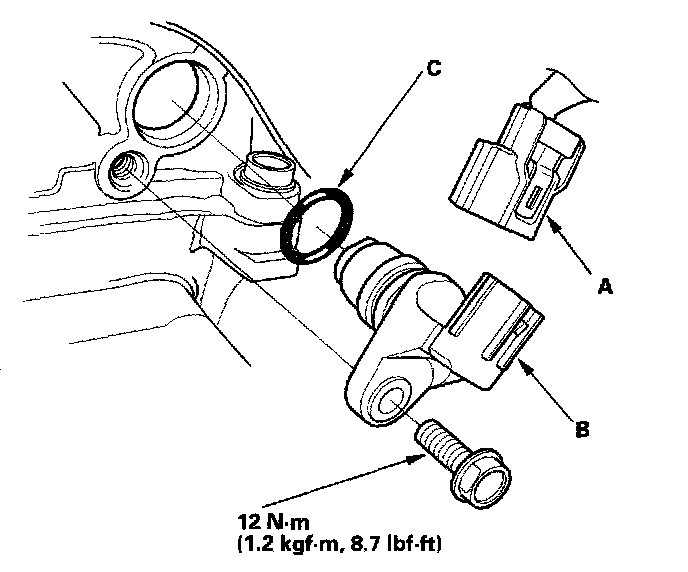

3. Disconnect the CMP sensor B connector (A).
4. Remove CMP sensor B (B).
5. Install the sensor in the reverse order of removal with a new O-ring (C).
