Crankshaft Position Sensor: Service and Repair

CKP Sensor Replacement

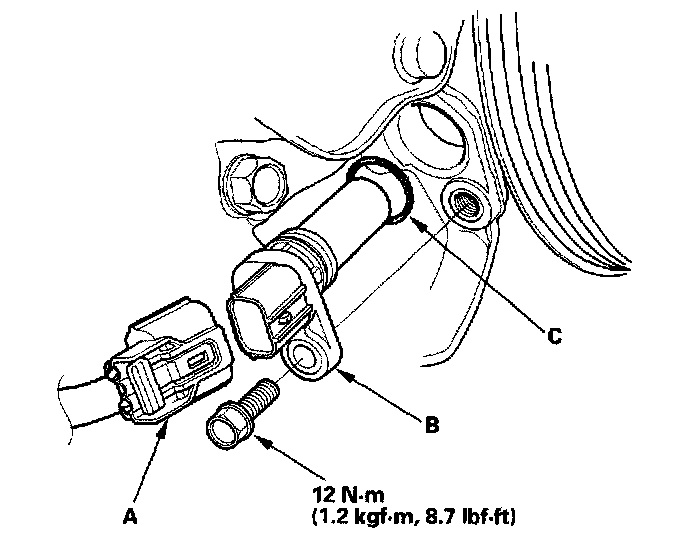

1. Disconnect the CKP sensor (A).
2. Remove the CKP sensor (B).
3. Install the sensor in the reverse order of removal with a new O-ring (C).
