A/F Sensor Replacement

A/F Sensor Replacement

Special Tools Required
O2 sensor wrench, Snap-on YA8875, SP Tools 93750, or equivalent, commercially available

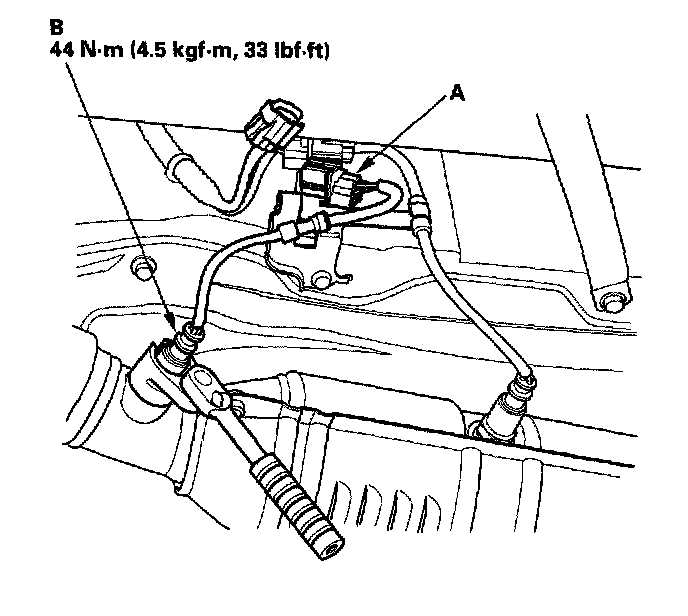

1. Disconnect the A/F sensor 4P connector (A), then remove the A/F sensor (B).
2. Install the A/F sensor in the reverse order of removal.
