ECM/PCM Electrical Connections

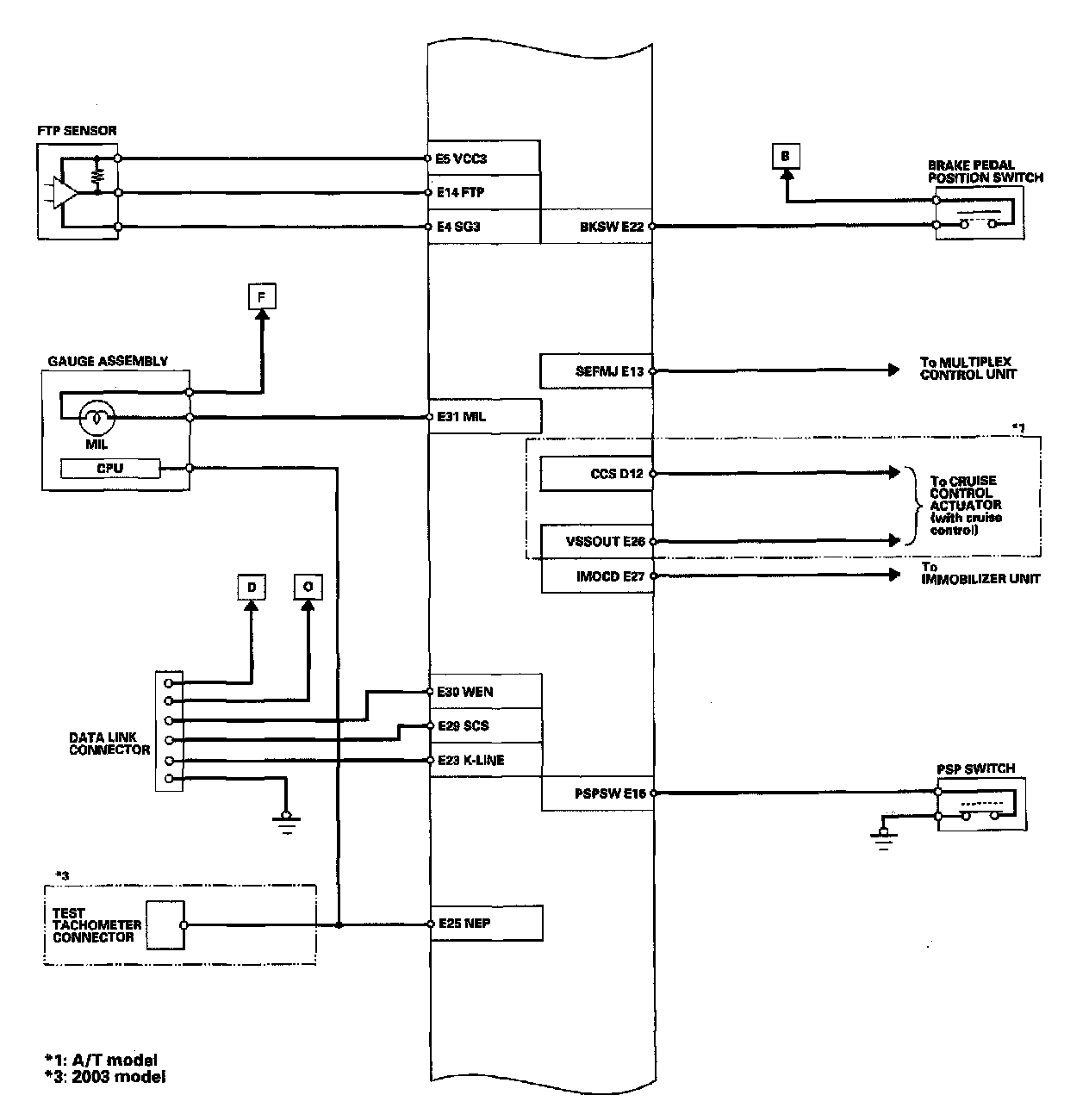

ECM/PCM Electrical Connections Part 1:

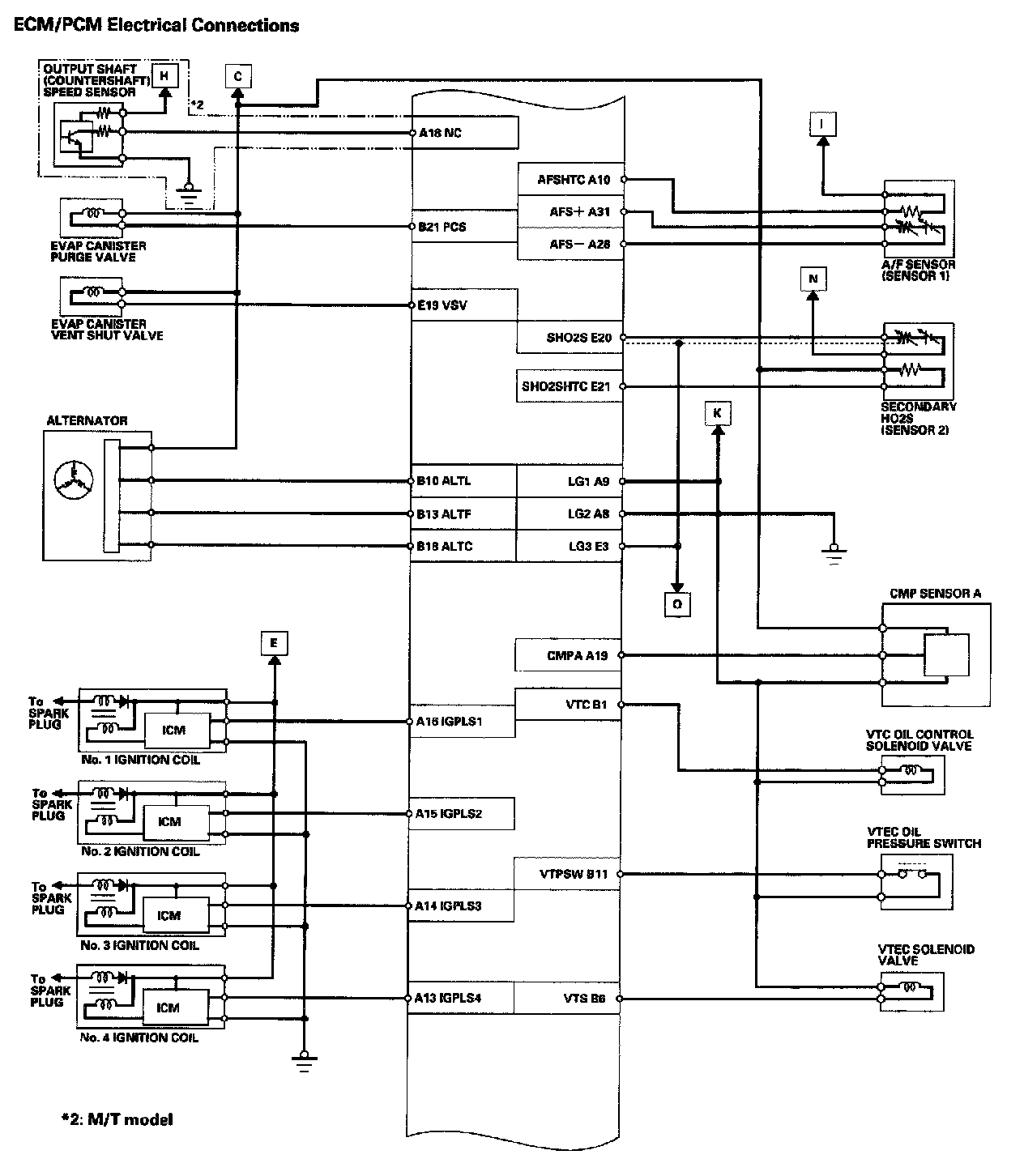

ECM/PCM Electrical Connections Part 2:

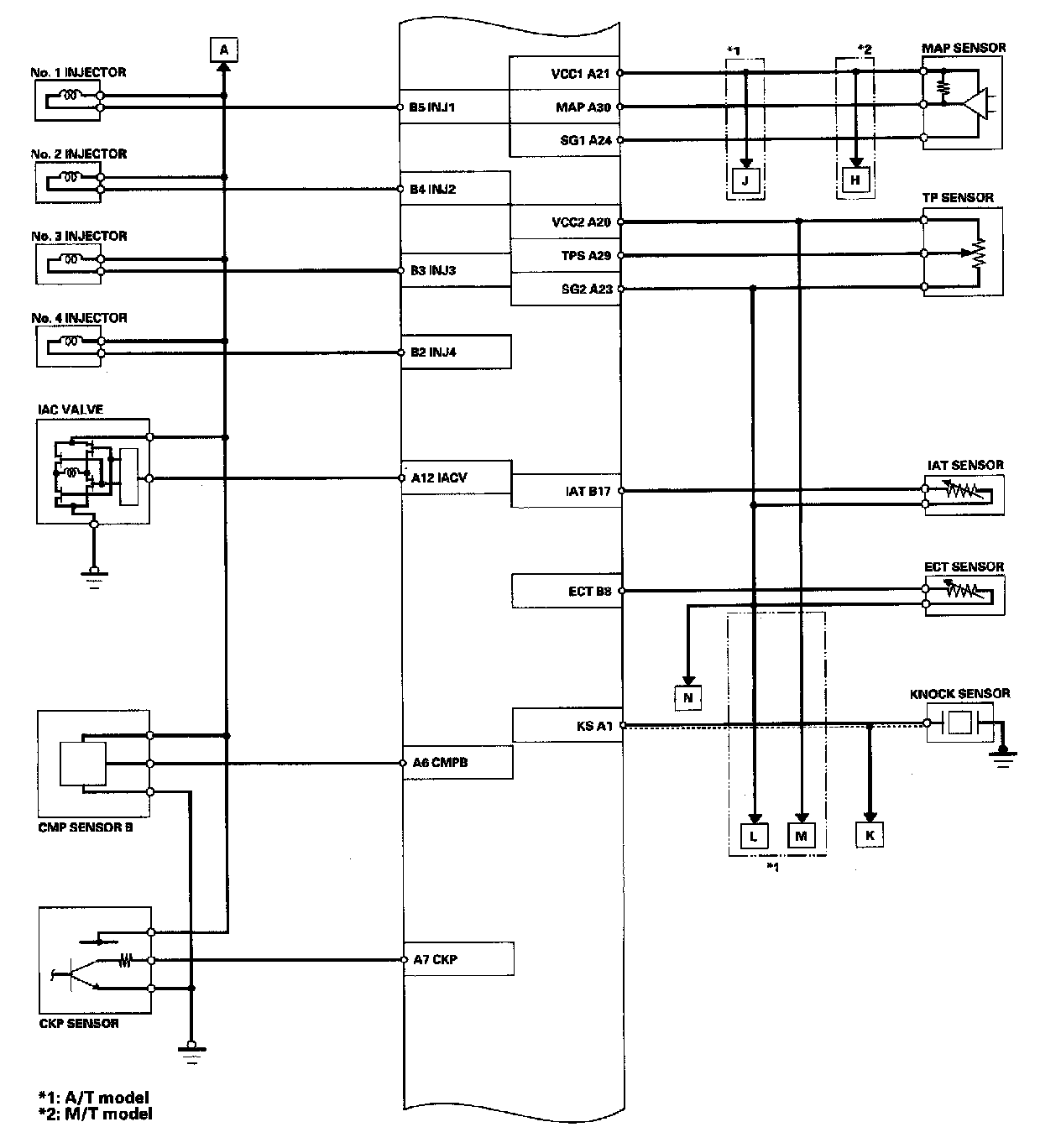

ECM/PCM Electrical Connections Part 3:

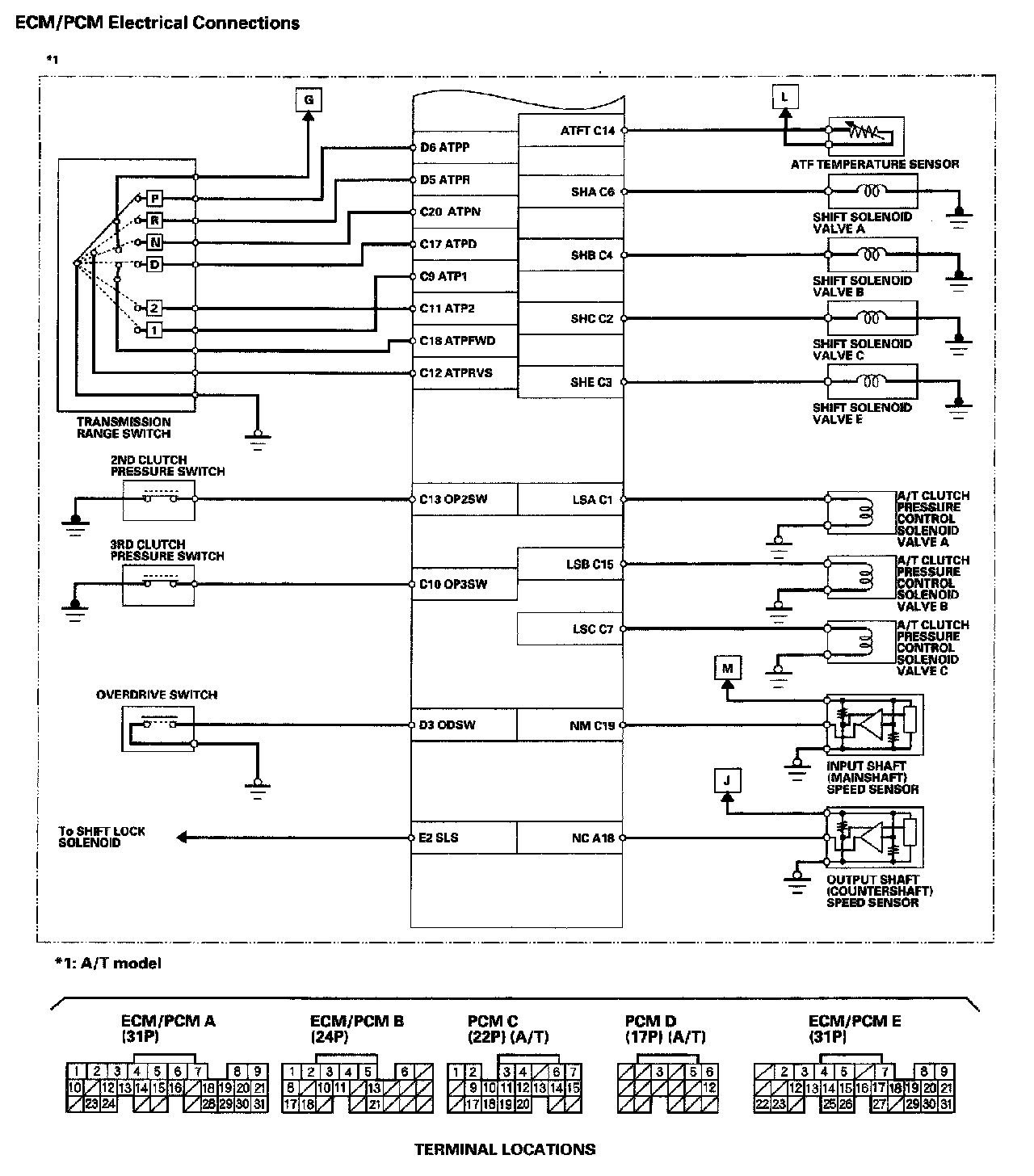

ECM/PCM Electrical Connections Part 4:

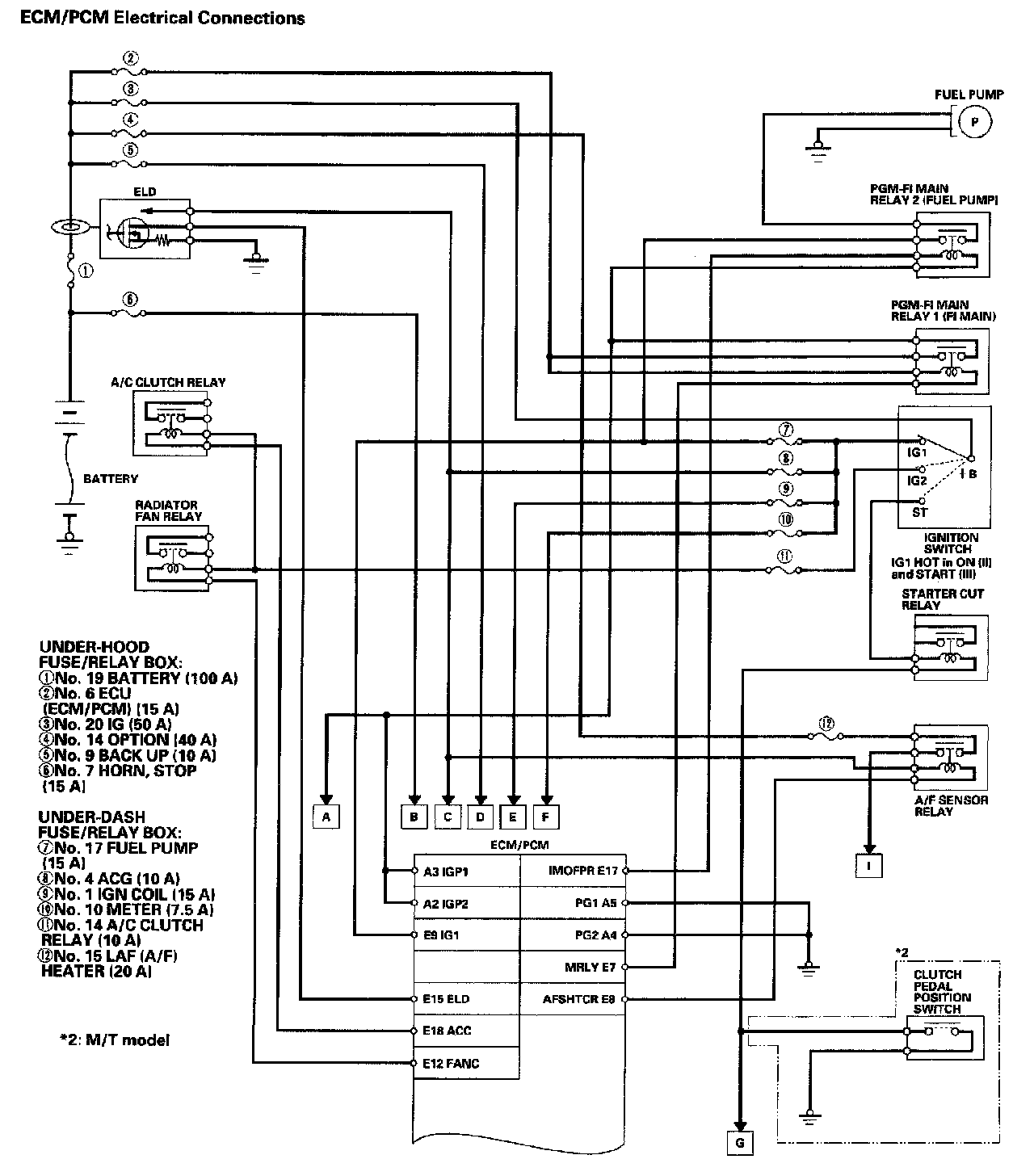

ECM/PCM Electrical Connections Part 5:
